Outdoor Aluminum Framed Clear Span Tent Building hard sandwich wall
Outdoor Aluminum Framed Clear Span Tent Building hard sandwich wall
Outdoor Aluminum Framed Clear Span Tent Building hard sandwich wall
Outdoor Aluminum Framed Clear Span Tent Building hard sandwich wall
Outdoor Aluminum Framed Clear Span Tent Building hard sandwich wall
Outdoor Aluminum Framed Clear Span Tent Building hard sandwich wall
Outdoor Aluminum Framed Clear Span Tent Building hard sandwich wall
Outdoor Aluminum Framed Clear Span Tent Building hard sandwich wall
Specifications
Brand Name :
Yashang
Model Number :
SET12
Certification :
ISO, CE, TUV, COC, SONCAP etc.
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, L/C, West Union, MoneyGram
Supply Ability :
5000~10000sqm per month
Packaging Details :
membrane film, PVC bags, steel cages
Delivery Time :
20 working days
Frame :
6061/T6 Hard Extruded Aluminum Alloy
Cover :
850gsm UV Resistant PVC Fabric
Door :
Sliding door
Wall :
Hard sandwich wall
Tent Size :
35 x 75M
Application :
Olympic sports
Description

Outdoor Aluminum Framed Clear Span Tent Building hard sandwich wall

There are sevaral wall options available to go with our aluminum structure tents: Fabric wall, Glass wall, ABS wall, Corrugated steel wall, Sandwich wall. Generally speaking, you need to take some factors into consideration, such as the local environment, the expected service life, the moving frequency, etc. At Yashang, you can custom an outdoor frame tent with aluminum framework and roof fabric cover only without any wall. You can also combine different wall options in the same tent structure. In this event tent project, we use sandwich wall to do the effective photoes which are sent to our customer.

Please contact with us directly to learn about the detailed specification of different tent projects, because the data in the form may not be updated in time.

Tent Size: 35m x 75m Tent Materials: Hard extruded aluminum alloy (framework)
Span Width: 35m Polyester textile fabric cover (top and wall)
Side Height: 4m Galvanized steel (connecting parts)
Top Height: 10.4m Tent Configurations: Aluminum framework
Bay Distance: 5m Fabric roof cover
Longest Part: 11.6m Hard sandwich wall
Roof Pitch: 18° Hard sliding door
Main Profile: 300 x 120 x 5mm Decorative lining system
Gable Post Profile: 203 x 112 x 4mm/168x88x3mm Energy-saving lighting system
Purlin Profile: 80 x 80 x 2mm Tent Packaging: Membrane film for long aluminum parts
Hang Tube Profile: 100 x 80 x 2mm PVC bags for fabric parts
Snow Load: 0.15kN/m² Steel cages for steel parts
Wind Load: 0.5kN/m² Tent Fixing Solution: Expansion screws for concrete ground (standard)
Tent Gross Weight: TBC Steel peg nails for soft grass/sand land (optional)
Tent Total Volume: TBC Load Plate for undamagable ground (optional)
Setup Time: 8 people 3 to 4 days Installation Support: Installation instructional manual & video
Tent HS code: 6306220090 On-site installation guide
Tent Lifespan: Aluminum part ≥ 25~30 years Factory installation training
PVC fabri ≥ 5~8years Free Tools Configured: Y-pole, Spanner, Ropes, Hammers, Ladders

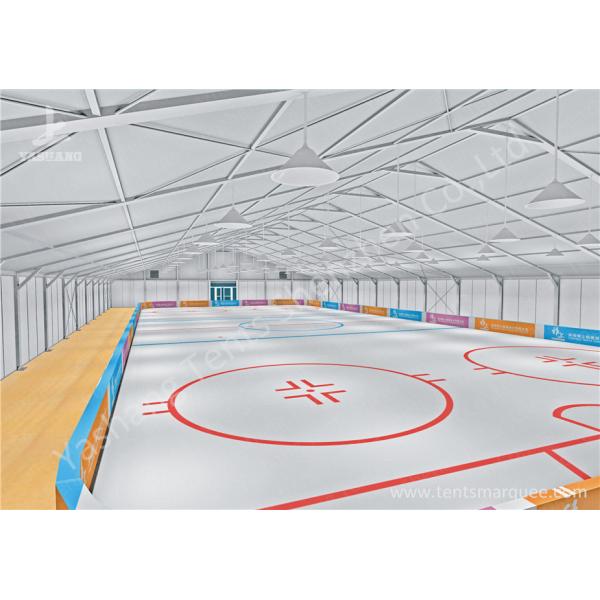

The lighting system is included in this sport event tent project. The sandwich wall is hard and sturdy which has a much longer lifepan than the fabric wall.
Outdoor Aluminum Framed Clear Span Tent Building hard sandwich wall

The logo can be designed on the triangle fabric, roof fabric or the wall fabric. It all depends on your favorites.

Outdoor Aluminum Framed Clear Span Tent Building hard sandwich wall
What do you think of this 35x75m anodized aluminum alloy framed tent with sandwich wall? If you like it, contact with us in advance.
