Terex TR100 coal truck 15337187 planetary gear box
Terex TR100 coal truck 15337187 planetary gear box
Specifications
Brand Name :
TEREX
Model Number :
TR100
Certification :
ISO9001:2008
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD$10000~$50000
Payment Terms :
Western Union, T/T, L/C, D/P
Supply Ability :
10 setsper month
Delivery Time :
10 working days
Packaging Details :
Well packed ,we also can do as your request
Application :
TEREX TR100 rigid dumper
Terex OEM NO. :
15337187
Warranty :
12 months
Description

TEREX PLANETARY SPEED REDUCER 15337187

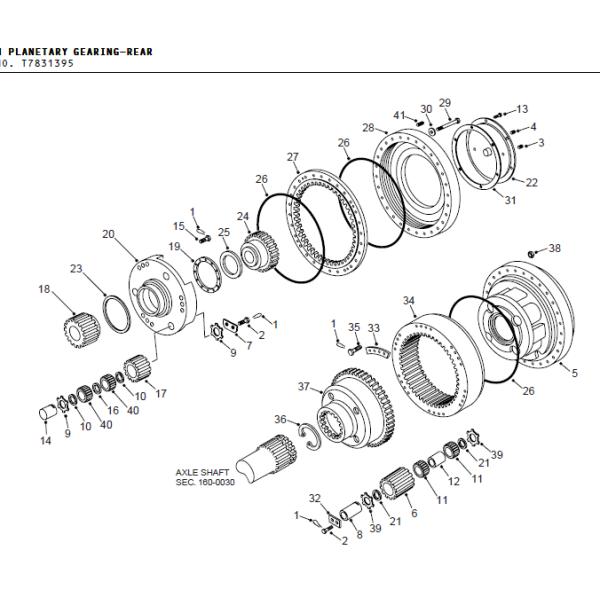

Terex TR100 coal truck 15337187 planetary gear box

001 09113457 LOCKWIRE
002 15019509 BOLT DRILL HEAD 0.50
003 09008525 PLUG-MAGNETIC
004 00273469 PLUG
005 15009631 CARRIER-PLANETARY
006 15334788 PINION-PLANETARY
007 15233274 RETAINER
008 15233267 PIN-PLANETARY
009 15232937 PLATE-THRUST
010 09074668 SPACER
011 15238327 BEARING
012 15238323 SPACER-BEARING
013 00454910 BOLT
014 15233266 PIN-PLANETARY
015 15019502 BOLT DRILL HEAD 0.38
016 09074670 SPACER

017 15334787 PLANET PINION-FIRST
018 15334786 PINION-SUN
019 15019492 PLATE-RETAINER
020 15337703 CARRIER-PLANTRY M/CD
021 15238322 SPACER-THRUST
022 15233271 COVER-PLANETARY
023 15019519 WASHER-THRUST
024 15334785 SUN PINION-FIRST
025 15245290 WASHER-THRUST
026 09125576 O RING-BULK
027 15228596 RING-GEAR
028 15233268 COVER CARRIER
029 09430309 BOLT
030 09250715 WASHER-HARDENED
031 09141863 O RING
032 15233269 RETAINER
033 15019494 RETAINER
034 15334790 RING-GEAR
035 15019502 BOLT DRILL HEAD 0.38
036 09413420 RING-SNAP
037 15337702 CARRIER-RING GEAR
038 09433576 NUT
039 15246062 WASHER-THRUST
040 15015363 BEARING
041 00139230 SCREW
