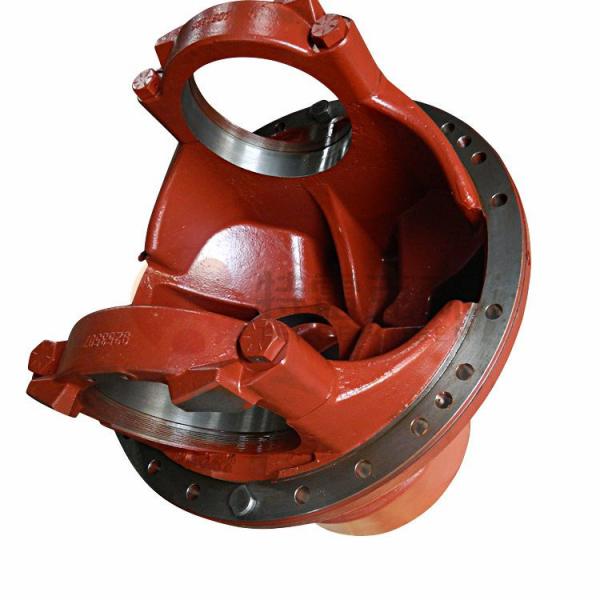

terex 9253506 housing assy for terex TR60 terex ming truck terex dump truck
terex 9253506 housing assy for terex TR60 terex ming truck terex dump truck
Specifications
Brand Name :
TEREX
Model Number :
9253506
Certification :
ISO9001:2008
Place of Origin :
USA
MOQ :
1
Brand name :
TEREX
Application :
TEREX TR60
Sample Order :
Available
Quality :
Guaranteed,Genuine or OEM
Warranty :
12 months
Description

Terre Kosen Mine Equipment Co., Ltd specializes in supplying TEREX truck parts,marketing global.offering the highest quality parts with competitive price.

Established in 2009, We have been manufacturing/exporting high-quality parts at low costs to companies world-wide,Following strict I.S.O guidelines and control quality process.

Large amount parts are in stock make the parts lead-time shorter.Rich export experience make you import parts easier and faster.

Terex dump truck parts for 3303;3304;3305;3307;TR35;TR45;TR50;TR60;TR100
Terex haul truck for 3303;3304;3305;3307;TR35;TR45;TR50;TR60;TR100
Terex off-highway for dump truck 3303;3304;3305;3307;TR35;TR45;TR50;TR60;TR100
Terex end dumper for 3303;3304;3305;3307;TR35;TR45;TR50;TR60;TR100
Terex parts for quarry

Terex earthmoving equipment parts

terex 9253506 housing assy for terex TR60 terex ming truck terex dump truck

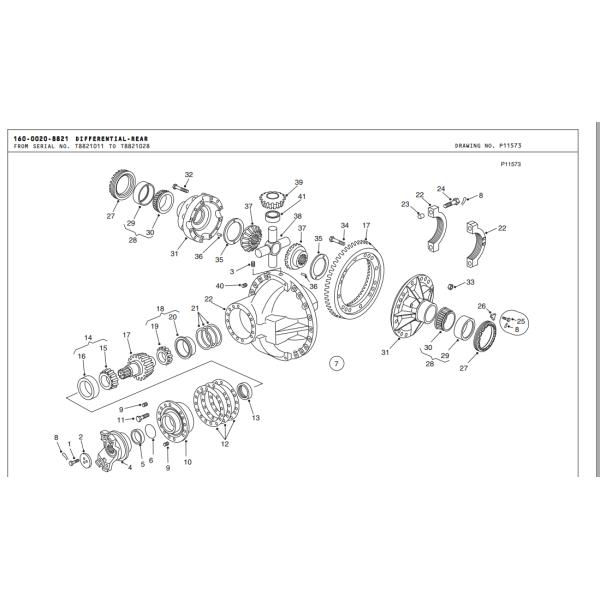

160-0020-8821 DIFFERENTIAL-REAR

FROM SERIAL NO. T8821011 TO T8821028 FROM SERIAL NO. T8821011 TO T8821028
SER.NO. SER.NO.
NC REF QTY PART NO. DESCRIPTION FROM TO		 SER.NO. SER.NO.
NC REF QTY PART NO. DESCRIPTION FROM TO
001 003 00223432 BOLT
002 001 09245141 RETAINER
003 002 00139230 SCREW
004 001 15300937 YOKE-DIFF INPUT
005 001 09231786 .SLEEVE
006 001 09141877 O RING
007 001 15251368 DIFFERENTIAL ASSY
008 ASR 09113457 .LOCKWIRE
009 002 00222761 .SCREW
010 001 09245131 .RETAINER
011 014 00271562 .BOLT
012 ASR 09245139 .SHIM
012 ASR 09245137 .SHIM
012 ASR 09245138 .SHIM
013 001 15244310 .SEAL
014 001 09423967 .BEARING ASSY
015 001 09423968 ..CONE
016 001 09423969 ..CUP
017 001 15021458 ..GEAR SET
018 001 09428204 .BEARING ASSY
019 001 09428205 ..CONE
020 001 09428206 ..CUP
021 ASR 09245135 .SHIM
021 002 09245134 .SHIM
021 ASR 09245133 .SHIM
022 001 09253506 .HOUSING ASSY
023 004 09192618 ..DOWEL-BUSHING
024 004 09216692 ..BOLT
025 004 09170517 .BOLT
026 002 09245142 .LOCK
027 002 09245234 .BEARING-ADJUSTER
028 002 09428202 .BEARING ASSY
029 002 09427249 ..CUP-BEARING
030 002 09428203 ..CONE-BEARING
031 001 15019476 .CASE
032 008 09430296 ..BOLT
033 024 09419496 .NUT
034 024 00223775 .BOLT
035 002 09005581 WASHER		 036 004 09219084 PIN-DOWEL
037 002 09272352 GEAR
038 001 09272346 SPIDER
039 004 09272386 PINION
040 004 09114897 SCREW
041 004 00137393 BEARING


160-0020-8821 DIFFERENTIAL-REAR
