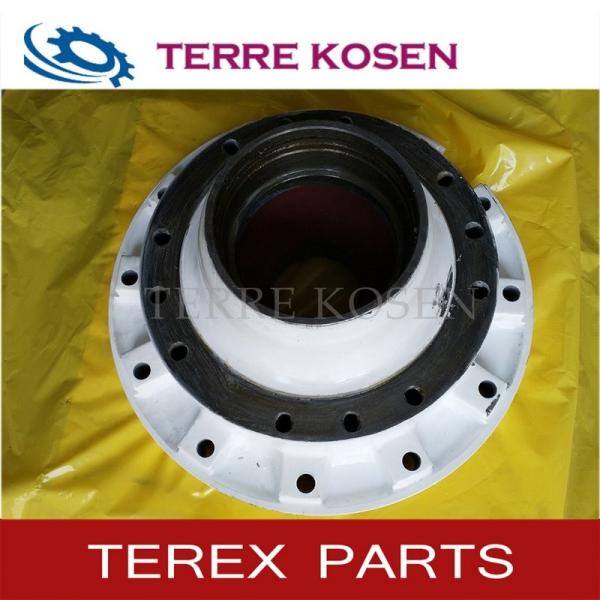

TEREX 9253451 Hub for terex TR35A truck parts NHL parts
TEREX 9253451 Hub for terex TR35A truck parts NHL parts
Specifications
Brand Name :
terex
Model Number :
9253451
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, L/C, Western Union, D/P, D/A
Supply Ability :
50pcs/week
Delivery Time :
5 days
Packaging Details :
TEREX NHL CUMMINS ALLISON PACKAGE ACCORDINGLY
Application :
TEREX tr35a
Sample Order :
Available
Quality :
Guaranteed,Genuine or OEM
Warranty :
12 months
Description

Terre Kosen Mine Equipment Co., Ltd specializes in supplying TEREX truck parts,marketing global.offering the highest quality parts with competitive price.

Established in 2009, We have been manufacturing/exporting high-quality parts at low costs to companies world-wide,Following strict I.S.O guidelines and control quality process.

Large amount parts are in stock make the parts lead-time shorter.Rich export experience make you import parts easier and faster.

Terex dump truck parts for 3303;3304;3305;3307;TR35;TR45;TR50;TR60;TR100
Terex haul truck for 3303;3304;3305;3307;TR35;TR45;TR50;TR60;TR100
Terex off-highway for dump truck 3303;3304;3305;3307;TR35;TR45;TR50;TR60;TR100
Terex end dumper for 3303;3304;3305;3307;TR35;TR45;TR50;TR60;TR100
Terex parts for quarry

Terex earthmoving equipment parts

FROM SERIAL NO.T1038-1 917
NC REF QTY PART NO. DESCRIPTION FROM TO NC REF QTY PART NO. DESCRIPTION FROM TO
001 001 09252445 GASKET
002 001 09016987 OIL SEAL
004 001 09016986 WASHER
005 001 00456473 CONE-INNER BEARING
006 001 07450645 CUP- INNER BEARING
007 001 09253451 HUB
008 001 09178785 O RING
009 001 09384210 AIR VALVE EXTENTION
010 001 09209216 ·CORE
011 001 09116292 ·CAP
A 012 002 20020697 COLLAR
A 013 001 20020695 RIM
A 014 001 20020696 BAND-BEAD SEAT
A 015 001 20020698 LOCKING COLLAR
016 000 09433271 CUP- OUTER BEARING
0l7 000 09433270 CONE-OUTER BEARING
018 000 09016968 WASHER
019 000 09016970 NUT
020 000 00179097 SPLINT PIN
021 000 09015357 COVER
022 004 00179881 BOLT
023 004 00103329 LOCK WASHER
024 012 09433576 NUT		 025 012 15352330 STUD
026 012 15023746 RIM CLIP
NO DRAWING 002 07551686 CONNECTOR
NO DRAWING 002 09368123 AIR VALVE CAP
NO DRAWING 002 18． 00-25 TUBELESS TIRE
A: SPECIAL EXPLANNATION
THE NUMBER 12, 13, 14 AND 15 MARKED WITH "NHLV046" AND "NHLV048" ARE
FROM DIFFERENT MANUFACTURERS, IT MUST NOT BE INTERMIXED NUMBER 12,
13, 14, 15 WITH DIFFERENT MARKS IN THE SAME TYRE.
