Specifications
Brand Name :
Shenzhou Anfu
Model Number :
AF75
Certification :
ISO,Test Report
Place of Origin :
China
MOQ :
1pc
Price :
US$45-55/pc
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
20000-40000/Month
Delivery Time :
2-15days
Packaging Details :
one piece to a small box , 10pcs to a carton box
Function Supported :
Bluetooth / wifi /3G
Operating System :
Linux/RTOS
Lcd Display :
2.8 inch
Processor :
Quad-core
Input Voltage :
AC 100-240V, 50/60Hz
Is Customized :
Yes
Sim Card :
1 slot
Security Features :
PCI PTS 6.x certified
Description

AF75 EMV chip reader writer software paypal payment method Linux pos with battery NFC reader

Company Information

We hope this message finds you well. As a valued customer, we wanted to reintroduce you to one of our key partners, Beijing Shenzhou Anfu, whose innovative security solutions might be of interest to you.

About Shenzhou Anfu: Beijing Shenzhou Anfu is a prominent player in the security technology sector, specializing in the development and sales of security SOC (System on Chip) chips, modules, and terminal products. They have earned multiple certifications, such as:

  • National High-Tech Enterprise Certification
  • UnionPay Card Acceptance Terminal Product Enterprise Certification
  • ISO 9001:2015 Quality Management System Certification
  • State Password Administration Authorization for Commercial Password Products

Technological Excellence: Shenzhou Anfu is renowned for their dedication to advanced research and development, focusing on:

  • High-performance 32-bit embedded CPU SOC chip designs
  • Comprehensive solutions for information security and mobile payments
  • Developing and promoting security solutions for various applications

Product Range and Applications: Their products are designed to enhance security across numerous fields, including:

  • Intelligent Terminals
  • Security Protection Devices
  • Smart Home Systems
  • Smart Locks
  • Financial Payment Systems
  • Specialized Information Encryption Products

Innovations and Intellectual Property: Shenzhou Anfu has an impressive portfolio of intellectual property, which includes:

  • 2 Invention Patents
  • 5 Utility Model Patents
  • 4 Design Patents
  • 9 Software Copyrights

Commitment to R&D: The company is firmly committed to independent research and development, investing heavily in innovation. Their AX200 chip series and various security solutions are a testament to their cutting-edge technology and dedication to quality.

Global Presence: Through their leading technology, strategic management, and standardized processes, Shenzhou Anfu has established a significant presence in the global security encryption industry. They supply high-quality security chips, modules, and intelligent terminals to sectors such as security, banking, finance, e-government, and public services worldwide.

Why Shenzhou Anfu? We believe Shenzhou Anfu’s advanced solutions and expertise can provide you with enhanced security capabilities, tailored to meet your specific needs. Their commitment to excellence and innovation aligns perfectly with our goal to bring you the best possible products and services.

We would be delighted to discuss how Shenzhou Anfu's offerings can further support your objectives and enhance your security infrastructure.

Specification

Operating System Linux 5.4
RTOS
Processor Linux:Cortex-A7 1.2 GHz
RTOS:Cortex-A5 500MHz
High performance 32-bit security CPU
Memory Linux:256MB Flash + 128MB RAM
RTOS:8MB Flash + 16MB RAM
Card Readers MSR: ISO7810-7813, 3 tracks
IC Card: ISO7816
NFC Reader 13.56MHz, ISO/IEC14443 TypeA&B,
Camera Rear camera:0.3 million pixels
Display 2.8" 320x240 TFT
Resistive Touch Screen
Wireless Communication Linux:Wi-Fi® (2.4G) (optional)| 4G(Cat-4) | 3G (WCDMA) | 2G(GPRS)
RTOS:Wi-Fi® (2.4G)(optional) | 4G(Cat-1) | 2G(GPRS)
Battery emovable Lithium polymer
battery, 3.7V/2500mAh | 3.7V/3200mAh (optional)
Printer High speed thermal printing, printing lifeis not less than 50km
The specification is 58mm in width and 40mm in diameter
Card Slots
SIM / SAM
SIM Card x 2 + PSAM X 1
Positioning X
Keypad Numeric x 10
Function x 8
Power x 1
Audio 1 Buzzer
Ports Linux:1 Type-C USB OTG | USB 2.0
RTOS:11 Type-C | USB 2.0
Indicator lights 4 Work indicator lights
Adapter Input: AC 100-240V, 50/60Hz
Output: 5V/1A
Scanning charging base X
Weight 340g
Physical size 177mm*81mm*56mm
Environment Storage temperature: -20°C to 60°C
Operating temperature: -10°C to 50°C
Humidity: ≤95%
Certifications EMV Contact L1/EMV Contact L2/EMV Contactless L1 / Visa payWave /Mastercard Paypass
PCI PTS 6.x / TQM / CE
Display 2.8"(320 x 240)TFT, resistive touch screen
WlFl(optional) 802.11 a/b/g/n,2.4G
Mobile communication Linux:4G CAT4,WCDMA,GSM
RTOS:4G CAT1,GSM
South American Version
FDD-LTE:B2/B3/B4/B5/B7/B8/B28-A/B28-B;
TDD-LTE:B40
GSM:B2/B3/B5/B8
European Version
FDD-LTE:B1/B3/B5/B7/B8/B20;
TDD-LTE:B38/B40/B41
GSM:B3/B8
Contact lC card Comply with lS0 7816 and China financial
integrated circuit (lC) card specification;
The card holder can be used for more than300000 times
Magnetic stripe card Support three track data reading;
It supports two-way card swiping.
The swipingspeed ranges from 10 cm /s to 100 cm /s.
The service life of the magnetic stripe reader canreach more than 400000 times;
It conforms to iso78ll and iso7812 standards
RTC Built in RTC to save the clock; Buttonbattery life > 5 years

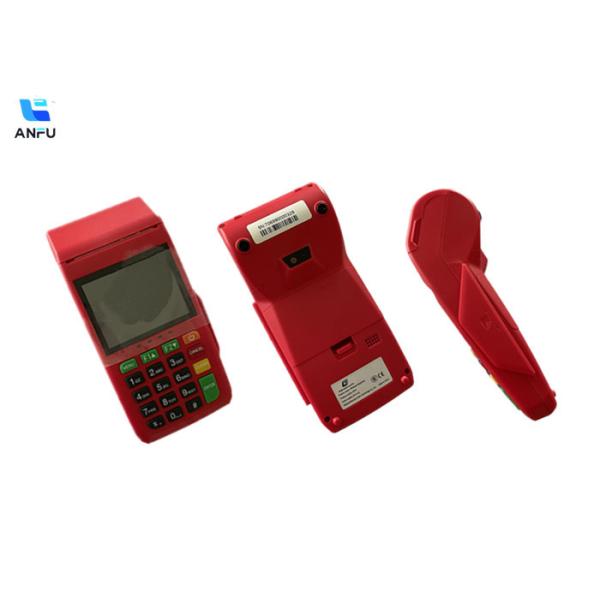

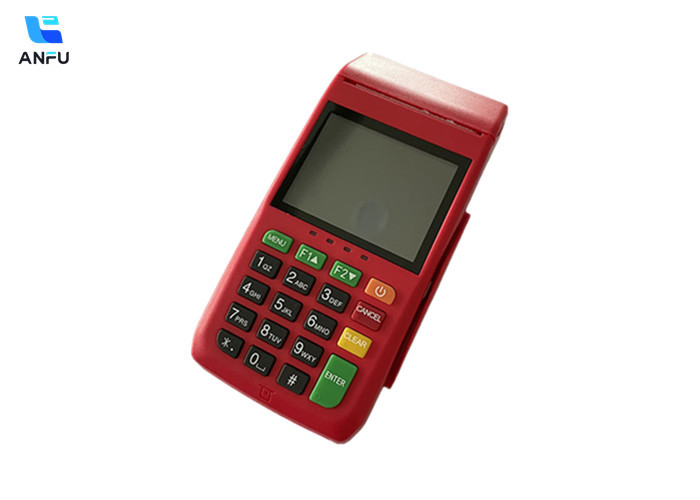

AF75 EMV Chip Reader Writer Software Paypal Payment Method Linux Pos Terminal With Battery Nfc Reader

AF75 EMV Chip Reader Writer Software Paypal Payment Method Linux Pos Terminal With Battery Nfc ReaderAF75 EMV Chip Reader Writer Software Paypal Payment Method Linux Pos Terminal With Battery Nfc Reader

Real Case for Lower MOQ:

Products Name MOQ(in the last 12month)
POS Device 5 Pieces

The competitive advantage of product line:

Shenzhou Anfu has obtained 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 appearance new patents and 9 software copyrights. In terms of product research and development, the company has always adhered to the road of independent research and development. The company has invested a large amount of funds each year in product R&D and design, realized serialized mass production of AX200 chip products, and launched safety in multiple industries based on this solution.

Certificate

AF75 EMV Chip Reader Writer Software Paypal Payment Method Linux Pos Terminal With Battery Nfc Reader

FAQ

1. Q: How can I get the touch pos terminal sample to check quality?

After price comfirmation, you can order pos samples to check quality.

Contact:whatsapp +86 18011965815

2. Q. How can we promise you the quality ?
Each of our products will be FULL tested and Inspected before it shipped,

3. Q: How can I become your agent?

A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.

4. Q: Who will pay the postage of the returns?

A: Within the warranty, returning postage happening in China will be free of charge. (Returns happening outside China mainland excluded.)

5. Q:What is your warranty?

We offer 12-months warranty, lifelong maintenance service. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
