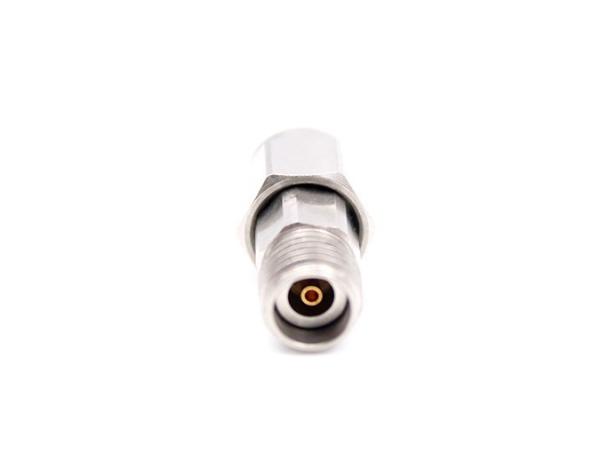

Fixed Attenuator 2.92 Male to Female 2W 40GHz 3dB
Fixed Attenuator 2.92 Male to Female 2W 40GHz 3dB
Fixed Attenuator 2.92 Male to Female 2W 40GHz 3dB
Fixed Attenuator 2.92 Male to Female 2W 40GHz 3dB
Fixed Attenuator 2.92 Male to Female 2W 40GHz 3dB
Fixed Attenuator 2.92 Male to Female 2W 40GHz 3dB
Specifications
Brand Name :
Terui
Model Number :
SMA-50JR-2W
Certification :
RoHS
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000000pcs per month
Delivery Time :
3-14 working days
Packaging Details :
Standard export packaging
Description

Fixed Attenuator 2.92 Male to Female 2W 40GHz 3dB

N RF Fixed Attenuator is used to reduce the signal level. The general reason for wanting to reduce the signal level may be to avoid receiving a signal with too high a level in a hierarchical circuit, or to meet the need to control the signal level in an application. n RF Fixed Attenuator usually consists of a resistor network that allows heat to escape at a certain rate.

As a RF Fixed Attenuator supplier, we have a wide range of RF Fixed Attenuator models to meet the diverse needs of different frequency bands and power, and use high-quality materials and advanced technology, guarantee RF Fixed Attenuator products with high precision, low insertion loss and high reliability. Technical Services, professional team at any time to provide buyers with technical advice and customized solutions to solve the use of all kinds of problems. In terms of price, with mature supply chain and efficient production processes, to achieve cost-effective. After-sales also have a sound system to ensure that the purchase of worry-free.

Product Details

Fixed Attenuator 2.92 Male tp Female 2W 40GHz 3dB

Teruilai P/N : TRL-2.92MF-2-40-3

RoHS Certificate: Compliant

Electrical data Requirments
Frequency range 0-40GHZ
Characteristic impedance 50Ω
VSWR ≦1.3
Mechanical data Requirments
Durability (matings) ≧500
Environmental data Requirments
Temperature range -55℃ to +125℃
Material data Requirments
Connector parts Material Plating
Body Stainless steel ,passivated
Female center contacts Beryllium-Copper Gold-plated
Insulators PEI
