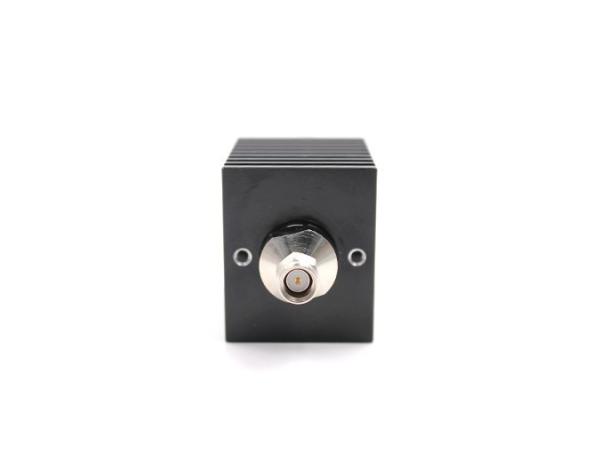

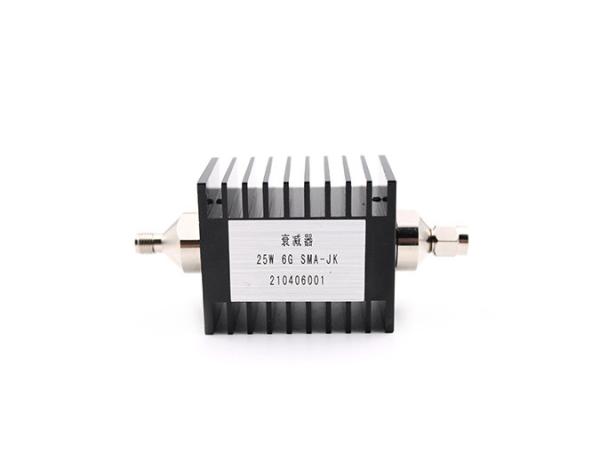

20 dB Fixed Attenuator, SMA Male to SMA Female Black Anodized Aluminum Heatsink Body Rated to 25Watts Up to 6 GHz
20 dB Fixed Attenuator, SMA Male to SMA Female Black Anodized Aluminum Heatsink Body Rated to 25Watts Up to 6 GHz
20 dB Fixed Attenuator, SMA Male to SMA Female Black Anodized Aluminum Heatsink Body Rated to 25Watts Up to 6 GHz
20 dB Fixed Attenuator, SMA Male to SMA Female Black Anodized Aluminum Heatsink Body Rated to 25Watts Up to 6 GHz
Specifications
Brand Name :
Terui
Model Number :
TRI-SMAMF-25-6-20
Certification :
RoHS
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000000pcs per month
Delivery Time :
3-10 working days
Packaging Details :
Standard export packaging
Description
RF Fixed Attenuators

N RF Fixed Attenuator is used to reduce the signal level. The general reason for wanting to reduce the signal level may be to avoid receiving a signal with too high a level in a hierarchical circuit, or to meet the need to control the signal level in an application. n RF Fixed Attenuator usually consists of a resistor network that allows heat to escape at a certain rate.

As a RF Fixed Attenuator supplier, we have a wide range of RF Fixed Attenuator models to meet the diverse needs of different frequency bands and power, and use high-quality materials and advanced technology, guarantee RF Fixed Attenuator products with high precision, low insertion loss and high reliability. Technical Services, professional team at any time to provide buyers with technical advice and customized solutions to solve the use of all kinds of problems. In terms of price, with mature supply chain and efficient production processes, to achieve cost-effective. After-sales also have a sound system to ensure that the purchase of worry-free.

20 dB Fixed Attenuator, SMA Male to SMA Female Black Anodized Aluminum Heatsink Body Rated to 25Watts Up to 6 GHz

20dB Fixed Attenuator, This SMA attenuator has a male gender on side 1 and a SMA female connector on side 2.

Product Details

20 dB Fixed Attenuator, SMA Male to SMA Female Black Anodized Aluminum Heatsink Body Rated to 25Watts Up to 6 GHz

Teruilai P/N : TRL-SMAMF-25-6-20

RoHS Certificate: Compliant

Electrical data Requirments
Frequency range DC-6GHZ
Impedance 50Ω
Nominal Attenuator 20dB
Power Input 25Watt
VSWR Maximum 1.3:1
Mechanical data Requirments
Durability(matings) ≥500
Material data Requirments
Connector parts Material Plating
Body Brass Suco-plated
Coupling nut Brass Suco-plated
Pin contacts Beryllium or copper Gold
Insulators PTFE
Electrical data Requirments
Frequency range 0-40GHZ
Characteristic impedance 50Ω
VSWR ≦1.3
Mechanical data Requirments
Durability (matings) ≧500
Environmental data Requirments
Temperature range -55℃ to +125℃
Material data Requirments
Connector parts Material Plating
Body Stainless steel ,passivated
Female center contacts Beryllium-Copper Gold-plated
Insulators PEI

Datasheet
