Fixed Attenuator 3.5 Male to Female 2W 26.5GHz 10dB
Fixed Attenuator 3.5 Male to Female 2W 26.5GHz 10dB
Fixed Attenuator 3.5 Male to Female 2W 26.5GHz 10dB
Fixed Attenuator 3.5 Male to Female 2W 26.5GHz 10dB
Fixed Attenuator 3.5 Male to Female 2W 26.5GHz 10dB
Fixed Attenuator 3.5 Male to Female 2W 26.5GHz 10dB
Specifications
Brand Name :
Terui
Model Number :
TRL-3.5MF-2-26.5-10
Certification :
RoHS
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000000pcs per month
Delivery Time :
3-10 working days
Packaging Details :
Standard export packaging
Description
RF Fixed Attenuators

N RF Fixed Attenuator is used to reduce the signal level. The general reason for wanting to reduce the signal level may be to avoid receiving a signal with too high a level in a hierarchical circuit, or to meet the need to control the signal level in an application. n RF Fixed Attenuator usually consists of a resistor network that allows heat to escape at a certain rate.

As a RF Fixed Attenuator supplier, we have a wide range of RF Fixed Attenuator models to meet the diverse needs of different frequency bands and power, and use high-quality materials and advanced technology, guarantee RF Fixed Attenuator products with high precision, low insertion loss and high reliability. Technical Services, professional team at any time to provide buyers with technical advice and customized solutions to solve the use of all kinds of problems. In terms of price, with mature supply chain and efficient production processes, to achieve cost-effective. After-sales also have a sound system to ensure that the purchase of worry-free.

Fixed Attenuator 3.5 Male to Female 2W 26.5GHz 10dB

3.5mm milimeter wave connector adaptors are the guarantee for the connection between different seriels of RF coaxial connectors. Adaptors have two kinds of material , includes brass and stainless steel. Both of them are RoHS and Reach Compliant . The frequency ranges from DC to 65Ghz.

They are widely used in testing system, aerospace field, microwave weapon systems.

Product Details

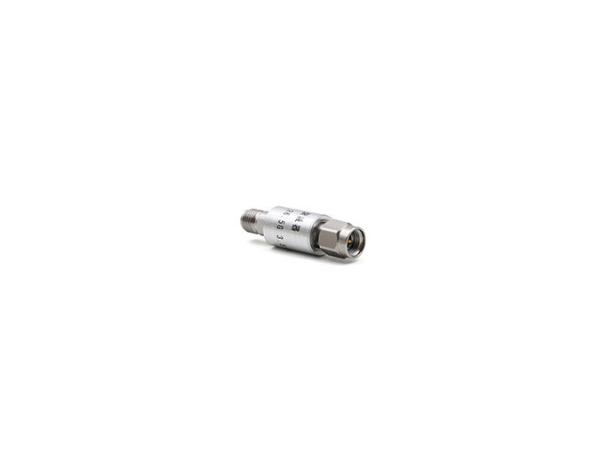

Fixed Attenuator 3.5 Male to Female 2W 26.5GHz 10dB

Teruilai P/N : TRL-3.5MF-2-26.5-10

RoHS Certificate: Compliant

Electrical data Requirments
Frequency range DC-26.5Ghz
Impedance 50Ω
Nominal Attenuator 6dB
Power Input 2Watt
VSWR Maximum 1.20
Mechanical data Requirments
Durability (matings) ≧500
Material data Requirments
Connector parts Material Plating
Body Stainless steel Passivated
Pin contacts Beryllium copper Gold
Insulators PTFE
