2.4 Female Stainless steel connector for Gore3507 Cable
2.4 Female Stainless steel connector for Gore3507 Cable
2.4 Female Stainless steel connector for Gore3507 Cable
2.4 Female Stainless steel connector for Gore3507 Cable
2.4 Female Stainless steel connector for Gore3507 Cable
2.4 Female Stainless steel connector for Gore3507 Cable
Specifications
Brand Name :
Terui
Model Number :
2.4-K3507G
Certification :
RoHS
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000000pcs per month
Delivery Time :
3-10 working days
Packaging Details :
Standard export packaging
Description

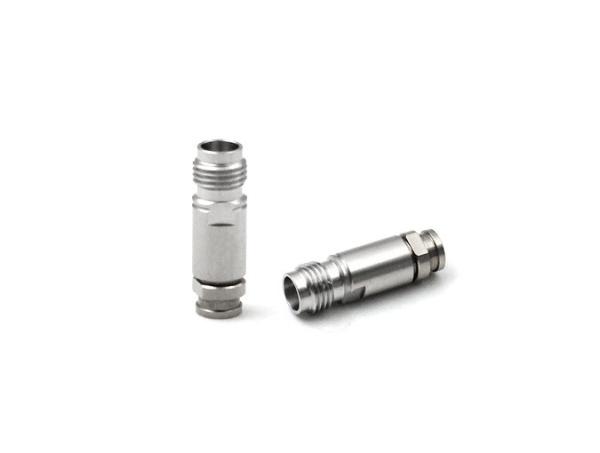

2.4 Female Stainless steel connector for Gore3507 Cable

TYPE 2.4MM is one kind precision micro-wave connector, up to 50GHZ , widely used in the testing system, aerospace field, microwave weapon systems. It has several types such as bulkhead, 2holes ,4 holes; It's also available for semi-regid and flexible cables .

Product Details

2.4 Female Stainless steel connector for Gore3507 Cable

Teruilai P/N: 2.4-K3507G

RoHS Certificate: Compliant

Electrical data Requirments
Frequency range DC-50GHZ
Dieletric withstanding voltage ≧750V
Characteristic impedance 50Ω
Insulation Resistance ≧3000MΩ
VSWR 1.3:1
Mechanical data Requirments
Durability (matings) ≧500
Environmental data Requirments
Temperature range -45℃ to 85℃
Material data Requirments
Connector parts Material Plating
Body Stainless steel Passivated
Pin contacts Beryllium-Copper Gold
Insulators PEI
