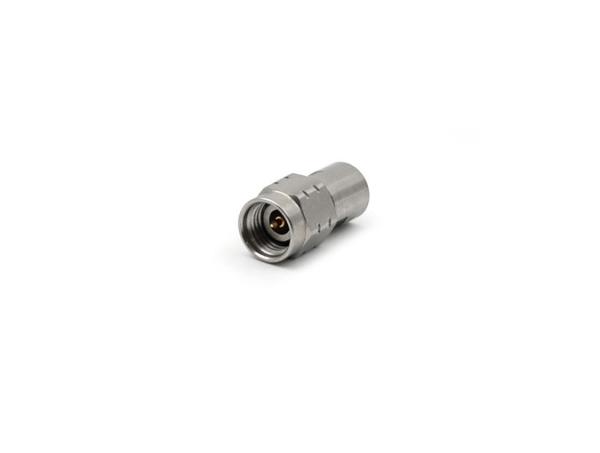

2.92mm male for Gore 3507 cable RF Coaxial Connector
2.92mm male for Gore 3507 cable RF Coaxial Connector
2.92mm male for Gore 3507 cable RF Coaxial Connector
2.92mm male for Gore 3507 cable RF Coaxial Connector
2.92mm male for Gore 3507 cable RF Coaxial Connector
2.92mm male for Gore 3507 cable RF Coaxial Connector
Specifications
Brand Name :
Terui
Model Number :
2.92-J3507G-F Datesheet
Certification :
RoHS
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000000pcs per month
Delivery Time :
3-10 working days
Packaging Details :
Standard export packaging
Description

2.92mm male for Gore 3507 cable RF Coaxial Connector

2.92 mm male for rf connector also named K connector, developed from series SMA connector.

2.92mm Microwave Connectors have the advantages of small size, lightweight, high frequency, and super reliability, widely used in the modern precision measurement and microwave communication equipment. The frequency range can be up to 40Ghz.

Product Details

2.92mm male for Gore 3507 cable RF Coaxial Connector

Teruilai P/N: 2.92-J3507G-F Datesheet

RoHS Certificate: Compliant

Electrical data Requirments
Frequency range DC-40GHZ
Dielectric withstanding voltage ≧750V
Characteristic impedance 50Ω
Insulation Resistance ≧3000MΩ
Contact Resistance
.Center conductor ≦4.0mΩ
.Outer conductor ≦2.0mΩ
VSWR ≦1.20
Mechanical data Requirments
Durability (matings) ≧500
Environmental data Requirments
Temperature range -45℃ to +85℃
Material data Requirments
Connector parts Material Plating
Body Stainless steel (Su303), passivated
Pin contacts Beryllium-Copper gold-plated
Insulators PEI
