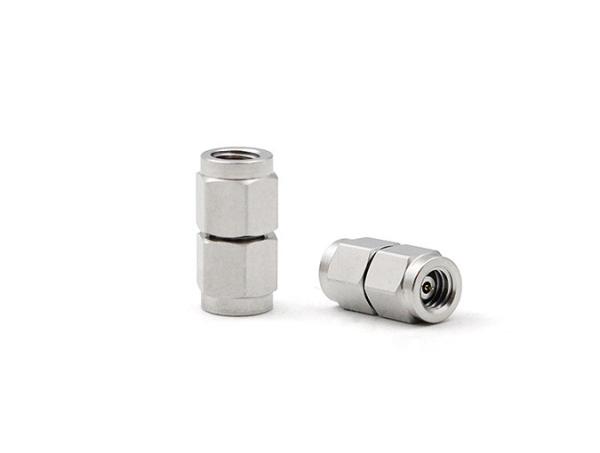

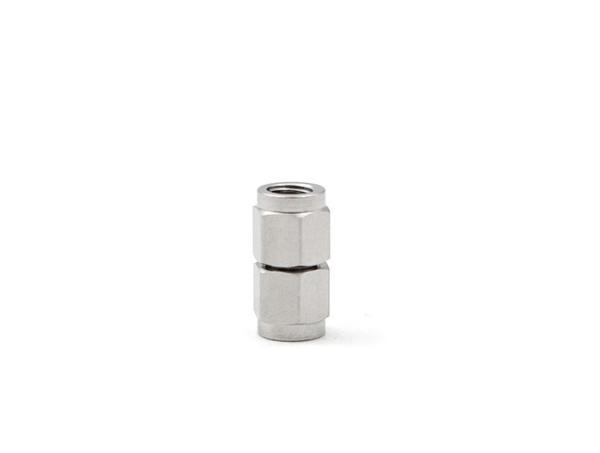

1.0mm male to 1.0 male RF Coaxial Adaptor
1.0mm male to 1.0 male RF Coaxial Adaptor
1.0mm male to 1.0 male RF Coaxial Adaptor
1.0mm male to 1.0 male RF Coaxial Adaptor
1.0mm male to 1.0 male RF Coaxial Adaptor
1.0mm male to 1.0 male RF Coaxial Adaptor
Specifications
Brand Name :
Terui
Model Number :
1.0-JJG
Certification :
RoHS
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000000pcs per month
Delivery Time :
3-10 working days
Packaging Details :
Standard export packaging
Description

1.0mm male to 1.0 male RF Coaxial Adaptor

Product Details

1.0mm male to 1.0 male RF Coaxial Adaptor

Teruilai P/N:1.0-JJG

RoHS Certificate: Compliant

Electrical data Requirments
Frequency range DC-110GHZ
Dieletric withstanding voltage ≧750V
Characteristic impedance 50Ω
Insulation Resistance ≧5000MΩ
Contact Resistance
VSWR ≦1.50
Mechanical data Requirments
Durability (matings) ≧500
Environmental data Requirments
Temperature range -45℃ to +125℃
Material data Requirments
Connector parts Material Plating
Body Stainless steel Passivated
Pin contacts Beryllium-Copper gold-plated
Insulators PEI
