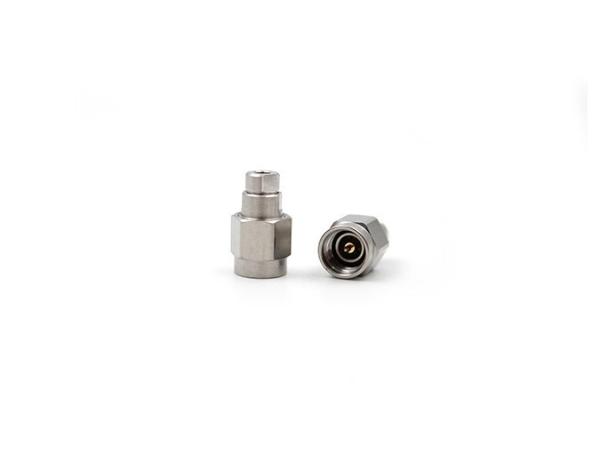

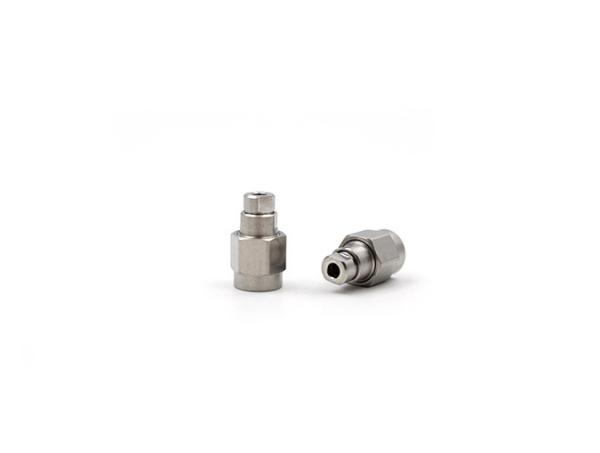

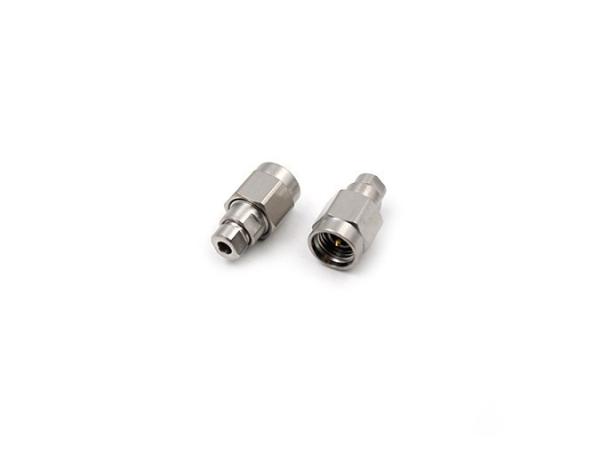

Milimeter wave connector stainless Steel 3.5mm Male for .086RG405 Cable
Milimeter wave connector stainless Steel 3.5mm Male for .086RG405 Cable
Milimeter wave connector stainless Steel 3.5mm Male for .086RG405 Cable
Milimeter wave connector stainless Steel 3.5mm Male for .086RG405 Cable
Milimeter wave connector stainless Steel 3.5mm Male for .086RG405 Cable
Milimeter wave connector stainless Steel 3.5mm Male for .086RG405 Cable
Specifications
Brand Name :
Terui
Model Number :
3.5-JB2AG
Certification :
RoHS
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000000pcs per month
Delivery Time :
3-10 working days
Packaging Details :
Standard export packaging
Description

Milimeter wave connector stainless Steel 3.5mm Male for .086RG405 Cable

Series 3.5mm microwave Connector is one kind of precision milimeter wave connector widely used in the testing system, aerospace field, microwave weapon systems. The frequency ranges from DC to 26.5 Ghz

Product Details

3.5mm Male for .086/RG405 Cable

Teruilai P/N:3.5-JB2AG

RoHS Certificate: Compliant

data Requirments
Frequency range DC-26.5Ghz
Characteristic impedance 50Ω
VSWR ≦1.25:1
Mechanical data Requirments
Durability (matings) ≧500
Environmental data Requirments
Temperature range -45℃ to +85℃
Material data Requirments
Connector parts Material Plating
Body stainless steel passivated
Pin contacts Beryllium-Copper gold-plated
Insulators PEI
