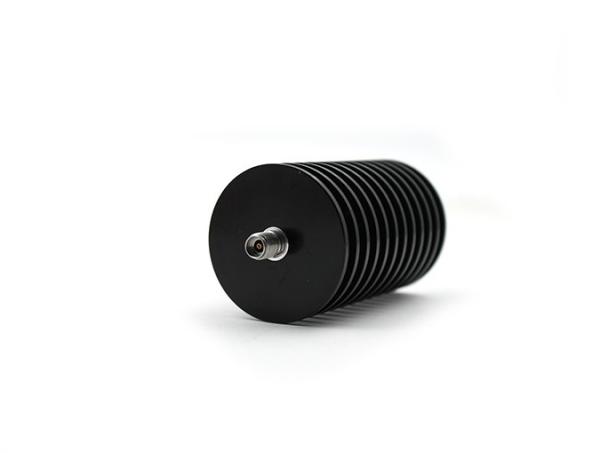

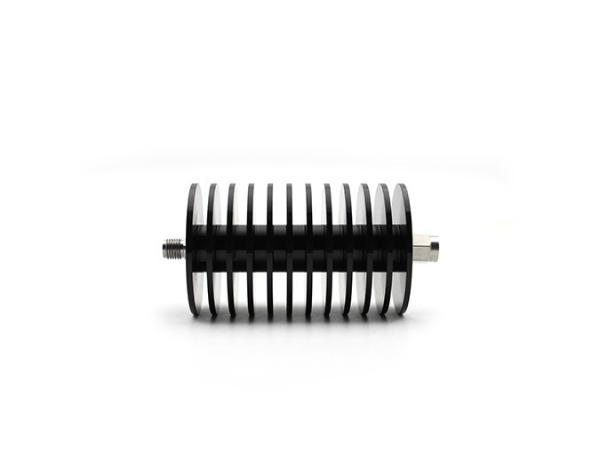

Fixed Attenuator 2.92 Male to Female 20W 40GHz 20dB
Fixed Attenuator 2.92 Male to Female 20W 40GHz 20dB
Fixed Attenuator 2.92 Male to Female 20W 40GHz 20dB
Fixed Attenuator 2.92 Male to Female 20W 40GHz 20dB
Fixed Attenuator 2.92 Male to Female 20W 40GHz 20dB
Fixed Attenuator 2.92 Male to Female 20W 40GHz 20dB
Specifications
Brand Name :
Terui
Model Number :
TRL-2.92MF-20-40-20
Certification :
RoHS
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000000pcs per month
Delivery Time :
3-14 working days
Packaging Details :
Standard export packaging
Description

Fixed Attenuator 2.92 Male to Female 20W 40GHz 20dB

Series 2.92mm Coaxial connectors are one kind of precision millimeter-wave connectors developed from series SMA.They adopt air interface.They have the advantages of small,light,high frequency and superior reliability,etc.The products have been widely used in the field of modern precision measure and micro-wave communication equipment.

Product Details

Fixed Attenuator 2.92 Male to Female 20W 40GHz 20dB

Teruilai P/N : TRL-2.92MF-20-40-20

RoHS Certificate: Compliant

Electrical data Requirments
Frequency range 0-40GHZ
Characteristic impedance 50Ω
VSWR ≦1.3
Mechanical data Requirments
Durability (matings) ≧500
Environmental data Requirments
Temperature range -55℃ to +125℃
Material data Requirments
Connector parts Material Plating
Body Stainless steel ,passivated
Female center contacts Beryllium-Copper Gold-plated
Insulators PEI
