Precise Mechanical Structure Electronic Hardness Tester For Cast Iron / Steel Products
Precise Mechanical Structure Electronic Hardness Tester For Cast Iron / Steel Products
Specifications
Brand Name :
Trojan
Model Number :
Dhb-3000
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50000 Sets/Year
Delivery Time :
1-3 Working Days
Packaging Details :
Standard Export Package, Wooden Case
Port :
Shanghai, China
Type :
Brinell Hardness Tester
Measuring Range :
HB
Application :
Metal
Standard :
ISO, ASTM, GB/T
Warranty :
1 Year
Mobility :
Desktop
Support Language :
English
Rated Voltage :
220V
Description

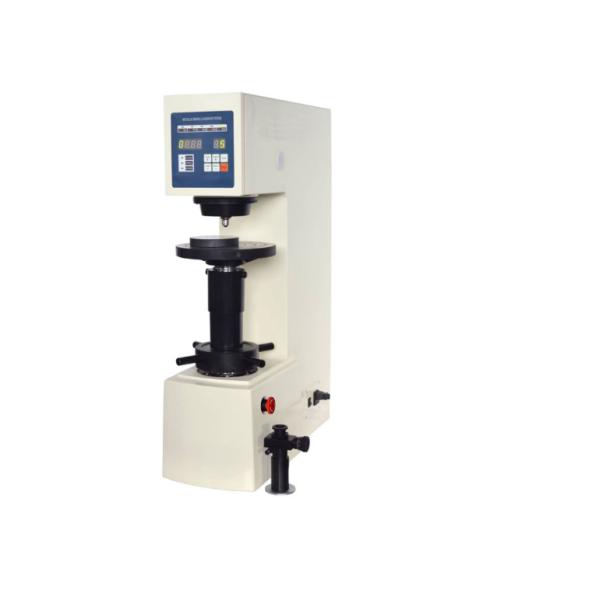

Dhb-3000 Electronic Brinell Hardness Tester

Product Description

Main Function

DHB-3000 Electronic Brinell hardness tester is a unified product combining the precise mechanical structure and the load cell control system. The instrument adopts the motorized test force application without weights, and uses 0.5‰ accuracy compression sensor to feedback and the CPU control system to automatically compensate the test force lost during the test. The test force and dwell time can be directly set on the touch keyboard with reliable repeatability, precise reading and easy operation. It can be equipped with V1.0 Brinell image automatic measuring system.

Application range

Suitable for cast iron, steel products, nonferrous metals and soft alloys etc. Also suitable for some nonmetal materials such as rigid plastics and bakelite etc.

Technical Specification

Model DHB-3000
Test Force kgf 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf
N 612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N
Test Range 3.18~653HBW
Hardness Reading Check Hardness Table
Microscope 20× Reading Microscope
Minimum Division Value of Drum Wheel 5μm
Dwell Time 0~60s
Max. Height of Specimen 220mm
Throat 135mm
Power Supply AC220V,50Hz
Execute Standard ISO 6506,ASTM E10-12,JIS Z2243,GB/T 231.2
Dimension 545×235×755mm,Packing Dimension: 650×435×1025mm
Weight Net Weight: 130kg,Gross Weight: 160kg

Packing List

Name Qty Name Qty
Instrument Main Body 1 set 20× Reading Microscope 1 pc
Ф2.5mm, Ф5mm, Ф10mm Ball Indenter each 1 pc Large Plane Test Table 1 pc
Small Plane Test Table 1 pc V-shaped Test Table 1 pc
Hardness Block 150~250 HBW 10/3000 1 pc Hardness Block 150~250 HBW 5/750 1 pc
Fuse 2A 2 pcs Power Cable 1 pc
Anti-dust Cover 1 pc Brinell Hardness Table 1 copy
Usage Instruction Manual 1 copy

Precise Mechanical Structure Electronic Hardness Tester For Cast Iron / Steel Products

Precise Mechanical Structure Electronic Hardness Tester For Cast Iron / Steel Products

Payment & Shiping

Precise Mechanical Structure Electronic Hardness Tester For Cast Iron / Steel Products
RFQ

1, Min. Order Quantity

1 piece is OK.

2. How about your technical team construction?

We have professional technicians team with 10 years' experience.

3, What's our warranty?

12 months

4, Ways of payment

T/T, L/C, Pay pal, Western Union

5, Ways of shipment

EXW, FOB, DHL, FedEx, or upon your requirements

6, Are you a trader or manufacture?

We are manufacturer, owns our factory in Suzhou.

7, Can you accept OEM or ODM?

Of course,Logo is also acceptable

8, What is the delivery time?

No special requirements, can be delivered within 3 days. For customized models, delivery time shall be discussed and confirmed according to order
