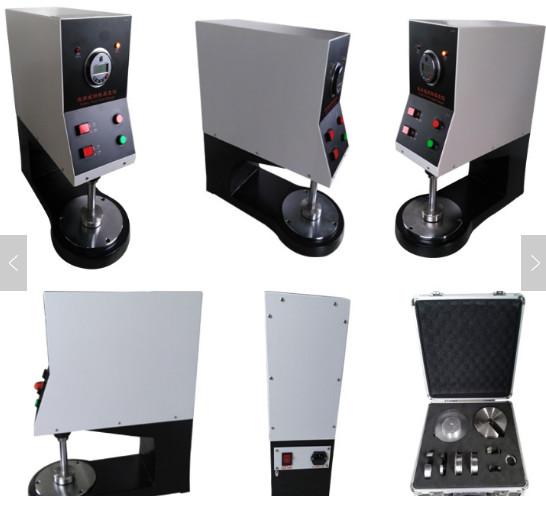

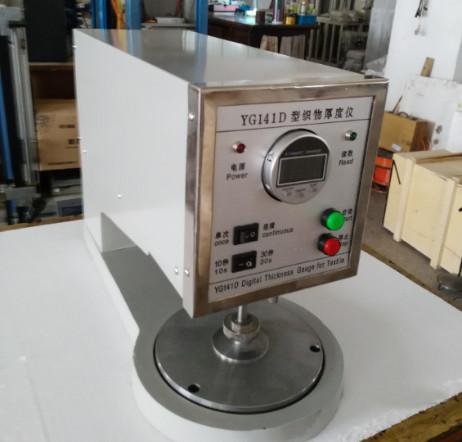

ISO3005 ASTM D1777 Electronic textile thickness gauge Fabric Thickness Tester

QUICK DETAILS

It is mainly used for measuring the thickness of various kinds of textiles and geotextiles, and can also be used for the thickness measurement of other uniform thin materials.

EXCUTIVE STANDARD

GB/T3820,FZ/T01003,ISO5084/9073/9863,ASTM D1777

ADVANTAGES

1. The instrument uses electric lift, leverage counterweight balance, direct pressure, automatic timing, dial indicator readings and other functions. Can be used in general laboratory environments
2. It can automatically measure the thickness of fabric continuously or single time. The pressing time can be divided into two levels of 30 seconds or 30 seconds to avoid the error of manual input.

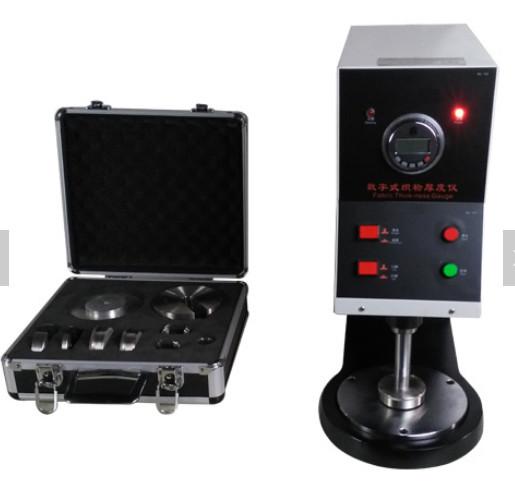

3. The instrument is equipped with five types of weights (5cN,10cN,50cN,100cN,200cN,400cN,and 1000cN) to form a multi-stage pressure for customer use. 4 feet, with 100mm2, 2000mm2, 2500mm2, 10000mm2 four block pressure foot area.
4. The upper and lower guides of the presser foot and other transmissions adopt the rolling bearing. The presser foot is connected with the swinging screw and the side bar. The positioning reference line can ensure that the parallelism after the presser foot replacement is within 0.2%. The distance between the center of the presser foot and the side of the column is large enough to meet the requirements for thickness testing on large pieces of fabric without cutting samples.
5. The sample table is equipped with double-row radial spherical bearings, so that the top surface of the sample table can be easily adjusted parallel to the pressure foot surface with three adjusting bolts.

TESTING PROCEDURES

1. Clean the exposed part of the instrument, especially the test stand and the presser foot side shaft, must not be covered with dust and fiber

2. According to the requirements of the tested fabric, select the area of the presser foot, press the time and weight, replace the selected presser foot and add the press weight.
3. According to the test needs, the pointer rotates to "continuous" or "single", "10 seconds" or "30 seconds" indication position, turn on the power, press the start button
4. Adjust the zero position of the dial indicator, adjust the zero position, test several times, observe the zero position and start testing
5. Turn on the power and turn on the power switch. The power indicator is on. (Power single-phase safety socket ground must be grounded)
6. When the presser foot is raised, place the tested fabric or specimen on the test bench without tension.
7. After the presser foot presses the measured object for 10 seconds, the timing indicator lights up automatically. After the timing indicator goes out, the buzzer sounds. At this time, the thickness value shown on the dial indicator should be read as soon as possible and Good record
8. When the continuous test is used, the presser foot will automatically rise after the timing indicator goes out, automatically up and down, work cycle, and the presser foot will not reciprocate when a single test is used.
9. The measured fabric can be moved to a new test position using the clearance time of the presser foot up and down
10. End of test, record test data
11. During the test, press the stop key to end the test. Hold down the lift button and hold the presser foot until the release button is released.
