Equipment Overview

Sharp Edge Testing Machine For Toy and Metal is used to determine whether the edge part of toys or articles is dangerous or unreasonable.

Test Data

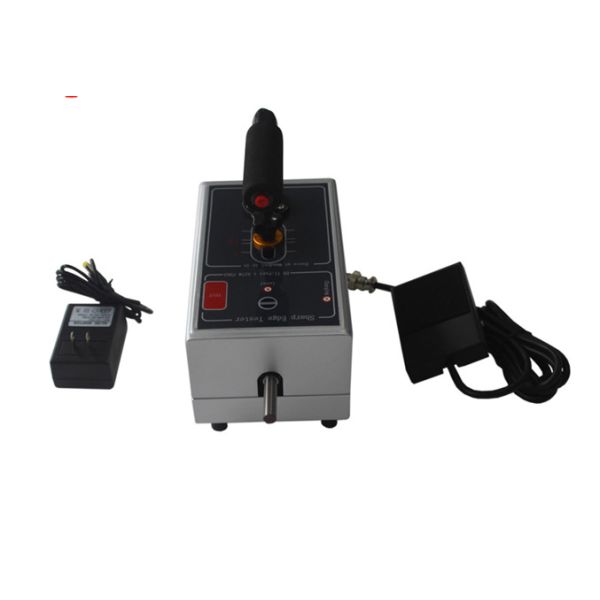

Product Photo

Details Display

Instructions

1. Roll a circle of TFE tape on the edge of the edge tester. The overlap size should not exceed 0.1in (0.25mm).
2, the fixed sample office can not move and bend the test side.
3, when the assembled toy can touch the edge of its position is not enough for the experiment, the sample should be removed to test, but if removed will affect its hardness, other objects can make it hard, but its support area can not be Greater than the test object.
4. The angle between the tester and the test edge is 90°±5°.
5. The contact point between the edge of the test object and the tape should be in the middle of the tape dispatch.
6. The tested object applies its most unfavorable position test.
7. The strength tester will be adjusted to 1.35 LBS (6N).
8. Apply a force upward to the position of the adhesive tape to make the indicator light bright. At this time, the force at the test edge is 1.35 LBS.
9. Turn on the sharp edge tester switch to make the shaft rotate once.
10. Carefully disassemble the tape and do not enlarge its cut size. Use a ruler to measure its cut length.
11. If the cut length is more than 0.5in (12.5mm), test the edge for sharp edges.

Use method and understanding:

1. Attach the PTFE adhesive tape to the mandrel as required, then rotate the mandrel 360 degrees along the accessible edge under test to check that the test tape is gravity-determined by the ball completely through the test template. The length of the cut. Calculate the percentage of tape length cut. If 50% of the tape is split, the edge is considered sharp.

2. The edge to be tested shall be the accessible edge determined by the accessibility test of the toy part or component.

3. If the toy's overall touchable edges cannot be tested, in the case of a simulated toy as a whole, the accessible edge can be removed and tested separately.

4. The key to the sharp edge test is how to fix the detected edge and ensure that the mandrel is at right angles to the edge, and there is no relative movement between the mandrel and the edge in the test.

5. During the rotation of the mandrel, it should be ensured that the pressure applied to the mandrel is a constant stability.
