Electrical Force Measuring Instruments for Computer Keyboard Excel Report
Electrical Force Measuring Instruments for Computer Keyboard Excel Report
Electrical Force Measuring Instruments for Computer Keyboard Excel Report
Electrical Force Measuring Instruments for Computer Keyboard Excel Report
Specifications
Brand Name :
Infinity Machine
Model Number :
RS-6900B
Certification :
CE, ISO
Place of Origin :
Made in China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 sets per month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
Standard export wooden case with operation manual and video inside.
Capacity :
500gf(5N), 1000g(10N), 2000g(20N)
Effective testing range :
0.2%～100%F.S
Display :
Fp,Fc,Fm,Fr,Click%,The load force
Max testing range :
50mm
Range of test speed :
25mm/min～300mm/min
Via USB cable :
YES
Dimension :
320x220x380mm
Weight :
13kg
Description

Electrical Force Measuring Instruments for Computer Keyboard Excel Report

Model: RS-6900B

Purpose:

Keys of computer

keypads of mobile phone

Keypads of Calculator, telephone, remote control

Conducting rubber buttons

Metal, spring buttons

Buttons for the other electronic products

And all kinds of touch switch

Application:

Can display the FP,FC,FM,FR, Rate of clicking, and the force value after testing.

The stable speed of this tester has enhanced the precision of repeatability and that avoid the unstable problem by the hand loading testing.

Can set the testing speed on the control panel: the speed adjustable range is 10~300mm/min, And can display the value of current position change. To press the button of TEST, the testing will start, and it will automatically come back to the original position after finishing the testing, the meters have the auto-reset function, that can help the testing efficiency.

This tester has high capacity, high intelligence, the meter can auto save the data up to 800 sets, and can auto judge the pass or failure according to the setting after the testing finish.

Can use USB to export to the EXCEL to create the report

This tester is suitable for the on-site testing for the quality control and for the engineering reference.

Specification:

Model RS-6900B
Capacity (optional) 500gf(5N), 1000g(10N), 2000g(20N)
Unit (switchable) N, Kgf, gf, Lbf
Resolution 1/10,000
Load accuracy ±0.2%F.S
Effective testing range 0.2%～100%F.S
Allowable Overload 150%
Display Fp,Fc,Fm,Fr,Click%,The load force
Max testing range 50mm
Range of test speed 25mm/min～300mm/min
Accuracy ±1%
Via USB cable Yes
Dimension (WxDxH) 320x220x380mm
Weight 13kg

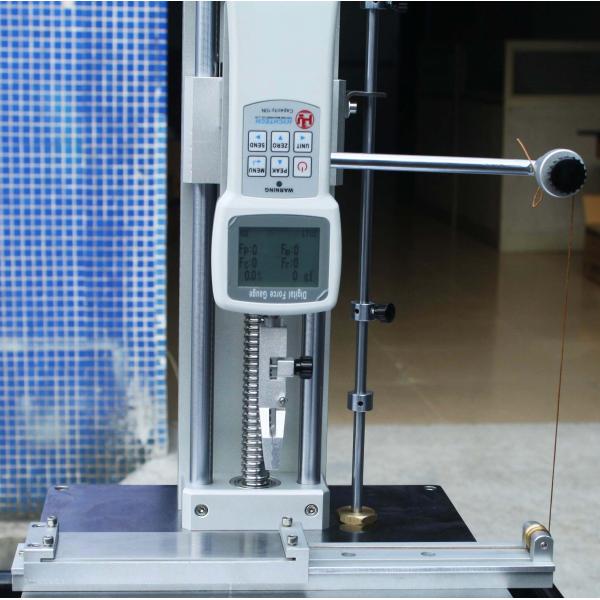

Picture:

Electrical Force Measuring Instruments for Computer Keyboard Excel Report
