Glass Compressive Bending Test Machine 3 / 4 Points with Closed Loop

Model: RS-8000SA

Purpose:

The machine is suitable for 3, 4-points bending test of tempered glass, and also tensile, compression, flexural, peel, shear, tear, bursting, , fatigue tests for wire, metal foil, sheet metal and metal tape, rubber, plastic, air / sea foam, waterproof materials, wire and cable, textile fabrics, net rope, non-woven material by equipped with the different fixtures.

Typical applications:

Glass 3-points bending test
Glass 4-points bending test
Glass compressive strength test
Metal / sheet tensile test
Rubber / plastic tensile test
Metal / plastic bending test
Tape 900/1800 peel strength test
FPC pull test
Beverage packaging compression / bursting force test
The product holding force (Constant) Test
Low cycle fatigue (loop) test
Metal timber three-point bending test
Environmental plywood adhesive force test
The composite woven packaging with strength test

Applications:

Glass, metal, ceramic, composite, tape, Food and medical equipment, paper, plastic, rubber, communication.

Specification:

Features:

1. High-precision:
Use Panasonic AC servo motor to drive, and ABBA high precision ball screw for transmission, with high precision explosion-proof LOADCELL from U.S. TRANSCELL, the force accuracy can be ± 0.25%, the displacement accuracy is up to 0.001mm.

2. High intelligence:
Automatically determine the fracture, automatic return, the force units are free to switch languages switchable: Simplified / Traditional Chinese, English. Load - displacement, load - time, displacement - time stress - strain, strain - time, stress - time multi-curve analysis.

3. Test report:
Statements developing is based the Crystal Reports10.0 version, can automatically calculate the strength, elastic modulus E RP0.2 ReL, ReH, elongation, content can be freely altered ,curve automatically generated. Can be exported to Excel, PDF, HTML and other formats.

4. Language of software: English

Fixture:

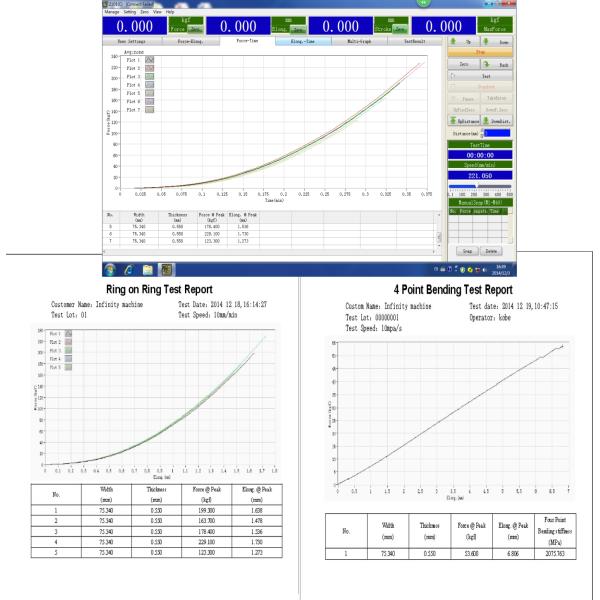

Test software and report:
