Drop Package Testing Equipment Digital Displayer / Drop Impact Test Equipment
Drop Package Testing Equipment Digital Displayer / Drop Impact Test Equipment
Specifications
Brand Name :
Infinity Machine
Model Number :
RS-315/RS-320
Certification :
CE, ISO
Place of Origin :
Made in China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 sets per month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
Standard export wooden case with operation manual and video inside.
Dropping Height Range :
300~1500mm/300~2000mm
Display :
Digital displayer
Height Accuracy :
≤2% of the setted value
Motor :
1/2HP
Dimension :
1700*1200*2515mm/1700*1200*2835mm
Weight :
About 750kg/800kg
Power :
AC380V 50Hz or specified by user
Warranty :
1 year
Description

Packaging Drop Test Machine with Digital Displayer/Drop Impact Test Equipment

Model: RS-315 / 320

Application:

This tester is suitable for testing the packing situation after free dropping and to evaluate the anti-impact strength in the process of shipping.

Specialties:

1. This tester is with structure design of single arm and double poles: this design can conquer the accident dropping in the Pneumatic design when

power is suddenly cut off or the air source is interrupted. It can be up and down stably and no trembling in the process of up and down.

2. Support arm is with electronic control resetting, no need hand resetting, which can avoid the accident by hand resetting operation.

3. Support arm is designed to be Electro-magnet withdrawing, and assisted by the pulling spring, which can make sure the testing samples can be

free dropping impact by sudden withdrawing of the support arm, the difference between real impact speed and free dropping impact speed is

within±1%.

4. Multi-functional sample supporter: Can rapidly fix the different size package to test the package edges, sides and corners.

5. Impacted base board is steel, and with flat surface.

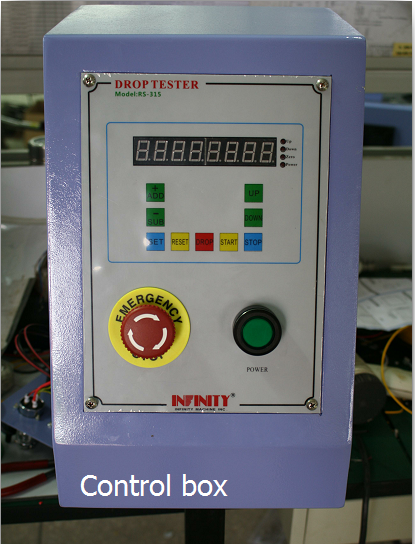

6.Control box:

Digital display design: Can display the current height of testing supporter in the process of up and down, the difference between real height and the display is within +/-2%.

Height setting control: Micro adjusting control, can rapidly set to the needed testing height.

Specification:

Model RS-315 RS-320
Dropping height range 300~1500mm 300~2000mm
Display Digital displayer
Height accuracy ≤2% of the setted value
Maximum load 100kg
Test space (LxWxH) 800x600x1000mm
Angle tolerance ≤5°
Motor 1/2HP
Dimension (WxDxH) 1700x1200x2515mm 1700x1200x2835mm
Weight About 750kg About 800kg
Power supply

AC380V 50Hz or specified by user

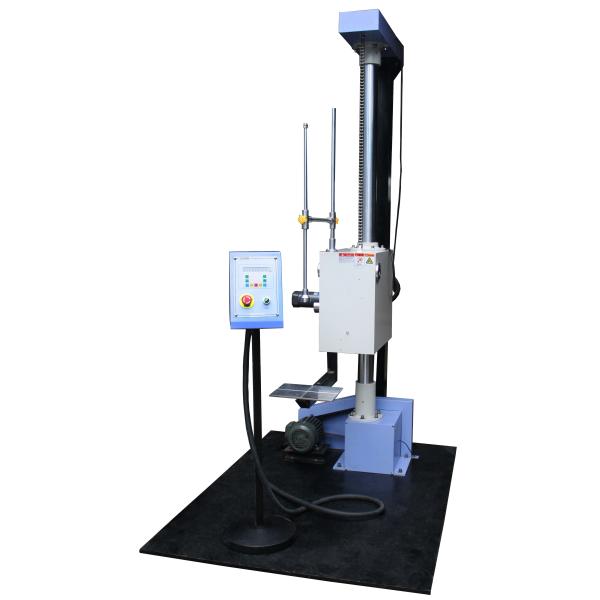

Product Show:

Drop Package Testing Equipment Digital Displayer / Drop Impact Test Equipment

Drop Package Testing Equipment Digital Displayer / Drop Impact Test Equipment

Package:

Drop Package Testing Equipment Digital Displayer / Drop Impact Test Equipment
