Specifications
Brand Name :
Infinity Machine
Model Number :
IE60313
Place of Origin :
Made In China
Certification :
CE,ISO
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
200 sets per month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
Standard export wooden case with operation manual and video inside.
Center distance inside the lamp :
70mm
Modulator Tube :
UVB-313 L=1200/40W,8 Piece
Effective irradiation region :
900×210mm
Temperature Fluctuation :
±0.5℃
Temperature Range :
RT+20℃~70℃
BoxStructure :
Indoor And Outdoor Boxes: SUS304# Stainless Steel Is Used In The Indoor And Outdoor Boxes
Irradiance :
Adjustable Within 1.0W/m2
carton size:(WxDxH(mm) :
1300*500*1360
Capacity :
250L
Humidity :
85%~98%RH
Temperature range :
± 0.5℃
Salt spray subside :
1.0~2.0ml/80cm2/h
Test room size :
900x600x450mm
Machine size :
1460x910x1280mm
Lab temperature :
NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C
Saturator temperature :
NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C
Power supply :
AC220V 15A or specified by user
Water way :
atered by itself while lack of water
Spray work time :
Precise spray can work 2000 hours without crystalled jam.
Body material :
Japanese PVC environmental protection & high anti-aging capability
Spray Material :
transparent PVC
SSR :
precisely digital thermal controller with spray protection system.
Standards :
GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371
Application :
This tester is used for the surface erosion resistance test of kinds of material processed by paint, plating, anodized.
Description

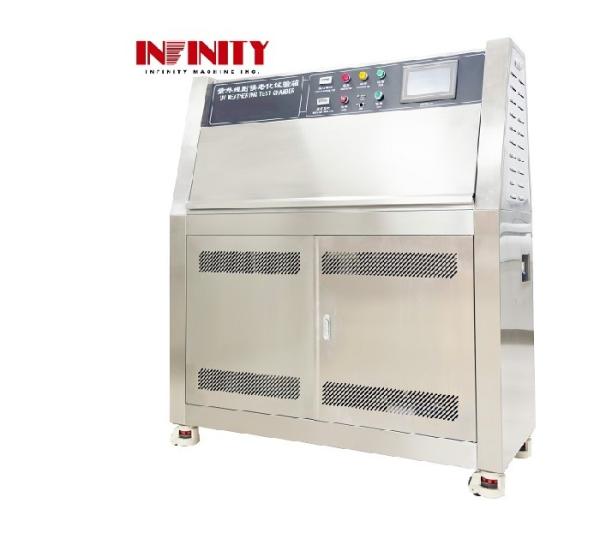

UV Weathering Test Chamber

Model Number:IE60313

High And Low Temperature UV Weathering Test Chamber Effective Irradiation Region 900×210mm

Product Description and Applications:

The UV Weathering Test Chamber uses fluorescent ultraviolet lamps that best simulate the UV spectrum of sunlight, and combines temperature control and humidity supply devices to compare the high temperature, high humidity, condensation, dark rain cycle and other factors that cause discoloration, brightness, strength decline, cracking, peeling, pulverization, oxidation and other damage to the material in sunlight (UV segment). At the same time, through the synergistic effect between ultraviolet light and moisture, the single light resistance or single moisture resistance of the material is weakened or failed, so it is widely used to evaluate the weather resistance of the material.

Features:

  • Using the original Q-LAB lamp, the light stability is good, and the test results are high reproducibility.
  • Provides the best sunlight UV simulation, low maintenance and easy to use.
  • Automatic operation of equipment control, automatic test cycle, saving labor, improve test efficiency.

Technical Parameters:

Parameters Details
Model Number

IE60313

Temperature Range RT+20℃~70℃
Humidity Range ≥90%RH
Temperature Fluctuation ±0.5℃
Temperature Uniformity ≦1.0℃
Center distance inside the lamp 70mm
The distance between the specimen and the center of the lamp 50±3mm
Modulator Tube

UVB-313 L=1200/40W,8pieces

Irradiance

Adjustable within 1.0W/m2

Ultraviolet Wavelength

280-315nm

Effective irradiation region 900×210mm
Irradiated blackboard temperature 50℃~70℃
Interior dimension:WxHxD(mm) 1140*400*390
Carton size :WxDxH(mm) 1300*500*1360

Box Structure

Indoor and outdoor boxes: SUS304# stainless steel is used in the indoor and outdoor boxes
Specimen Holder Aluminum frame type base frame vision plate, 24 pay
Standard sample size 75×290mm(Special specifications need to be specified)
Safety protection device Leakage circuit breaker control circuit, overload, short circuit alarm, overtemperature alarm, water shortage protection
Power Supply AC220V;50Hz;5KW


Applicable Standard:

  • ASTM D4329,D499,D4587,D5208,G154,G53;
  • ISO 4892-3,ISO 11507;
  • EN 534;EN 1062-4;BS 2782;JIS D0205;SAE J2020

Support and Services:

Infinity company provide technical support and service for UV Weathering Test Chamber. Our team is trained to provide quality service to our customers. We offer 24/7 phone support, email support, and live chat support. We also offer on-site installation and maintenance services. Our technicians are experienced and knowledgeable to ensure that your system runs smoothly. We also have a network of authorized service centers to provide service and support in your area. If you have any questions or concerns about your UV Weathering Test Chamber, please contact us and we will be happy to help.

Packing and Shipping:

Packaging and Shipping for UV Weathering Test Chamber:
The UV Weathering Test Chamber should be securely packaged to protect it from damage during shipping. The packaging should include foam, cushioning, and secure fasteners. The shipping container should be strong enough to withstand the weight and dimensions of the UV Weathering Test Chamber.
The shipping address must be provided in advance to the shipping company, and any special instructions must also be provided. All necessary documents, such as the bill of lading, should be included with the shipment.
The UV Weathering Test Chamber should be inspected upon delivery to ensure that it has not been damaged during transit. If any damage is found, the shipping company should be notified immediately.
