IE10A Series 20%R.H～98%R.H Temperature And Humidity Testing Environmental Test Chamber
IE10A Series 20%R.H～98%R.H Temperature And Humidity Testing Environmental Test Chamber
IE10A Series 20%R.H～98%R.H Temperature And Humidity Testing Environmental Test Chamber
IE10A Series 20%R.H～98%R.H Temperature And Humidity Testing Environmental Test Chamber
IE10A Series 20%R.H～98%R.H Temperature And Humidity Testing Environmental Test Chamber
IE10A Series 20%R.H～98%R.H Temperature And Humidity Testing Environmental Test Chamber
Specifications
Brand Name :
Infinity Machine
Model Number :
IE10A series
Certification :
CE ISO
Place of Origin :
Made In China
MOQ :
1
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200SETS PER MONTH
Delivery Time :
20-30 days after order confirmed
Packaging Details :
Clear sheet+sponge+wood carton
Product name :
Programmable Constant Temperature and Humidity Test Chamber
Model :
IE10A series
Temperature range :
-70℃ ～ +150℃
Humidity control range :
20%R.H～98%R.H
Sample holder :
Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer.
Condenser system :
Air-cooled
Power :
Electronic
Warranty :
1 Year
Description

IE10A Series 20%R.H～98%R.H Temperature and Humidity Testing Environmental Test Chamber

Product model: IE10A series

Equipment Overview:

This series of constant temperature and humidity box is suitable for environmental simulation reliability test of industrial products, with the characteristics of temperature and humidity control accuracy and wide control range, and the performance indicators meet the requirements of GB5170.2.3.5.6-95 "Low temperature, high temperature, constant wet heat, alternating-wet heat test equipment for environmental test equipment of electrical and electronic products basic Parameter Verification Method".

Range of application:

Suitable for electrical, electronic, mechanical and other products, parts, materials and other products, high and low temperature, wet and hot test, simulate the temperature and humidity change conditions of products, parts, materials and other quality and reliability test.

Applicable standards:

  • GB-2423.1-2008(IEC68-2-1) Test A: low temperature test method.
  • GB-2423.2-2008(IEC68-2-2) test B: high temperature test method.
  • GJB360.8-2009(MIL-STD.202F) High temperature life test.
  • GJBl50.3-2009(MIL-STD-810D) High temperature test method.
  • GJBl50.4-2009(MIL-STD-810D) Low temperature test method.
  • GB2423.3-2008(IEC68-2-3) Test Ca: constant wet heat test method.
  • GB2423.4-2008(IEC68-2-30) test Db: alternating wet heat test method.
  • GJBl50.9-2009(MIL-STD-810D) wet heat test method.

Specification parameter:

Model IE10A150L

IE10A225L

 IE10A408L IE10A800L IE10A1000L
Temperature range

-70℃ ～ +150℃
Temperature fluctuation

±0.5℃
Temperature uniformity

≦2.0℃
Heating rate

From -70℃ to +100℃ within 90min (No load, ambient temperature +25℃)
Temperature decrease rate

From +20℃ to -70℃ within 90min (No load, ambient temperature +25℃)
Humidity control range

20%R.H～98%R.H
Humidity deviation

±3.0％RH(＞75％RH)

±5.0％RH(≤75％RH)
Humidity uniformity

±3.0％RH (no-load test)
Humidity fluctuation

±1.0％RH

Inner box size:

WxHxD(mm)

 500x600x500

500x750x600

 600×850×800 1000×1000×800 1000×1000×1000

Outer box size

WxHxD(mm)

 720×1500×1270

720×1650×1370

 820×1750 ×1580 1220×1940 ×1620 1220×1940 ×1820
Warm-box

● Outer wall material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole

● Inner wall material :SUS304# stainless steel plate.

●Insulation material: hard polyurethane foam insulation layer + glass fiber.
Door For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature.
Inspection window The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation.
Lighting device

1 LED lighting device, installed on the window.
Sample Holder

Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer.
Refrigeration compressor

France Tecumseh fully closed compressor (2 sets)
Coolants Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic
Condenser system

Air-cooled
Safety protection device

Heater anti-burning protection; Humidifier anti-burn protection; Heater over current protection; Humidifier over current protection; Circulating fan over current overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor over current protection; Over voltage under inverse-phase protection; Circuit breaker; Leakage protection; Humidifier low water level protection;

Tank low water level warning.
Power supply AC220V;50Hz;5.5KW AC380;V50Hz;7KW AC380;V50Hz;9KW AC380;V50Hz;11KW AC380;V50Hz;13KW

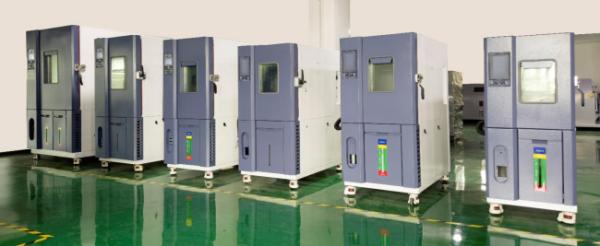

Equipment picture:

IE10A Series 20%R.H～98%R.H Temperature And Humidity Testing Environmental Test Chamber

Support and Services:

Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.

Product Packaging:

The Environmental Test Chamber will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
