Economical Four Stations Mechanical Button Testing Machine for Notebook Life Test
Economical Four Stations Mechanical Button Testing Machine for Notebook Life Test
Economical Four Stations Mechanical Button Testing Machine for Notebook Life Test
Economical Four Stations Mechanical Button Testing Machine for Notebook Life Test
Specifications
Brand Name :
Infinity Machine
Model Number :
IN-8330C-4
Certification :
CE ISO
Place of Origin :
Made In China
MOQ :
1
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200SET PER MONTH
Delivery Time :
20-30 days after order confirmed
Packaging Details :
Clear sheet+sponge+wood carton
Product name :
Four Stations Mechanical Button Testing Machine
Model :
IN-8330C-4
Test force range :
200gf~1000gf (or specified)
Test speed :
1~60cycles/min
Test Times :
1~999999cycles settable
Application :
Suitable for long-term click life testing of buttons on various portable small electronic products
Power :
Electronic
Warranty Period :
1 year
Description

Economical Four Stations Mechanical Button Testing Machine Used for Notebook Life Test

Model:IN-8330C-4

Application:

Suitable for long-term click life testing of buttons on various portable small electronic products, such as mobile phones, tablets, laptops, various remote controls, keyboards, etc.

Features:

  • Can test mechanical and electrical lifespan (on/off conductivity test)
  • Each testing station can test three buttons at a time, with adjustable pressure and a calibration system to control the impact force

Technical Parameter:

Model

IN-8330C-4

Test station

4sets

Click on the lever

3 pressing rods per workstation
Click on the probe ¢6mm spherical silicone head, Shore hardness: 50±5° (or specified) can be customized with the same hardness conductive rubber head for tapping touch screen
Test force range

200gf~1000gf (or specified)
Test speed

1~60cycles/min
Test Times

1~999999cycles settable
Dimension (WxDxH)

W850xD480xH1100mm
Weight

260 kg
Power Supply

AC220 50Hz 3A or specified by user

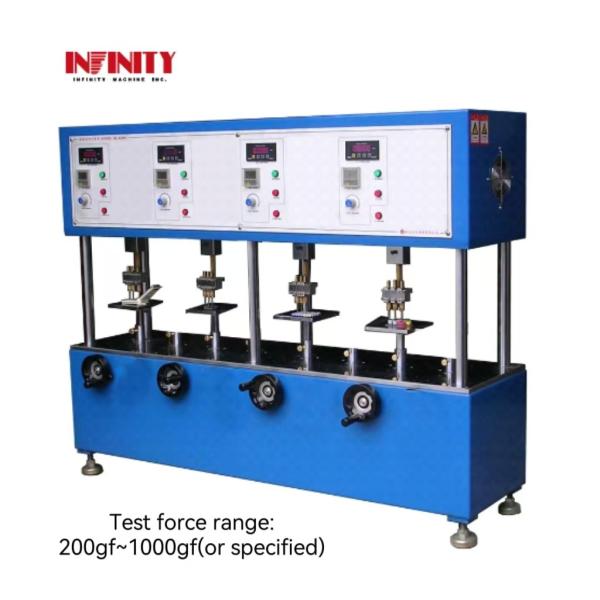

Machine appearance:

Economical Four Stations Mechanical Button Testing Machine for Notebook Life Test

Support and Services:

Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.

Product Packaging:

The Keyboard Button Tester will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
