Easy Operation ISO Standard UV Climatic Chamber With Original Q-LAB Lamp
Easy Operation ISO Standard UV Climatic Chamber With Original Q-LAB Lamp
Easy Operation ISO Standard UV Climatic Chamber With Original Q-LAB Lamp
Easy Operation ISO Standard UV Climatic Chamber With Original Q-LAB Lamp
Specifications
Brand Name :
Infinity Machine
Model Number :
IE61 series
Certification :
CE ISO
Place of Origin :
Made In China
MOQ :
1
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
200SET PER MONTH
Delivery Time :
20-30 days after order confirmed
Packaging Details :
Clear sheet+sponge+wood carton
Product name :
UV climatic chamber
Model :
IE61 series
Temperature range :
RT+20℃~70℃
Humidity range :
≥90%RH
Power :
Electronic
Warranty :
1 year
Description

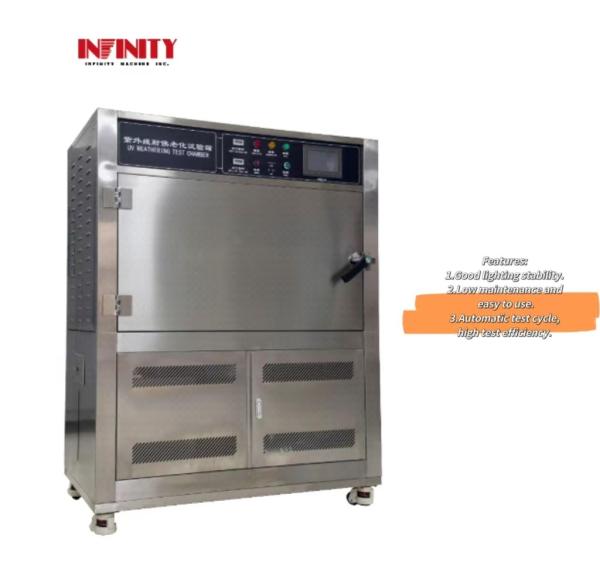

UV Climatic Chamber

Product model: IE61 series

Equipment Overview:

This series uses fluorescent ultraviolet lamps that best simulate the UV spectrum of sunlight, and combines temperature control and humidity supply devices to compare the high temperature, high humidity, condensation, dark rain cycle and other factors that cause discoloration, brightness, strength decline, cracking, peeling, pulverization, oxidation and other damage to the material in sunlight (UV segment). At the same time, through the synergistic effect between ultraviolet light and moisture, the single light resistance or single moisture resistance of the material is weakened or failed, so it is widely used to evaluate the weather resistance of the material.

Applicable standards:

1.ASTM D4329,D499,D4587,D5208,G154,G53；

2.ISO 4892-3,ISO 11507；

3.EN 534；EN 1062-4；BS 2782；JIS D0205；SAE J2020

Features:

1. Using the original Q-LAB lamp, the light stability is good, and the test results are high reproducibility.

2. Provides the best sunlight UV simulation, low maintenance and easy to use.

3.Automatic operation of equipment control, automatic test cycle, saving labor, improve test efficiency.

Specification parameter:

Model number

IE61304

IE61313
Temperature range

RT+20℃~70℃
Humidity range

≥90%RH
Temperature fluctuation

±0.5℃
Temperature uniformity

≦1.0℃
Center distance inside the lamp

70mm
The distance between Sample and the center of the lamp

50±3mm
Modulator tube /lamp UVA-340 L=1200/40W,8 pieces UVB-313 L=1200/40W,8 pieces
Irradiance Adjustable within 1.2W/㎡ Adjustable within 1.0W/㎡
Ultraviolet wavelength

315-400nm

280-315nm
Effective irradiation region

900×210mm
Irradiated blackboard temperature

50℃~70℃
Inner box size:WxHxD(mm)

1180*650*600
Outside box size:WxDxH(mm)

1300*620*1630
Box structure Indoor and outdoor boxes: SUS304# stainless steel is used in the indoor and outdoor boxes

Sample holder

Aluminum frame type base frame vision plate, 24 pcs
Standard sample size

75×290mm(Special specifications need to be explained)
Safety protection device Leakage circuit breaker control circuit, overload, short circuit alarm, over-temperature alarm, water shortage protection
Power supply

AC220V;50Hz;5KW

Our services:

Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.
