High Precision Random Key Life Tester For Computer Keyboard Lifespan Test
High Precision Random Key Life Tester For Computer Keyboard Lifespan Test
High Precision Random Key Life Tester For Computer Keyboard Lifespan Test
High Precision Random Key Life Tester For Computer Keyboard Lifespan Test
Specifications
Brand Name :
Infinity Machine
Model Number :
IN-8330A2
Certification :
CE ISO
Place of Origin :
Made In China
MOQ :
1
Price :
Negotiate
Payment Terms :
T/T, MoneyGram, L/C
Supply Ability :
200SET PER MONTH
Delivery Time :
20-30 days after order confirmed
Packaging Details :
Clear sheet+sponge+wood carton
Product name :
High Precision Random Key Life Tester
Model :
IN-8330A2
Application :
Suitable for testing the impact life of silicone rubber keys
Power :
Electronic
Warranty :
1 Year
Description

High Precision Random Key Life Tester

Model:IN-8330A2

Application:

This machine is suitable for computer Keyboard, Note-book keyboard, mobile phone, calculator, e-book, electronic dictionary, gamepad, remote control and other keys to do life test, especially suitable for silicone rubber as a key strike life test.

Features:

1.Japan Panasonic® servo motor +SHIMPO® planetary reducer drive, low noise, durable use；
2.Using the load adjusting probe hitting button, and equipped with a special probe load correcting table and electronic weight correcting the load adjusting probe output, the striking force can be accurately controlled and the mechanical fatigue life of the key can be truly reflected.
3.The machine adopts Japan THK® high steel bearing steel as support, Japan THK® linear bearing transmission, durable use; The test table is made of aluminum, anodized, the surface is wear-resistant and textured, and it is equipped with holes for keyboard clamping positioning.
4.Japan OMRON®7"TFT color touch screen +Mitsubishi® PLC control, English and Chinese operation interface, two test modes: continuous test mode -- rapid continuous test mode; Intermittent test mode -- to meet the test requirements of press down and hold time, you can set the press down and hold time 0.1~99.99sec, and the rise (pressure head leaves the key) hold time 0.1~99.99sec. Test times 0~99999999 times can be set, with power failure memory function, reach the set number of automatic stop. Test speed: 60~360 times /min in continuous test mode, 5~100 times /min in intermittent test mode.
5.With high rigidity guide groove, can move back and forth, the probe can move left and right, basically can measure any key.
6.The XY axis is added to the sample platform, and the button is moved according to the setting pattern when clicked, so that the click position is random and closer to the actual simulation test.

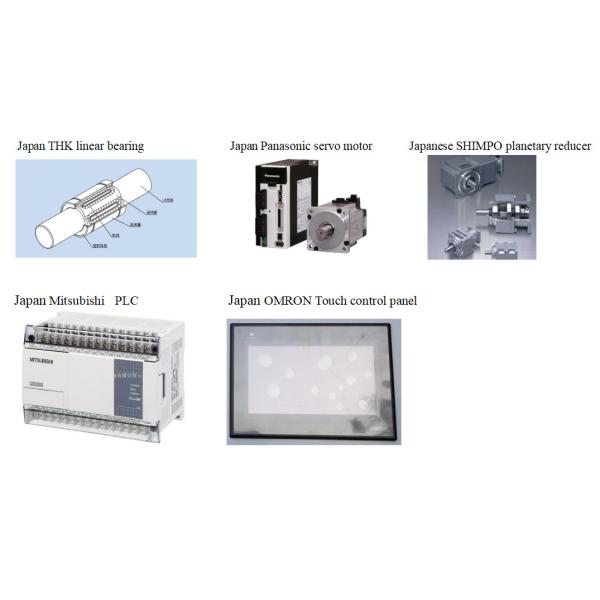

Key components:

High Precision Random Key Life Tester For Computer Keyboard Lifespan Test

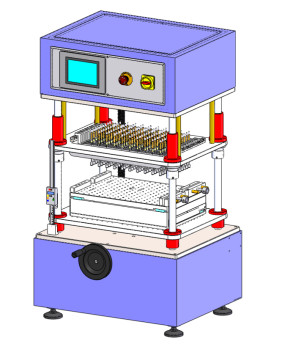

Equipment appearance:

High Precision Random Key Life Tester For Computer Keyboard Lifespan Test

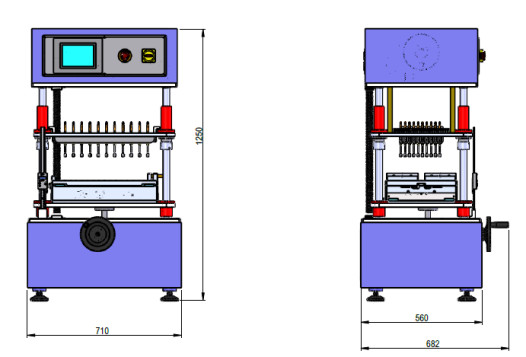

Machine size drawing (unit: mm)

High Precision Random Key Life Tester For Computer Keyboard Lifespan Test

Accessories diagram:

High Precision Random Key Life Tester For Computer Keyboard Lifespan Test

Technical parameters:

Model

IN-8330A1
Test trip

10mm
Press head diameter 10mm(Shore hardness 65, white silicone head, contact surface is flat)
Under pressure

100~1000gf
Minimum interval between two probes

X direction 10mm,Y direction 12mm
Electronic weighing capacity

2000gf (resolution 0.1gf), accuracy level 1
Workbench lifting range

0~150mm hand lift, with digital display height ruler
Sample holding range

430x320mm
Probe mounting range

430x320mm
Press down on holding time

0.1~99.99 seconds(can be set)
Ascent residence time

0.1~99.99 seconds(can be set)
Cycle number setting

0~99999999 times(can be set)
Testing speed

Continuous test mode 60 to 360 times /min

Intermittent test mode 5 to 100 times /min
Test pattern

Continuous test mode, intermittent test mode
The XY platform can bear the maximum power

60Kg
XY platform moving speed range

1~20mm/s
XY platform travel range

±15mm

Accessories

 Load adjustment probe 40 (optional), probe fixing rod 6 (optional), load correction table (standard), electronic weight (2000gf) standard, large clamping fixture 1 set
Volume

W710x D682 x H1250mm
Weight

259kg
Power supply

1∮,AC220V, 5A

Our services:

Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.
