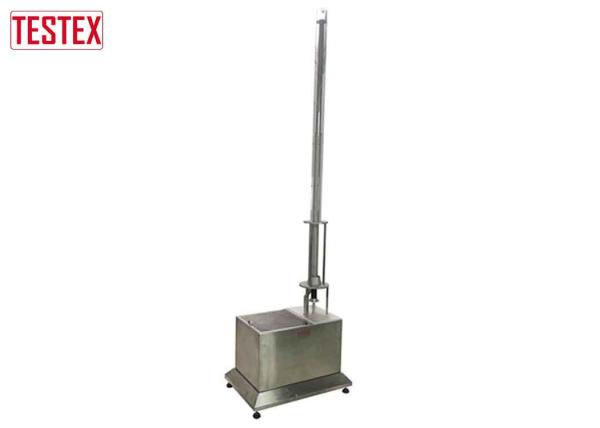

Stainless Steel Bath Type Rainproof Tester Water Column Height 600mm - 2400mm
Stainless Steel Bath Type Rainproof Tester Water Column Height 600mm - 2400mm
Stainless Steel Bath Type Rainproof Tester Water Column Height 600mm - 2400mm
Stainless Steel Bath Type Rainproof Tester Water Column Height 600mm - 2400mm
Specifications
Brand Name :
TESTEX
Model Number :
TF161
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,D/A,T/T,Western Union,MoneyGram, In Cash
Supply Ability :
300 Set/Sets per Month
Delivery Time :
30 days
Packaging Details :
Standard exporting wooden case
Test dimensions :
200 x 200 mm
Sample nip width :
152 mm
Sample nip space between :
165 mm
Sample nip dimensions :
178 x 279 mm
Nozzle diameter :
0.99 ± 0.013 mm
Nozzle space between sample :
305 mm
Weight :
139 kg
Dimensions :
460 x 460 x 3300 mm (L x W x H)
Description

Rainproof Tester With Stainless Steel Bath And Water Column Height Is 600mm - 2400mm​

Application

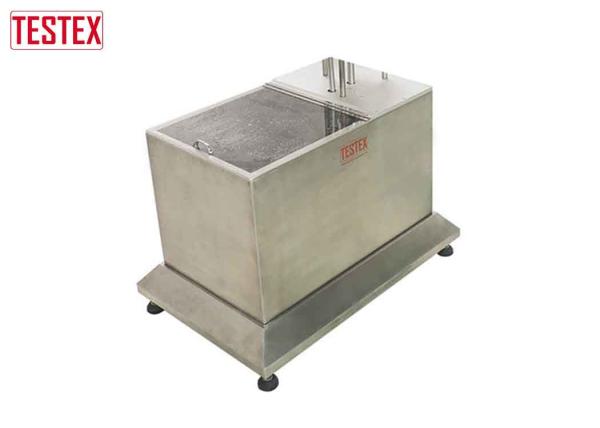

Rainproof Tester, is to determine the penetration resistance of fabrics or composites at different intensities of water impact. Simulated rain horizontally impacts fabric samples mounted vertically in a stainless-steel bath. Samples are backed with a standardized blotting paper, which is weighed before and after each test. The rain is formed by a column of water, which can be adjusted from 600mm to 2400 mm.

Specifications

  • Test dimensions 200 x 200 mm
  • Sample nip width 152 mm
  • Sample nip space between 165 mm
  • Sample nip dimensions 178 x 279 mm
  • Nozzle diameter 0.99 ± 0.013 mm
  • Nozzle space between sample 305 mm

Optional order

AATCC Blotting Paper 500 x 1000 mm (20 x 40 in) 25 Sheets

Standards

AATCC 35, BS EN ISO 22958, GB/T 23321

Weight

139 kg

Dimensions

460 x 460 x 3300 mm (L x W x H)
