Roller Size 125mm*300mm Dyeing Lab Equipment With 500ml Chemical Trough Capacity
Roller Size 125mm*300mm Dyeing Lab Equipment With 500ml Chemical Trough Capacity
Roller Size 125mm*300mm Dyeing Lab Equipment With 500ml Chemical Trough Capacity
Roller Size 125mm*300mm Dyeing Lab Equipment With 500ml Chemical Trough Capacity
Roller Size 125mm*300mm Dyeing Lab Equipment With 500ml Chemical Trough Capacity
Roller Size 125mm*300mm Dyeing Lab Equipment With 500ml Chemical Trough Capacity
Roller Size 125mm*300mm Dyeing Lab Equipment With 500ml Chemical Trough Capacity
Roller Size 125mm*300mm Dyeing Lab Equipment With 500ml Chemical Trough Capacity
Specifications
Brand Name :
TESTEX
Model Number :
TD630
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,D/A,T/T,Western Union,MoneyGram, In Cash
Supply Ability :
300 Set/Sets per Month
Delivery Time :
30 days
Packaging Details :
Standard exporting wooden case
Roller size :
Dia. 125 mm x 300 mm
Made of NBR rubber :
65℃ +/- 3 shore hardness
Pressure :
0.1 ~ 0.5mPa, 2 pressure gauges
Chemical trough :
capacity 500 ml
Temp. Range :
98-100℃
Steam :
Max 0.5mPa
Steaming :
Max 6 m, speed control 20 ~ 120 s adjustable inside the steaming chamber
Weight :
350 kg
Description

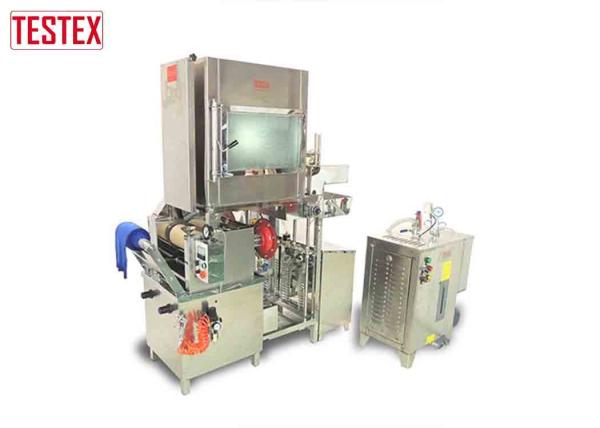

Lab Pad Steam Range With Roller Size Is 125mm * 300mm And 500ml Chemical Trough Capacity

Application

Lab Pad Steam Range, a combination of padding mangle and steamer, is used to carry out all pad steam processes with saturated steam, offering the shortest time 4 seconds between padder and steaming chamber, to avoid the disturbances and perform very good stability & repeatability on sulphur & vat dyestuff.

Pad steam range consists of padding mangle with two padding rollers, and a steaming chamber with fabric holding capacity of 6m, temperature range 98 ~ 100 ℃ for a dwell time 20 ~ 120 seconds.

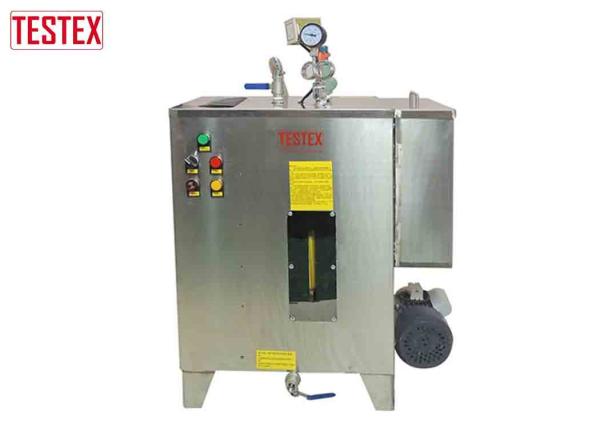

The steam generator is offered on request.

Specifications

Horizontal padder

  • Roller size Dia. 125 mm x 300 mm
  • Made of NBR rubber with 65o +/- 3 shore hardness
  • Pressure 0.1 ~ 0.5mPa, 2 pressure gauges
  • Chemical trough capacity 500 ml

Steamer

  • Steam Max 0.5mPa
  • Steaming Max 6 m, speed control 20 ~ 120 s adjustable inside the steaming chamber
  • All guide rollers inside the chamber is Teflon-coated
  • Water sealing bath at the outlet for automatic cooling control
  • Both steam inlet pipe and water inlet pipe size 1/2 inch are supplied by users

Power

380 V

Weight

350 kg

Dimensions

1700 x 1000 x 1980 mm (L x W x H)
