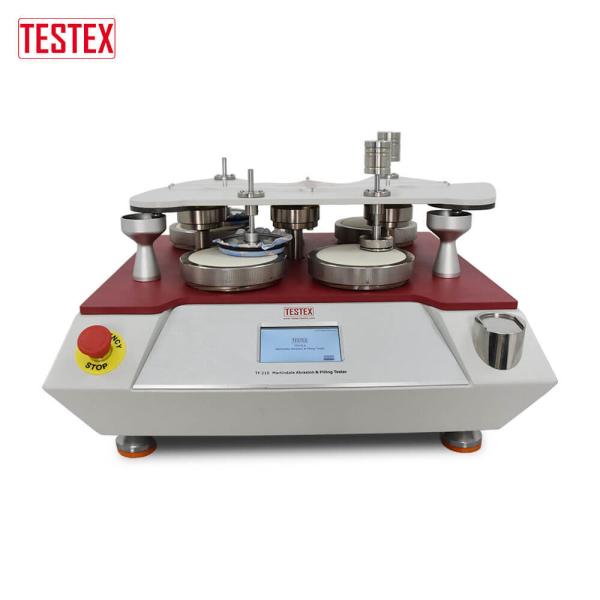

PLC Drive System Martindale Abrasion & Pilling Tester with Large Touch-screen

Application

Martindale Abrasion & Pilling Tester: This app can be utilized to work out the abrasion and pilling defiance of all types of textile structures. Pieces are rubbed against known abrasives with low pressures and infrequently changing directions. The quantity of abrasion or pilling is correlated against standard parameters.

The rare design of our Martindale abrasion pilling test machine grants the elimination of individual sample holders for a checkup without lifting the highest motion plate. It grants individual counters and parking function, intermission time settable and an outsized touch-screen display. Standard sample holders and 9 and 12kpa Weights are included. And lastly, the Martindale abrasion testing equipment is out there with 4, 6, or 9 test positions.

Specifications

Drive system is PLC, programmable control with large touch-screen

• Abrasion test

1. Max stroke of movement 5+/-0.5mm

2. Weight of holder and spindle 200+/-1g

• Pilling test

1. Max stroke of movement 24+/-0.5mm

2. Weight of holder and spindle 155+/-1g

​

Included Accessories (1 for each station)

• Abrasion test (To ISO 12947-1)

1. Mounting weight (2.5+/-0.5kg, for both abrasion and pilling test)

2. Pilling instruments holders (Dia. 38 mm)

3. Loading Weights (395+/-7g)

4. Loading Weights (595+/-7g)

• Pilling Test (To ISO 12945-2)

1. Linear adaptor. To convert to straight-line motion

2. Sample Retaining Rings for pilling test

3. Pilling test holders (Dia. 90mm)

4. Loading Weights (260+/-1g)

1 Auxiliary device for specimen mounting
1 Drawing pen

1 set of abradent fabric, wool felt, backing foam for each work station

Optional orders

• Specimen Cutter. (Dia. 38mm) with cutting mat.

• Abrasive Fabric & Backing Felt Cutter. (Dia. 140mm) with cutting mat.

• Standard Wool Abrasive Fabric SM25. 1.6M wide x 5M length – For abrasion test and pilling test (when automatic)

• Standard Backing Foam. Width 1.5M, Length 0.5M.

• Standard Backing Wool Felt Piece (woven) 1m x 1.5m.

• EMPA Photographic Standards for Pilling Test (3 x 4 knitted)

• EMPA Photographic Standards for Pilling Test (3 x 4 woven)

• SM 50 Photographs for Pilling Test IWS + ASTM.

​

​Standards

EN ISO 12945-2 ISO 12947-1 ISO 12947-2 ISO 12947-3

ISO 12947-4 ISO 20344 ASTM D4966 ASTM D4970

BS EN 388 BS EN 530 BS 3424 BS 5690

JIS L1096 DIN 53863 DIN 53865 GB/T 13775

SATRA TM31 IS 12673 IWSTM 112 IWSTM 196

IWTO 40-88 SFS 4328 NEXT 16 GMW 15651

ISO 5470-2 M&S 17 M&S 19 M&S 19C

NEXT 18 NEXT 18a NEXT 18b GB/T 4802.2

GB/T 21196-1 GB/T 21196-2 Wool Mark TM 112 Wool Mark TM 196
