UL94 Vertical / Horizontal Flammability Tester With Toughened Glass Door And Exhaust Fan
UL94 Vertical / Horizontal Flammability Tester With Toughened Glass Door And Exhaust Fan
UL94 Vertical / Horizontal Flammability Tester With Toughened Glass Door And Exhaust Fan
UL94 Vertical / Horizontal Flammability Tester With Toughened Glass Door And Exhaust Fan
UL94 Vertical / Horizontal Flammability Tester With Toughened Glass Door And Exhaust Fan
UL94 Vertical / Horizontal Flammability Tester With Toughened Glass Door And Exhaust Fan
UL94 Vertical / Horizontal Flammability Tester With Toughened Glass Door And Exhaust Fan
UL94 Vertical / Horizontal Flammability Tester With Toughened Glass Door And Exhaust Fan
Specifications
Brand Name :
TESTEX
Model Number :
TF328
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,D/A,T/T,Western Union,MoneyGram, In Cash
Supply Ability :
300 Set/Sets per Month
Delivery Time :
30 days
Packaging Details :
Standard exporting wooden case
Standards :
UL HB, UL94 V0, V1, V2, 5VA, 5VB, VTM-0, VTM-1, VTM-2, HF-1, HF-2, HBF. IEC 60695-11-10, 60707, ISO 1210, 9770, 9772, 9773, GB/T2408, 8332.
Weight :
180 Kg
Dimensions :
1200 x 600 x 1400mm (L x W x H)
Power :
220 /110 V 50/60 Hz
Warranty :
1 year
Port :
SHENZHEN
Color :
Customizable
Usage :
Flammability Testing Equipment
Description

UL94 Horizontal / Vertical Flammability Tester With Toughened Glass Door And Exhaust Fan

Application

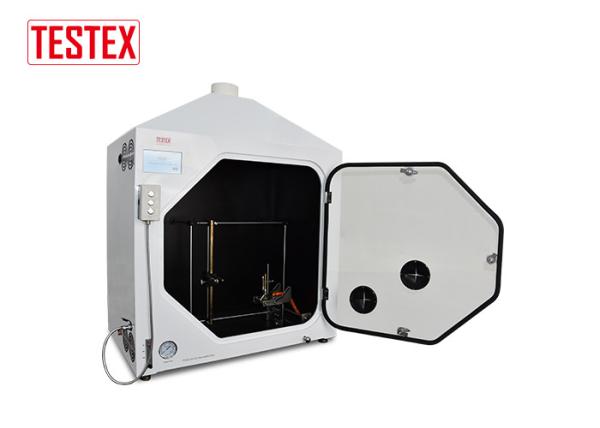

UL94 Horizontal &Vertical Flammability Tester, used to determine the flammability of plastic materials for parts in devices and appliances. The apparatus is supplied as a complete system incorporating all the features necessary for ease of use safety. It conforms to all five UL 94 horizontal and vertical burner tests and associated ASTM international standards.

Specifications and Features

  • A bench imounted draft free combustion chamber having a large inside volume of 1.0m3 and fitted with an interior light and exhaust fan to enable simple evacuation of combustion products.
  • Large door and window made from toughened safety glass giving a generous view of the specimen during a test.

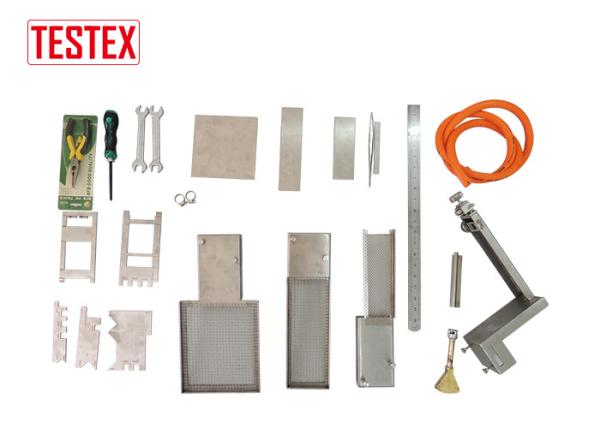

  • Specimen holders
  • Fully adjustable horizontal and vertical specimen supports.
  • A burner in compliance with ASTM D 5025, with simple angle adjustment (0°, 20°, 45°) and precision gas control system including gas flow meter, pressure regulator and pressure gauge.
  • Two access ports enabling easy entry to the chamber for movement of the burner and specimen.
  • A burner wing tip.

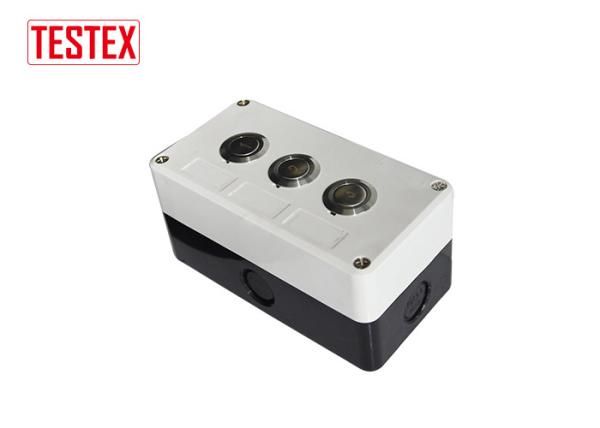

  • Three digital test duration timers for accurate but simplified operation

Standards

UL HB, UL94 V0, V1, V2, 5VA, 5VB, VTM-0, VTM-1, VTM-2, HF-1, HF-2, HBF.
IEC 60695-11-10, 60707, ISO 1210, 9770, 9772, 9773, GB/T2408, 8332.

Power

220 /110 V 50/60 Hz

Weight

180 Kg

Dimensions

1200 x 600 x 1400mm (L x W x H)

UL94 Vertical / Horizontal Flammability Tester With Toughened Glass Door And Exhaust Fan
