0-5 Kg Longitudinal Force 1-999,999times Adjustable Counter Zipper Tester
0-5 Kg Longitudinal Force 1-999,999times Adjustable Counter Zipper Tester
Specifications
Brand Name :
TESTEX
Model Number :
TF150
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,D/A,T/T,Western Union,MoneyGram, In Cash
Supply Ability :
300 Set/Sets per Month
Delivery Time :
30 days
Packaging Details :
Standard exporting wooden case
Speed :
30/min
Weight :
80 kg
Power :
220/110 V 50/60 Hz 4 A
Dimensions :
480 x 350 x 950 mm (L x W x H)
Description

0-5 Kg Longitudinal Force 1-999,999times Adjustable Counter Zipper Tester

Application

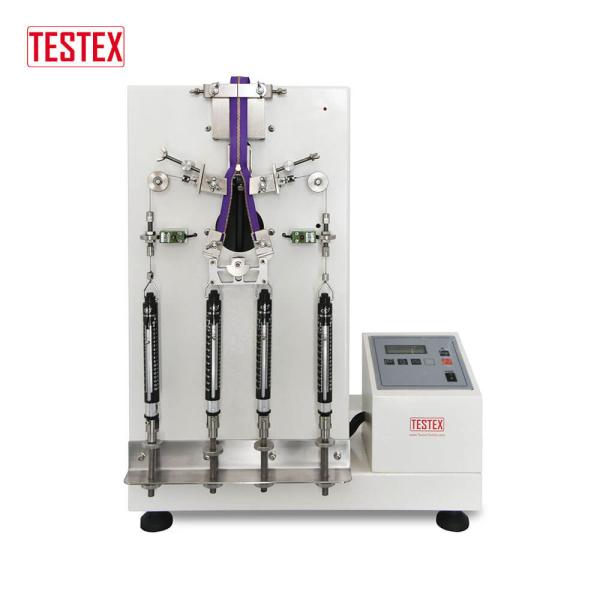

Zipper Reciprocation Tester is used to calculate how much resistance a zipper (slide fastener) has towards reciprocation. This is tested by putting the specimen through some cyclic operations while applying both longitudinal and lateral tension.


The machine then makes the head of the zipper to go through reciprocating movement at a constant speed of 30 times per minute. The operator then sets a pre-selected count using an integral counter so that the drive can be stopped when the count is reached.


It comes with a sensor that stops the machine automatically before the zipper breaks. The machine can also have an adjustable stroke of 40 ~ 100mm if requested.

Specifications

Speed

30/min

Lateral force

0-10 Kg

Longitudinal force

0-5 Kg

Counter

1-999,999times,adjustable

Standards

BS 3084 CNS -1083 QB/T 2171-1995

Power

220 / 110 V 50 / 60 Hz 4A

Weight

80 kg

Dimensions

480 x 350 x 950 mm (L x W x H)

0-5 Kg Longitudinal Force 1-999,999times Adjustable Counter Zipper Tester0-5 Kg Longitudinal Force 1-999,999times Adjustable Counter Zipper Tester
