REFOND Textile Testing Equipment 4 Boxes ICI Pilling And Snagging Tester Meet Most Retailer'S Required Test Methods
REFOND Textile Testing Equipment 4 Boxes ICI Pilling And Snagging Tester Meet Most Retailer'S Required Test Methods
Specifications
Brand Name :
REFOND
Model Number :
RF3184N
Certification :
ISO 17025/ CE
Place of Origin :
Shen Zhen, China (Mainland)
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
No limitation
Delivery Time :
1-2 weeks
Packaging Details :
Wooden Box
Warranty :
12 Months
Shipping :
Support Express · Sea freight · Land freight · Air freight
Product Positioning :
High Quality Positioning
item :
ICI Pilling And Snagging Tester
Description

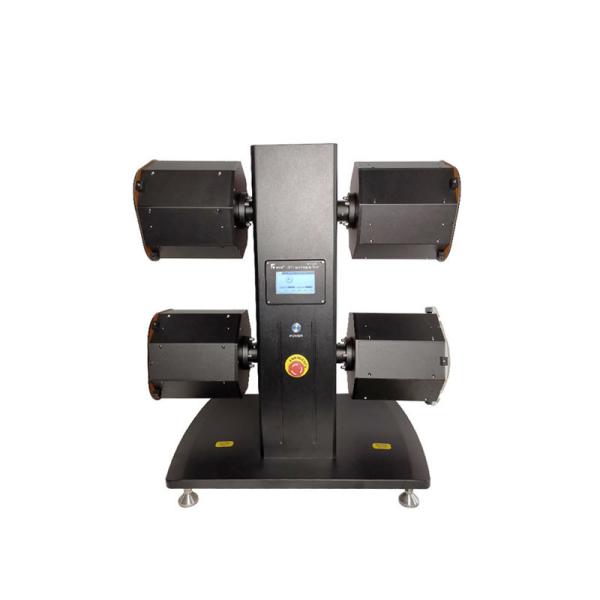

4 Boxes ICI Pilling And Snagging Tester

Specifications

- LCD display with unique program controller

- Pre-programmed standard test modes:with rotation speed of 60rpm or 30rpm and optional reversing mode

- Multi-selection of speed:20rpm,25rpm,30rpm,40rpm,50rpm,60rpm,70rpm

- Pilling or Snagging box:4 boxes (or 2 boxes for option)

- Magnetic liner back plate for quick installation and changing

- Snagging Box:Optional

- M&S Pilling and Snagging Box: Optional

- BS8479 Octagonal Snagging Drum: Optional

- Sample Mounting Jig:Optional

- Power: AC230V 50Hz/60Hz

- Dimension: 890(L)x640(W)x360(H)mm

- Weight: About 100kg

Product Instruction

ICI Pilling & Snagging Tester, mounting the test specimens onto the PU tubes and put them into the pilling box which has cork liner mounted on the 6 sides, rotating at a specified speed and direction, simulates the normal wear of fabrics. When specified cycles of rotation has been finished, compare the tested specimens with reference photographs for assessment of pilling.

- Equipped with 4 pilling boxes

- Built-in 60rpm, 30rpm, reversing testing mode

- 20rpm, 25rpm, 30rpm, 40rpm, 50rpm, 60rpm, 70rpm selectable

- Magnetic liner back plate for quick installation and changing

- LCD display for test parameters

- Multiple kinds of interchangeable test boxes for different testing standards

Test Scope

Replicate pilling or snagging on fabrics due to normal wear, applicable to most textiles.

Testing Standards

BS 5811 BS 8479 IWSTM 152
NEXT 19 M&S P18 M&S P18a
M&S P18b P21A GB/T 4802.3
ISO 12945.1

Ording Information

RF3184 ICI Pilling and Snagging Tester(4 box)

RF3182 ICI Pilling and Snagging Tester(2 box)

RF3180 ICI Mounting Jig

RF3184/1 ICI Pilling Box

RF3184/2 ICI Snagging Box

RF3184/3 Snagging Points(6pcs/box)

RF3184/4 Cork Liners(6 pcs/box)

RF3184/5 PU Tubes 140mm long(4 pcs/box)

RF3184/6 M&S PU Tubes & Locking Rings(8 sets/box)

RF3184/7 M&S Liner and Step

RF3184/8 M&S Pilling & Snagging Drum

RF3184/9 M&S Glass Bean Bag (4 bags/pack)

RF3184/10 BS8479 Octagonal Snagging Drum

RF3184/11 BS8479 Felt-Covered PU Tubes

REFOND Textile Testing Equipment 4 Boxes ICI Pilling And Snagging Tester Meet Most Retailer'S Required Test Methods REFOND Textile Testing Equipment 4 Boxes ICI Pilling And Snagging Tester Meet Most Retailer'S Required Test Methods

BS8479 Octagonal Snagging Drum M&S Pilling & Snagging Drum
