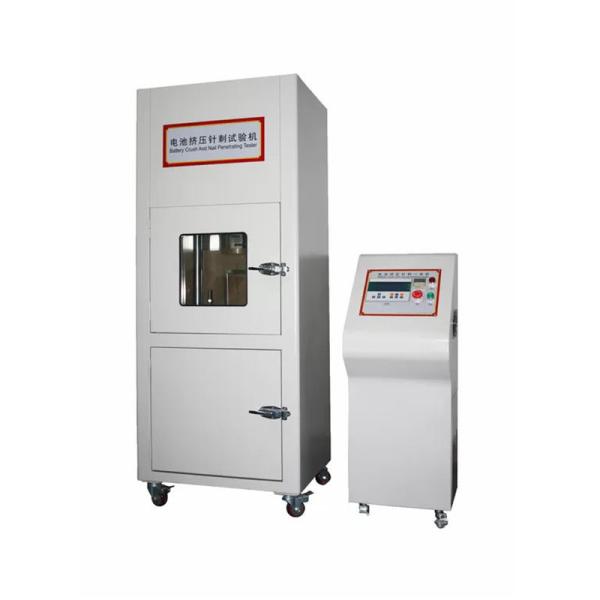

Squeeze Acupuncture Extrusion Lithium Storage 13kn Battery Tester Machine
Squeeze Acupuncture Extrusion Lithium Storage 13kn Battery Tester Machine
Squeeze Acupuncture Extrusion Lithium Storage 13kn Battery Tester Machine
Squeeze Acupuncture Extrusion Lithium Storage 13kn Battery Tester Machine
Specifications
Brand Name :
GESTER
Model Number :
GT-I06
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 sets/month
Delivery Time :
10-30 days
Packaging Details :
wooden packaging
Product Name :
Power Battery Squeeze Acupuncture Extrusion Testin
The Pressure :
13kn
Accuracy of The Force Display :
0.1n
Distance of Compression :
300mm
Price :
Factory Price
Use Power :
380V, 50~60Hz,
Dimension (Mainframe) :
66*53*168cm
Dimension (Controller) :
55*35*100cm
Warranty :
1 Year
Key Words :
Battery Squeeze Acupuncture Testing Machine
Description
lithium Storage Battery Squeeze Acupuncture Extrusion
Testing Machine

Application:

Power Battery Squeeze Acupuncture Extrusion Testing Machine is suitable for simulating various types of lithium battery storage batteries in the transportation, use, storage and disposal of household waste, the battery is squeezed by external force, and sharp objects penetrate the situation, the test results are used to evaluate the battery safety performance.


Key Specifications:
Model GT-I06
Power transmission method

Hydraulic Servo

A) Two plates grip the battery

B) When the tested sample is gripped by the two plates, it can begin to crush.
The pressure 13kN
Accuracy of the force display 0.1N
Resolution 1/10000
Compression Space W300×D300×H300mm(or custom with the battery size)
Distance of Compression 300mm
Test speed 0~100mm/s
Holding time 1s~9999h( arbitrary set)
Cable port Diameter 50mm on the left side of the chamber
Interior material A3 steel paint drying
Exterior material SUS#304
Power 380V, 50~60HZ,
Dimension (mainframe) 66×53×168cm
Dimension (controller) 55×35×100cm
Squeeze Acupuncture Extrusion Lithium Storage 13kn Battery Tester Machine
