Specifications
Brand Name :
GESTER
Model Number :
GT-MB06
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 set/month
Delivery Time :
10-30 days
Packaging Details :
wooden packaging
Power :
manual
Warranty :
1 year
Application :
toys and toy materials
Technology :
professional
Gester :
SGS audited supplier,TUV
Service :
Online support, installation and training
Description

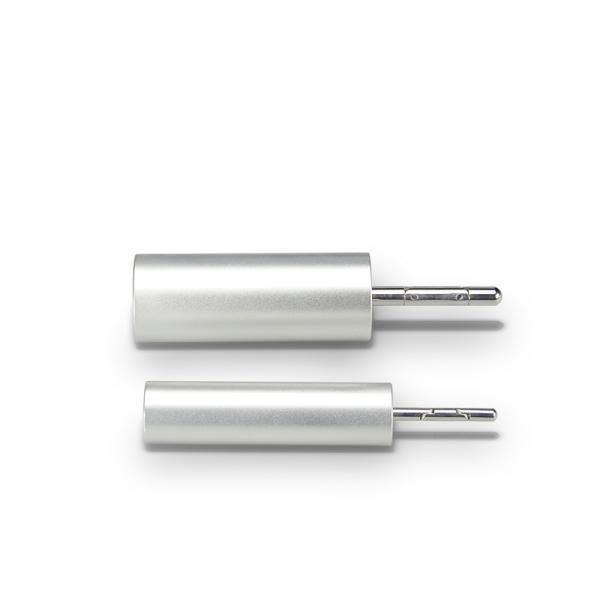

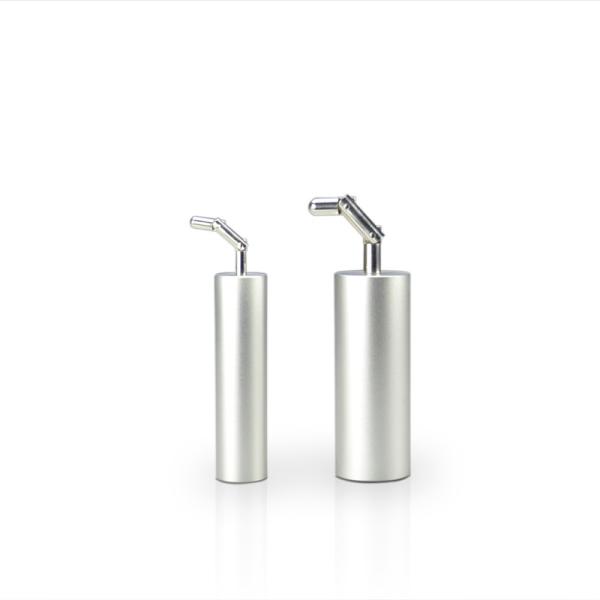

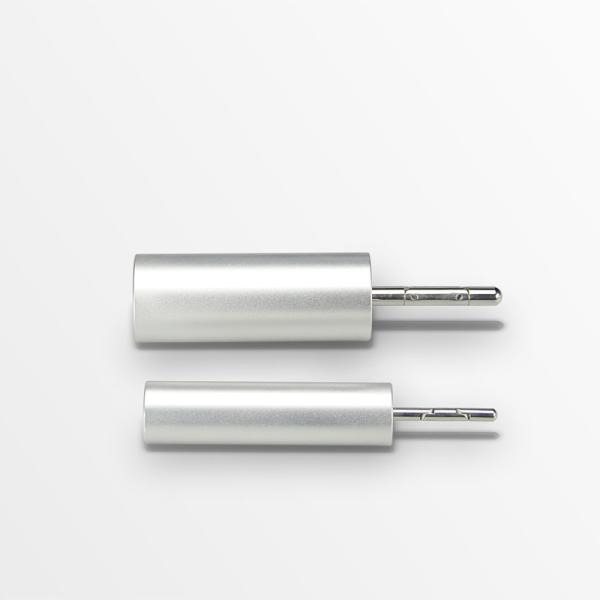

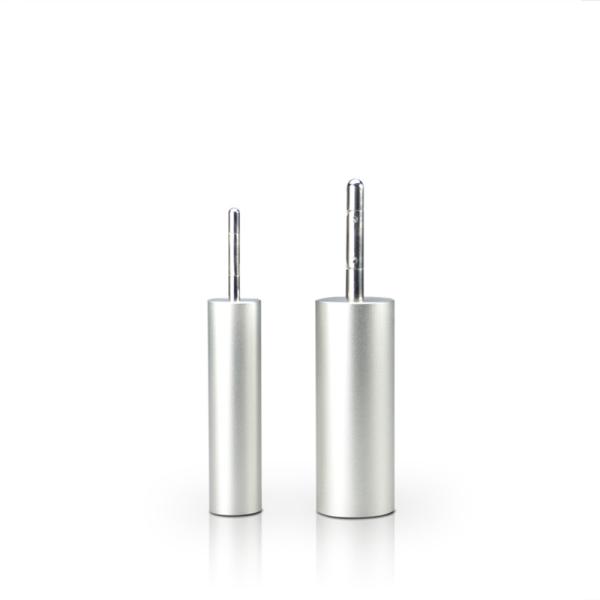

ISO 8124-1 Standard Test Finger Probe & Accessibility Probe

Product Introduction

Application:

Standard Test Finger Probe & Accessibility Probe is used to determine whether the hazardous parts of toys can be touched. If it is accessible, then conduct the related test according to standards so as to reduce the damage hazards for children.

This tools include 2 models: Probe A and Probe B:

1. An accessible part for a toy or article intended for children under 3 years of age is one that can be contacted by any portion forward of the collar of the accessibility probe designated as probe A.

2. An accessible part for a toy or article intended for children over 3 years up to 8 years of age is one that can be contacted by any portion forward of the collar of the accessibility probe designate as probe B.

3. An accessible part for a toy or article intended for children of ages spanning both age groups is one that can be contacted by any portion forward of the collar of either probe A or B.

Standards:

EN 71-1; ASTM F963; 16CFR 1500; ISO 8124-1; GB 6675-2

Key Specifications
Model GT-MB06 Probe A GT-MB06 Probe B
Applicable age Under 36 months Above 36 months
Finger diameter 5.6mm 8.6mm
Finger-tip radius of curvature 2.8mm 4.3mm
Finger total length 44.0mm 57.9mm
Finger single section length 14.7mm 19.3mm
Arm diameter 25.9mm 38.4mm
Arm length 101.6mm
Extension rod diameter 25.4mm 38.1mm
Extension rod diameter 464.3mm 451.6mm
Material Arm: Aluminum alloy
Finger: stainless steel
Dimensions (LxWxH) 25.9 x 25.9 x 146 mm 38.4 x 38.4 x 160 mm
Weight 300g 350g

Accessory

Optional accessories Optional Extension rod A
Optional Extension rod B

Finger diameter 5.6mm ISO 8124-1 Standard Test Finger Probe for toys
