PLC Screen Water Permeability SATRA TM77 Footwear Testing Machine
PLC Screen Water Permeability SATRA TM77 Footwear Testing Machine
PLC Screen Water Permeability SATRA TM77 Footwear Testing Machine
PLC Screen Water Permeability SATRA TM77 Footwear Testing Machine
PLC Screen Water Permeability SATRA TM77 Footwear Testing Machine
PLC Screen Water Permeability SATRA TM77 Footwear Testing Machine
PLC Screen Water Permeability SATRA TM77 Footwear Testing Machine
PLC Screen Water Permeability SATRA TM77 Footwear Testing Machine
PLC Screen Water Permeability SATRA TM77 Footwear Testing Machine
PLC Screen Water Permeability SATRA TM77 Footwear Testing Machine
Specifications
Brand Name :
GESTER
Model Number :
GT-KA02
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 sets/month
Delivery Time :
10-30days
Packaging Details :
wooden packaging
Usage :
dynamic waterproof performance of finished shoes
Warranty :
1 year
Product name :
Footwear Water Penetration & Flexing Tester
Application :
footwear industry
Quality :
High,good
Advantage :
factory direct sale, fast delivery
Description

PLC touch screen Footwear Water Penetration Flexing Tester

Product Introduction

Application:

The Footwear Water Penetration & Flexing Tester can be used to test the dynamic waterproof performance of different kinds of finished shoes.

Feature & Principle

Feature:

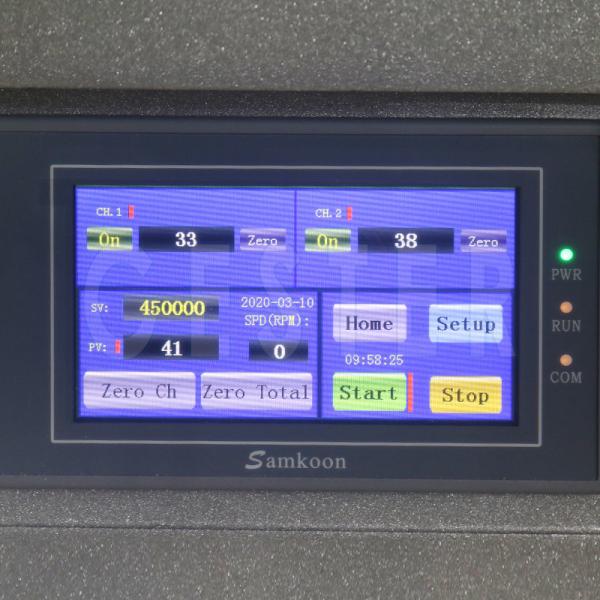

1. PLC touch screen, easy to operate.

2. Equip with two test positions, separately record test conditions.

3. E-stop switch, to avoid any emergency.

Principle:

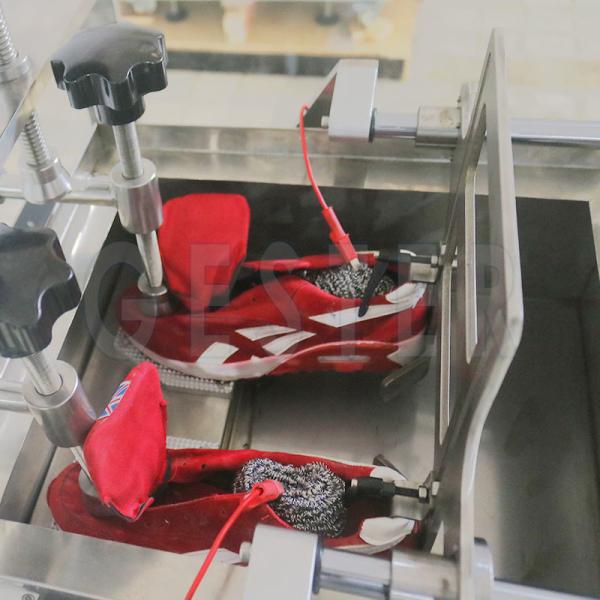

Install finished shoes on test device, and fill the tank with a certain deep of water to touch with shoes. It push forward the forefoot bending by certain angle and frequency by simulating people walking in water with shoes, to test bending times required for water penetrate from shoes outside to inside or determine the penetration situation after certain bending times.

It can test a pair of shoes simultaneously and equip with one total setting counter (control total test times), and two separated small counters (display separately bending times of single sample). If water penetrate into shoes, small counter stops and records the bending times when it stops. Sensing Method is that determine whether.

Key Specifications

Model

GT-KA02-1

Test sample

2pcs (Respectively sensing)

Bending angle

0～50° adjustable

Test speed

0～150cpm adjustable

Counter

PLC touch screen, 0~999,999

Power

1∮AC 220V 50/60HZ 3A

Dimension (W×D×H)

800×596×1220mm

Weight

150kg

Standards

SATRA TM77
