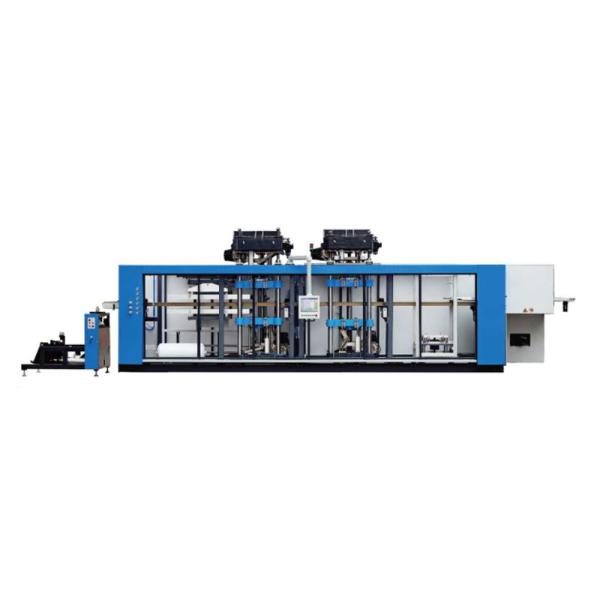

High Speed 45 cycles/ min Plastic Thermoforming Machine For PET
High Speed 45 cycles/ min Plastic Thermoforming Machine For PET
High Speed 45 cycles/ min Plastic Thermoforming Machine For PET
High Speed 45 cycles/ min Plastic Thermoforming Machine For PET
Specifications
Brand Name :
GESTER
Model Number :
GTM508
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 sets/month
Delivery Time :
10-30 days
Packaging Details :
wooden packaging
Condition :
New
Warranty :
1 Year
After-sales service provided :
Video technical support,Online support,commissioning and training
Name :
Thermoforming Equipment
Production :

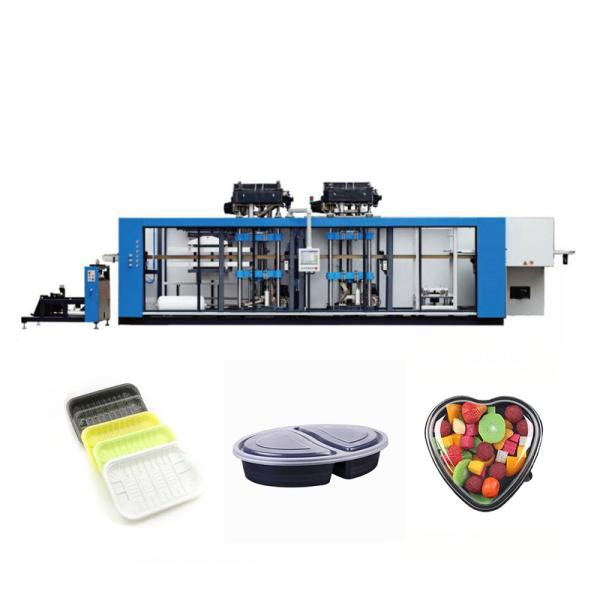

Vegetable and fruit box, biscuit box, lunch box, fresh meat tray box, etc.
Automation :
Fully Atuomatic
Description

Product Introduction:

This High Speed Automatic Pressure PET Thermoforming Machine adopts the method of laminating heating, adopts the technology of moving film punching, no secondary pollution, high sanitary level, high production safety coefficient, saving labor, the equipment set positive pressure/negative pressure/positive and negative pressure automatic molding, punching, cutting, manipulator grasp stack counting in a production line to complete continuously, automatic conveying products.There is no need for manual punching, manual cutting and other subsequent processing procedures, reduce a series of quality problems caused by manual punching and cutting and cumbersome subsequent procedures, save the site, reduce secondary pollution, save labor costs, product quality has been greatly improved.

Feature:

  1. Pet Thermoforming Machine : High speed, low noise, durable, easy maintenance; Max. Speed 45 cycle/minute.
  2. Servo system control for stretching, suitable for PS, HIPS, PVC, PET, PP, etc material manufacture.
  3. Pressure Thermoforming Machine: New design tool changing system, easy to charge the mould & tool in punching & stacking station, ensure the maximized production time.
  4. Advanced heating system with latest moulders for temperature control, for fast reaction time, resulting in high efficiency and low production cost.

Pet Thermoforming Machine Key Specification:

Technical Data GTM508 GTM509
Maximum forming area 845x645 mm 845x645 mm
Minimum forming area 400x300 mm 400x300 mm
Maximum mold dimension 870x670 mm 870x670 mm
Maximum mold weight 400 kg 400 kg
Height over sheet material forming part 150 mm 125 mm
Height under sheet material forming part 125 mm 110 mm
Dry cycle speed 45 cycles/ min 45 cycles/ min
Maximum film width 900 mm 900 mm
Operating pressure 6 bar 6 bar
Suitable Material PS, HIPS, PVC, PET, PP, etc

High Speed 45 cycles/ min Plastic Thermoforming Machine For PET
