SATRA TM93 Brass 4.5mm ID Shoelace Against Eyelets Abrasion Testing Machine
SATRA TM93 Brass 4.5mm ID Shoelace Against Eyelets Abrasion Testing Machine
SATRA TM93 Brass 4.5mm ID Shoelace Against Eyelets Abrasion Testing Machine
SATRA TM93 Brass 4.5mm ID Shoelace Against Eyelets Abrasion Testing Machine
SATRA TM93 Brass 4.5mm ID Shoelace Against Eyelets Abrasion Testing Machine
SATRA TM93 Brass 4.5mm ID Shoelace Against Eyelets Abrasion Testing Machine
SATRA TM93 Brass 4.5mm ID Shoelace Against Eyelets Abrasion Testing Machine
SATRA TM93 Brass 4.5mm ID Shoelace Against Eyelets Abrasion Testing Machine
Specifications
Brand Name :
GESTER
Model Number :
GT-KC03
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 sets/month
Delivery Time :
10-30 days
Packaging Details :
wooden packaging
Product name :
Brass 4.5mm Inner Diameter SATRA TM93 Shoelace Against Eyelets Abrasion Testing Machine
Warranty :
1 Year
Price :
Factory Price
Weight(approx.) :
60 kg(excluding weight)
Control method :
Touch-screen control, 0~999,999
Power supply :
1∮AC 220V 50/60HZ
Description

Brass 4.5mm Inner Diameter SATRA TM93 Shoelace Against Eyelets Abrasion Testing Machine

Application
This tester is used for shoelace against standard eyelet abrasion testing, or eyelet against standard shoelace abrasion testing. This tester is suitable for all kinds of shoelace and eyelet.


Principle
Let shoelace cross the eyelet clamped on the fiber board, make the shoelace and eyelet form into 90 degree, make the fiber board and shoelace form into 45 degree. Then straining reciprocated the shoelace under the standard tension by eyelet. While the shoelace is damaged, stop the testing.

Key Specification

Model

GT-KC03
Position 6 positions
Weights 455g ± 5g , 6pcs
Control method Touch-screen control, 0~999,999
Standard eyelet Brass, Inner diameter: 4.5mm
Fiberboard 25×25mm, Inner diameter 5.0 ± 0.2mm
Movable stroke 76 ±2 mm
Test speed 100±5cpm
Power supply 1∮AC 220V 50/60HZ
Dimensions(W×D×H) 57x58x41cm
Weight(approx.) 60 kg(excluding weight)
Standards SATRA TM93

Standard accessories

Power line 1pc
Standard eyelet 6pcs
455g Weights 6pcs

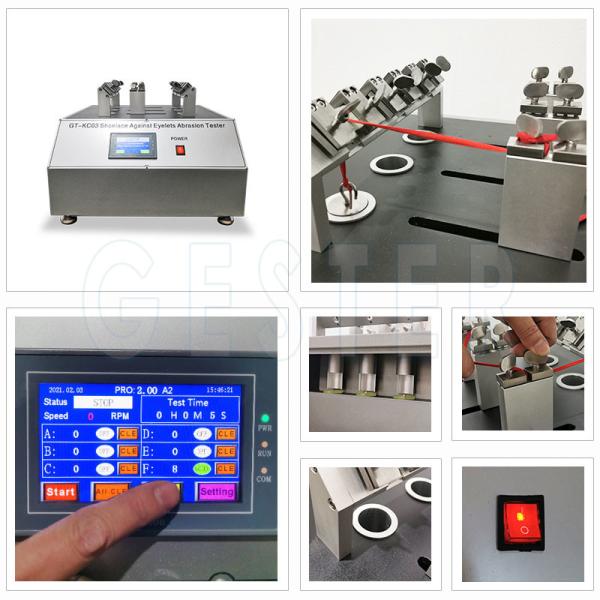

Product Picture

SATRA TM93 Brass 4.5mm ID Shoelace Against Eyelets Abrasion Testing Machine
