Specifications
Brand Name :
GESTER
Model Number :
N75
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 sets/month
Delivery Time :
10-30 days
Packaging Details :
wooden packaging
Product name :
ASTM D1709 Plastic Films Drop Dart Impact Tester
Key words :
Plastic Films Drop Dart Tester
Testing Method :
Method A and B
Testing Range :
A: 50-2000g B: 300-2000g
Air Pressure :
0.6MPa
Dimension (W×D×H) :
480mm×470mm×2160mm
Weight(approx.) :
70 kg
Power :
220V 50Hz
Price :
Factory Price
Feature :
Reliable,professional
Description

ASTM D1709 Plastic Films Drop Dart Impact Tester

Application
It is suitable for measuring the impact mass and energy of plastic film and sheet under the impact of free falling dart at a given height.

Standards
ASTM-D1709, JIS K7124, GB/T 9639


Key Specification

Model GT-N75
Testing Method Method A and B
Testing Range A: 50-2000g B: 300-2000g
Testing Error 0.1g (0.1J)
Method of Grip Pneumatic
Release Method of Dart Pneumatic
Sample Size >150mm×150mm
Drop Height 600 mm(26"),1524 mm (60")
Air Pressure 0.6MPa
Dimension (W×D×H) 480mm×470mm×2160mm
Weight(approx.) 70 kg
Power 220V 50Hz

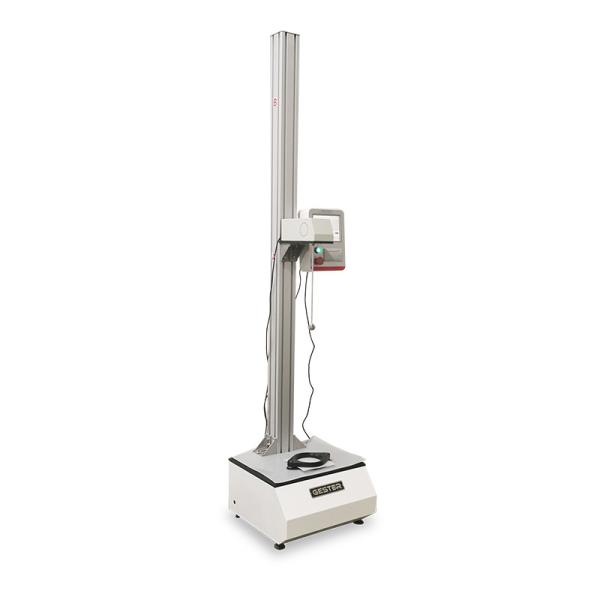

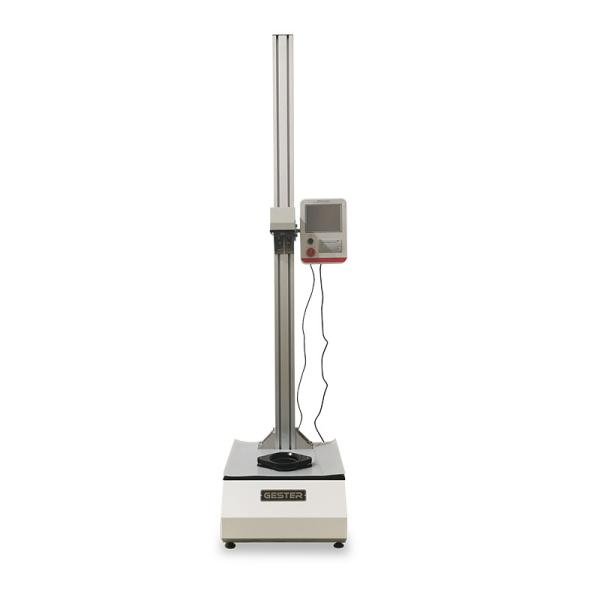

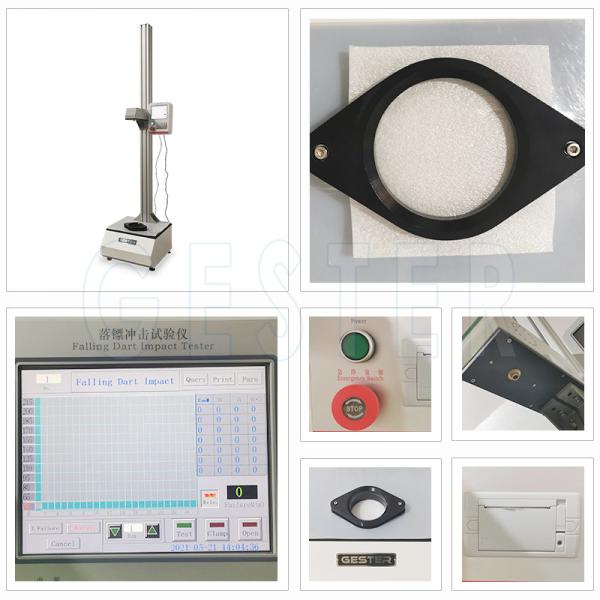

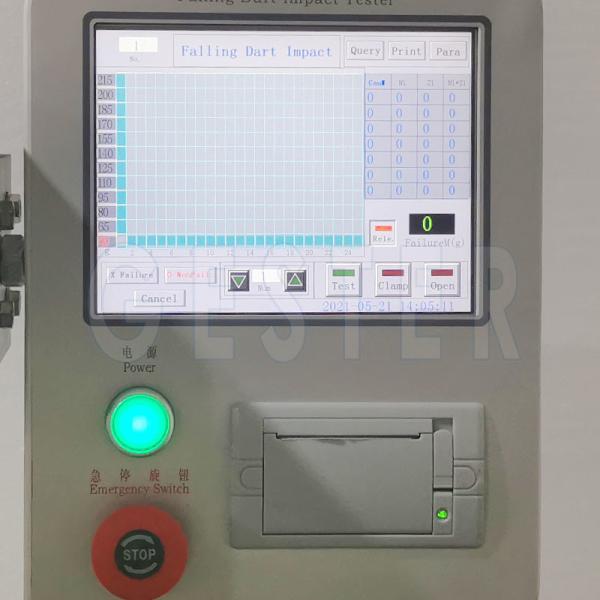

Product Image

ASTM D1709 JIS K7124 GB/T 9639 Drop Dart Impact Tester For Plastic Film
