PLC Control Disposable Plastic Thermoforming Machine For Food Container
PLC Control Disposable Plastic Thermoforming Machine For Food Container
PLC Control Disposable Plastic Thermoforming Machine For Food Container
PLC Control Disposable Plastic Thermoforming Machine For Food Container
PLC Control Disposable Plastic Thermoforming Machine For Food Container
PLC Control Disposable Plastic Thermoforming Machine For Food Container
Specifications
Brand Name :
GESTER
Model Number :
HEY01
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 set/month
Delivery Time :
10-30 days
Packaging Details :
wooden packaging
Warranty :
1 Year
After-sales service provided :
Online support, Video technical support
3 Stations :
Forming, Cutting, Stacking
Power Supply :
3 phase 4 line 380V50Hz
Applicable Material :
PP,HIPS,PE,PET,Starch-based Material
Price :
Factory price
Description

Automatic Disposable Biodegradable Plastic Food Packaging Containers Thermoforming Machine

Application

Mainly for the production of variety plastic containers ( egg tray, fruit container, food container, package containers, etc) with thermoplastic sheets, such as PP,APET, PS, PVC, EPS, OPS, PEEK, PLA, CPET,etc.

PLC Control Disposable Plastic Thermoforming Machine For Food Container

Features

1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC.

Touch screen makes the operation convenient and easy.

2. Pressure And/Or Vacuum forming.

3. Upper and down mould forming.

4. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.

5. Upper & lower heater, four sections heating.

6. Heater with intellectual temperature control system,which has high precision, uniform temperature, won’t be effected by outer voltage. Low power consumption (energy saving 15%), ensure the longer service life of heating furnace.

7. Forming and cutting unit mold open and close controlled by servo motor, products automatically count.

8. Products be stacked downward.

9. Data memorization function.

10. Feeding width can be synchronously or independently adjusted in electrical way.

11. Heater will automatically push-out when the sheet is over.

12. Auto roll sheet loading, reduce the working load.

Technical Parameter

Model HEY01A-1 HEY01A-2 HEY01B-1 HEY01B-2
Stations 3 4 3 4
Max.Forming Area (mm2) 680×500 750X610
Sheet Width (mm) 350-720
Sheet Thickness (mm) 0.2-1.5
Max. Dia. Of Sheet Roll (mm) 800
Forming Mould Stroke(mm)

Upper Mould 150,

Down Mould 150
Power Consumption 60-70KW/H
Forming Mould Width (mm) 350-680
Max. Formed Depth (mm) 100
Cutting Mould Stroke(mm)

Upper Mould 150,

Down Mould 150
Max. Cutting Area (mm2) 680×500
Cutting Force (ton) 40
Dry Speed (cycle/min) Max 30
Product Cooling Method By Water Cooling
Vacuum Pump UniverstarXD100
Power Supply 3 phase 4 line 380V50Hz
Max. Heating Power 121.6
Max. Power of Whole Machine (kw) 150
Max. Machine Dimension(L*W*H) (mm) 11150×2300×2700
Weight of Whole Machine ( T ) ≈11

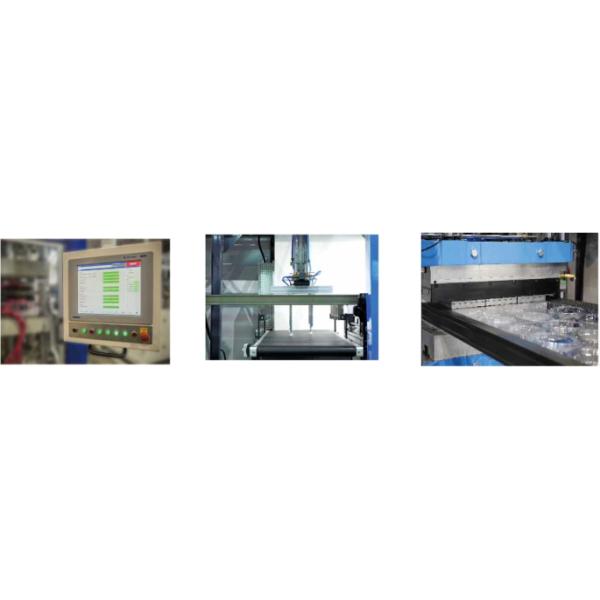

Product Image

PLC Control Disposable Plastic Thermoforming Machine For Food Container
