vertical 480x800 4 inch g+g type i2c Capacitive Touch Screen Display

Product Specification:

Products Description:

The capacitive touch screen is coated with thin electrodes on all sides of the touch screen, that form a low voltage ac electric field in the conductive body. When touching the screen, due to the human electric field, a coupling capacitor will be formed between the finger and the conductor layer, and the current from the four-side electrode will flow to the contact. The strength of the current is proportional to the distance between the finger and the electrode, and the controller behind the touch screen will calculate the ratio and strength of the current to accurately calculate the position of the touchpoint. The double glass of the capacitive touch screen can not only protect the conductor and sensor but also effectively prevent the impact of external environmental factors on the touch screen. Even if the screen is stained with dirt, dust, or oil, the capacitive touch screen can still accurately calculate the touch position.

Application:

1. Smartphones: Whether it runs Android or iOS, nearly all smartphones have a touchscreen interface. Touchscreens have become synonymous with smartphones.
2. Tablets: In addition to smartphones, nearly all tablet computers feature a touchscreen interface. Tablet computers, as you may know, run the same mobile operating systems (OSs) as smartphones.
3. HMIs: Another common application for touchscreen technology is human-machine interfaces (HMIs). HMIs are industrial control systems used in manufacturing facilities and other commercial workspaces. While some of them are basic and consist of nothing more than levers and knobs, others are more complex. Some complex HMIs use a touchscreen interface to provide a method of control.
4. POS Systems: Retail stores, as well as other businesses, often use touchscreen-based point-of-sale (POS) systems. POS systems allow businesses to accept and process payments from their customers. Traditional cash registers are rarely used by modern businesses. Instead, businesses today use touchscreen-based POS systems.
5. Infotainment Systems: You’ll often find infotainment systems with a touchscreen interface. An infotainment system is a type of electronic system in automobiles that provides information and entertainment. Most infotainment systems feature a touchscreen interface that the driver or a passenger can use to control. Some of them feature physical buttons as well, but nearly all modern infotainment systems have a touchscreen interface.
6. Smart Appliances: Smart appliances often have a touchscreen interface. Smart appliances consist of washing machines, clothes dryers, ovens, and other major household appliances that offer some form of wireless connectivity and/or automation. They are designed to optimize energy usage so that the respective appliance consumes less energy during operation. When shopping for a smart appliance, you may discover that many of them feature a touchscreen interface. The presence of a touchscreen interface offers an easy and convenient method of control.

Features:

1. Operation novelty: Capacitive touch screens generally support multi-touch, the operation will be more intuitive and more interesting.

2. It is not easy to touch: Because the capacitive touch screen needs to sense the current to the human body, only the human body can operate it and will not react when touched with other objects, so basically it avoids the wrong touch. possibility.

3. High durability: Compared with resistive touch screens, capacitive touch screens are better represented in all aspects such as waterproof, dustproof, and abrasion resistance.

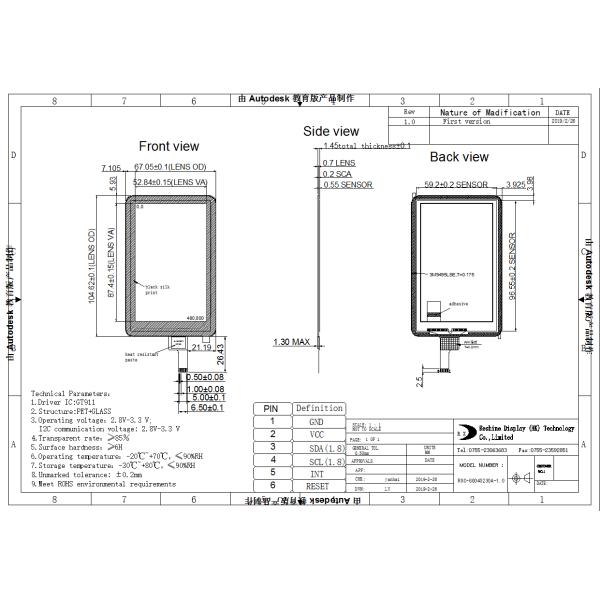

PCAP Drawing:

Quality assurance:

The quality control over a capacitive touch screen is taken using advanced quality control devices and by experienced QCs. A professional QC team has been established. They would test the samples and the finished products in a strict way. Probably the domestic and international quality certificates could convince you.

Quality first is our business creed. Our products strictly implement the ISO9001 and ISO14001 standards. From product design, material inspection to manufacturing process control, to finished product shipments and material recycling, all of them require green and environmental protection and comply with ROHS standards.

FAQ:

Can you provide OEM service?

Yes, we can provide both OEM and ODM service, can customize both the resistive touch panels and capacitive touch screens according to the customer’s requirements. Customized projects include the shape and size of cover glass, silk print, FPC of the touch panel, driver ic replacement, etc..

What is the minimum order?

1. There is no MOQ for our standard products. (From 2 inch to 32 inches capacitive/resistive touch panel)

2. We deeply know that every customer needs a lot of manpower, material resources, and time cost to develop a new project, so we provide a “No MOQ” service for every new project in the early stage.

What's your after-sale service?

You will get our reply within 24 hours if there are any questions, and solutions will be offered instantly by our professional technical team.

What are your advantages?

1. We have some standard products (2.0 inch to 32-inch PCAP )in stock and no tooling&MOQ request.

2. 4000 m2 factory with 500k pieces monthly capacity to meet your need.

3. High quality&low price and high reliability of our touch screens and Ensure long-term supply

4. Complete Projected capacitive touch screen solutions, Sunlight readable solutions, Customization &Design, Optical bonding service.

5. Customization options to Cover glass thickness, shape, and surface treatments such as Anti-Glare, Anti-reflective, touch with gloves, and water available.

6. Variety selection of touch screen designs for different applications.

7. Short lead time, just needs 15 days for customized samples.

8. Having 12 years of touch screen industry experience, we understand customers' requests.
