15 Inch Lcd Panel 1024x768 Full Viewing Angle Lvds Interface 20 Pins
General Description:

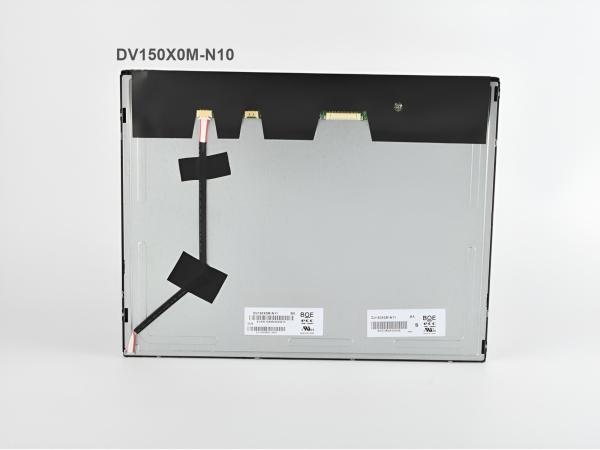

DV150X0M-N10 display area size is 304.128(W)×228.096(H) mm, exterior size is 326.5(W)×253.5(H)×9.7(D) mm, visible size is 306.5(W)×230.1(H) mm, surface treatment is matte (Haze 25%), Hard coating ( 3H), product net weight 930g.
Features:
Specifications:
Parameter | Specification | Unit | Remarks |
Active area | 304. 128(H) × 228.096(V) | mm | |
Number of pixels | 1024(H) × 768(V) | pixels | |
Pixel pitch | 0.297(H) × 0.297(V) | mm | |
Pixel arrangement | Pixels RGB Vertical stripe | ||
Display colors | 16.7M | colors | 6bits+FRC |
Display mode | Normally Black | ||
Dimensional outline | 326.5(H) × 253.5(V) × 9.7(Total) | mm | Detail refer to drawing |
Weight | 930 | g | |
Power Consumption | 8.72 | Watt | Typ. |
Bezel width (L/R/U/D) | 10/10/11.7/11.7 | mm | |
Surface Treatment | Haze 25%, 3H | ||
Back-light | E-LED Light bar Type | ||
LED life | 50000 | ||
Display Direction | landscape & Portrait |
Absolute Maximum Ratings:
The followings are maximum values which, if exceed, may cause faulty operation or damage to the unit. The operational and non-operational maximum voltage and current values are listed in Table.
Parameter | Symbol | Min. | Max. | Unit | Remark |
Power Supply Voltage | VDD | -0.3 | 4 | V | Ta = 25℃ |
Operating Temperature |
TOP |
-20 | +70 | ℃ |
Note 1 |
Storage Temperature |
TSUR |
-20 | +70 | ℃ | |
TST |
-20 | +70 | ℃ | ||
Operating Ambient Humidity | Hop | 10 | 90 | %RH | |
Storage Humidity | Hst | 10 | 90 | %RH |
Note 1 : Wet bulb temperature should be 39℃ max. and no condensation of water.
Electrical Specifications:
Parameter | Symbol | Values | Unit | Remark | |||
Min | Typ | Max | |||||
Power Supply Input Voltage | VDD | 3.0 | 3.3 | 3.6 | V | Note 1 | |
Power Supply Current | IDD | - | 410 | 740 | mA | ||
Power Supply Ripple Voltage | VRP | - | - | 300 | mV | ||
Rush Current | IRUSH | - | 2 | 3 | A | Note 2 | |
LVDS Interface |
Differential Input High Threshold Voltage |
VLVTH |
- |
- |
+100 | mV |
VLVC=1.2V |
Differential Input Low Threshold Voltage |
VLVTL | - 100 |
- |
- |
mV | ||
Common Input Voltage | VLVC | 0.7 | - | 1.6 | V | ||
CMOS Interface |
Input High Threshold Voltage |
VIH | 0.7VDD |
- |
VDD | V | |
Input Low Threshold Voltage |
VIL | 0 |
- |
0.3VDD | V | ||
Power Consumption |
PD | 0.8 | 1.3 | W | |||
PBL | 7.92 | 8.71 | Note 3 | ||||
Ptotal | 8.72 | 10.1 |
Note 1 : The supply voltage is measured and specified at the interface connector of LCM.The current draw and power consumption specified is for VDD=3.3V,Test Pattern of power supply current.
Note 2 : The duration of rush current is about 2ms and rising time of Power Input is 1ms(min).
Note 3 :Calculated value for reference (Input pins*VPIN × IPIN) excluding inverter loss.
Backlight Electrical Specifications:
Parameter | Min. | Typ. | Max. | Unit | Remarks | ||
LED Driver Power Supply Voltage | HVDD | 10.8 | 12 | 12.6 | V | ||
LED Driver Power Supply Current | IHVDD | 550 | 600 | 700 | mA | ||
EN Control Level |
Backlight on |
VENH |
3 | 3.3 | 3.6 | V |
EN logic high voltage |
Backlight off |
VENL |
0 | 0 | 0.6 | V |
EN logic low voltage |
|
PWM Control Level |
PWM High Level |
VPML |
3 | 3.3 | 3.6 | V | |
PWM Low Level |
VPML |
0 | 0 | 0.6 | V | ||
PWM Control Frequency | F PWM | 0.12 |
- |
20 | KHz | Refer to customer comments | |
Duty Ratio | - | 5 | - | 100 | % | ||
LED Life-Time | N/A | 50,000 | - | - | Hour | ||
LED Light Bar Input Voltage Per Input Pin | VPIN | 32.4 | 36 | 39.6 | V | ||
LED Light Bar Input Current Per Input Pin | IPIN |
- |
55 |
- |
mA | ||
LED Power Consumption | PBL | - | 7.92 | 8.71 | W |
Interface Connection:
Pin No | Symbol | Description | Pin No | Symbol | Description |
1 | VDD | Power Supply, 3.3V(typ.) | 11 | RIN2- | -LVDS differential data input 2 |
2 | VDD | Power Supply,3.3V(typ.) | 12 | RIN2+ | +LVDS differential data input 2 |
3 | VSS | Ground | 13 | VSS | Ground |
4 | NC | No Connection | 14 | CLKIN- | -LVDS differential clock input CLK |
5 | RIN0- | -LVDS differential data input 0 | 15 | CLKIN+ | +LVDS differential clock input CLK |
6 | RIN0+ | +LVDS differential data input 0 | 16 | VSS | Ground |
7 | VSS | Ground | 17 | RIN3- | -LVDS differential data input 3 |
8 | RIN1- | -LVDS differential data input 1 | 18 | RIN3+ | +LVDS differential data input 3 |
9 | RIN1+ | +LVDS differential data input 1 | 19 | VSS | Ground |
10 | VSS | Ground | 20 | NC | No Connection |
Optical Specification:
Parameter | Symbol | Condition | Min | Typ | Max | Unit | Remark | ||
Viewing Angle |
Horizontal | Θ3 |
CR > 10 |
85 | 89 | Deg. |
Note 1 |
||
Θ9 | 85 | 89 | Deg. | ||||||
Vertical | Θ12 | 85 | 89 | Deg. | |||||
Θ6 | 85 | 89 | Deg. | ||||||
Brightness | Lv |
Θ = 0. ILED=55m A |
315 | 350 | nit | ||||
Uniformity | 9 Points | ΔY9 | 75% | 80% | |||||
Contrast ratio | CR |
Θ = 0. |
700:1 | 1000:1 | - | ||||
Reproduction of color |
White |
Wx |
Θ = 0. (Center) Normal Viewing Angle |
TYP. - 0.03 |
0.313 |
TYP. + 0.03 |
|
||
Wy | 0.329 | ||||||||
Red | Rx | 0.649 | |||||||
Ry | 0.338 | ||||||||
Green | Gx | 0.323 | |||||||
Gy | 0.627 | ||||||||
Blue | Bx | 0.155 | |||||||
By | 0.056 | ||||||||
Color Gamut | 67 | 72 | - | % | |||||
Response Time | Tr+Tf | - | 30 | 35 | ms | ||||
Gamma Scale | 2.0 | 2.2 | 2.4 |
Note :
1. Viewing angle is the angle at which the contrast ratio is greater than 10. The viewing are determined for the horizontal or 3, 9 o‟clock direction and the vertical or 6, 12 o‟clock direction with respect to the optical axis which is normal to the LCD surface.
Operating Precautions:
1.Do not exceed the absolute maximum rating value. (supply voltage variation, input voltage variation, variation in part contents and environmental temperature, and so on) Otherwise the Module may be damaged.
2.Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be done by system manufacturers. Grounding and shielding methods may be important to minimized the interference.
