21.2 Inch Bar Type Lcd With 1920x360 Ips Viewing Angle Lvds Interface 30 Pins
21.2 Inch Bar Type Lcd With 1920x360 Ips Viewing Angle Lvds Interface 30 Pins
21.2 Inch Bar Type Lcd With 1920x360 Ips Viewing Angle Lvds Interface 30 Pins
21.2 Inch Bar Type Lcd With 1920x360 Ips Viewing Angle Lvds Interface 30 Pins
21.2 Inch Bar Type Lcd With 1920x360 Ips Viewing Angle Lvds Interface 30 Pins
21.2 Inch Bar Type Lcd With 1920x360 Ips Viewing Angle Lvds Interface 30 Pins
21.2 Inch Bar Type Lcd With 1920x360 Ips Viewing Angle Lvds Interface 30 Pins
21.2 Inch Bar Type Lcd With 1920x360 Ips Viewing Angle Lvds Interface 30 Pins
21.2 Inch Bar Type Lcd With 1920x360 Ips Viewing Angle Lvds Interface 30 Pins
21.2 Inch Bar Type Lcd With 1920x360 Ips Viewing Angle Lvds Interface 30 Pins
Specifications
Brand Name :
BOE
Model Number :
HLC212LCM001
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
USD71
Payment Terms :
T/T
Supply Ability :
5000pcs
Delivery Time :
5-8 work days
Packaging Details :
30pcs/box original package

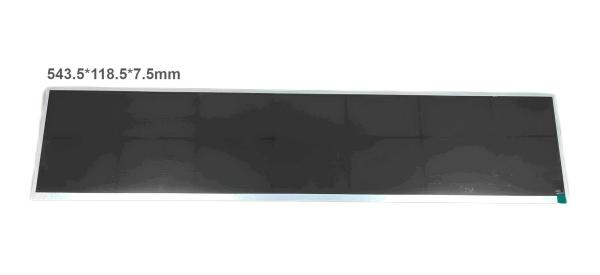

Outline Dimension :
543.5×118.5×7.5mm
Active Area :
529.416(H)×99.2655(V)mm
Number of Pixels :
1920(H)×360(V)
Luminance :
600cd/㎡
Viewing Angle :
89/89/89/89
Color Gamma :
72%
Description

21.2 Inch Bar Type Lcd With 1920x360 Ips Viewing Angle Lvds Interface 30 Pins

General Description:

HLC212LCM001 has a 21.2 inch diagonally measured active area with FHD resolutions (1920 horizontal by 360 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD Open Cell panel is adapted for a low reflection and higher color type.

Specifications:

Item Content Unit
Active area 529.416(H)×99.2655(V)

mm
Number of pixels 1920(H)×360(V) /
Pixel pitch 91.9125(H)×275.7375(V) /
Pixel arrangement Pixels RGB Vertical stripe /
Backlight Type 4*20chips white LED /
outline dimension 543.5*118.5*7.5 mm
Interface Type LVDS /
LCM Luminance 600(typ) nit
Display colors 16.7M
Open Cell Transmittance 4.8 %
Power Consumption 3 TYP
Surface Treatment Haze 25%

Absolute Maximum Ratings:

Parameter Symbol Min. Max. Unit

Remark
Power Supply Voltage VDD VSS-0. 13.2 V Ta = 25℃
Operating Temperature TOP 0 +50 ℃

Storage Temperature

 TSUR -20 +60 ℃

TST -20 +60 ℃
Operating Ambient

Hop

10

80

%RH
Storage Humidity Hst 10 80 %RH

Electrical Specifications:

Parameter

Symbol

 Values

Unit
Min Typ Max
Power Supply Input Voltage VDD 10.8 12 13.2 Vdc
Power Supply Ripple Voltage VRP 300 mV
Power Supply Current IDD

-

 250 530 mA
Power Consumption PDD

-

 3 7 Watt
Rush current IRUSH

-

-

 3 A

LVDS Interface

 Differential Input High Threshold Voltage VLVTH 100 300 mV
Differential Input Low Threshold Voltage VLVTL -300 - 100 mV
Common Input Voltage VLVC 1 1.2 1.4 V

CMOS

Interface

 Input High Threshold Voltage VIH 2.7

-

 3.3 V
Input Low Threshold Voltage VIL 0

-

 0.6 V

Interface Connection:

Pin No Symbol Description
1 RXO0- Negative Transmission data of Pixel 0 (ODD)
2 RXO0+ Positive Transmission data of Pixel 0 (ODD)
3 RXO1- Negative Transmission data of Pixel 1 (ODD)
4 RXO1+ Positive Transmission data of Pixel 1 (ODD)
5 RXO2- Negative Transmission data of Pixel 2 (ODD)
6 RXO2+ Positive Transmission data of Pixel 2 (ODD)
7 BIST BIST function
8 RXOC- Negative Transmission Cloc k (ODD)
9 RXOC+ Positive Transmission Clock(ODD)
10 RXO3- Negative Transmission data of Pixel 3 (ODD)
11 RXO3+ PositiveTransmission data o f Pixel 3 (ODD)
12 RXE0- Negative Transmission data of Pixel 0 (EVEN)
13 RXE0+ Positive Transmission data of Pixel 0 (EVEN)
14 GND Power Ground
15 RXE1- Negative Transmission data of Pixel 1 (EVEN)
16 RXE1+ Positive Transmission data of Pixel 1 (EVEN)
17 GND Power Ground
18 RXE2- Negative Transmission data of Pixel 2 (EVEN)
19 RXE2+ Positive Transmission data of Pixel 2 (EVEN)
20 RXEC- Negative Transmission Cloc k (EVEN)
21 RXEC+ Positive Transmission Clock (EVEN)
22 RXE3- Negative Transmission data of Pixel 3 (EVEN)
23 RXE3+ Positive Transmission data of Pixel 3 (EVEN)
24 GND Power Ground
25 SCL CTL_DVR for LCD manufact urer
26 SDA CE_DVR for LCD manufactu rer
27 NC Not connection
28-30 VDD PowerSupply:+12V
