Specifications
Brand Name :
BOE
Model Number :
DV150X0M-N10
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
USD49
Payment Terms :
T/T
Supply Ability :
5000pcs
Delivery Time :
5-8 work days
Packaging Details :
14pcs/box original package
Outline Dimension :
326.5(H) × 253.5(V) × 9.7(T)mm
Active Area :
304.128(H) × 228.096(V)mm
Number of Pixels :
1024(H) × 768(V)
Surface Treatment :
Haze 25%, 3H
Viewing Angle :
89/89/89/89
LED Life :
50000

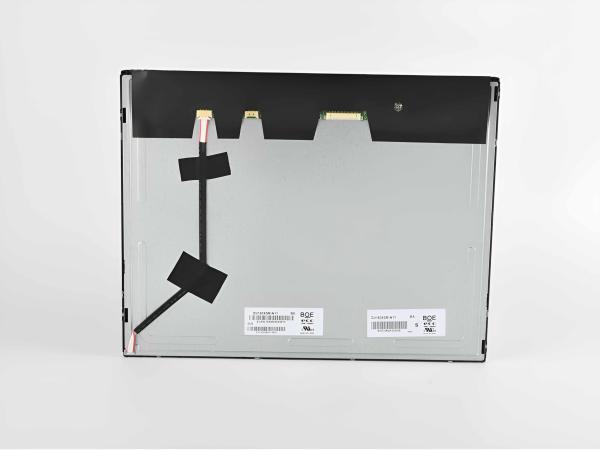

Description

15 Inch Tft 1024x768 Full Viewing Angle Lvds Interface 20 Pins

General Description:

DV150X0M-N10 uses a 12S4P WLED-emitting side-entry light source (bottom) with 50K hours of light source life, including LED driver. It adopts LVDS (1 ch, 8-bit) signal interface with 20 pins total, terminal connection, and 3.3V (Typ.) drive screen voltage. It has a typical vertical refresh rate Fv of 60Hz.

Features:

  • LVDS interface with 1 pixel / clock
  • High-speed response
  • Low color shift image quality
  • 6-bit +FRC color depth, display 16.7M colors
  • Wide viewing angle
  • DE (Data Enable) only mode
  • ADS technology is applied for high display quality
  • RoHS compliant

Specifications:

Parameter Specification Unit Remarks
Active area 304. 128(H) × 228.096(V) mm
Number of pixels 1024(H) × 768(V) pixels
Pixel pitch 0.297(H) × 0.297(V) mm
Pixel arrangement Pixels RGB Vertical stripe
Display colors 16.7M colors 6bits+FRC
Display mode Normally Black
Dimensional outline 326.5(H) × 253.5(V) × 9.7(Total) mm Detail refer to drawing
Weight 930 g
Power Consumption 8.72 Watt Typ.
Bezel width (L/R/U/D) 10/10/11.7/11.7 mm
Surface Treatment Haze 25%, 3H
Back-light E-LED Light bar Type
LED life 50000
Display Direction landscape & Portrait

Absolute Maximum Ratings:

The followings are maximum values which, if exceed, may cause faulty operation or damage to the unit. The operational and non-operational maximum voltage and current values are listed in Table.

Parameter Symbol Min. Max. Unit Remark
Power Supply Voltage VDD -0.3 4 V Ta = 25℃
Operating Temperature

TOP

 -20 +70 ℃

Note 1

Storage Temperature

TSUR

 -20 +70 ℃

TST

 -20 +70 ℃
Operating Ambient Humidity Hop 10 90 %RH
Storage Humidity Hst 10 90 %RH

Note 1 : Wet bulb temperature should be 39℃ max. and no condensation of water.

Electrical Specifications:

Parameter Symbol Values Unit Remark
Min Typ Max
Power Supply Input Voltage VDD 3.0 3.3 3.6 V Note 1
Power Supply Current IDD - 410 740 mA
Power Supply Ripple Voltage VRP - - 300 mV
Rush Current IRUSH - 2 3 A Note 2

LVDS

Interface

Differential Input High

Threshold Voltage

 VLVTH

-

-

 +100 mV

VLVC=1.2V

Differential Input Low

Threshold Voltage

 VLVTL - 100

-

-

 mV
Common Input Voltage VLVC 0.7 - 1.6 V

CMOS

Interface

Input High Threshold

Voltage

 VIH 0.7VDD

-

 VDD V

Input Low Threshold

Voltage

 VIL 0

-

 0.3VDD V

Power Consumption

 PD 0.8 1.3 W
PBL 7.92 8.71 Note 3
Ptotal 8.72 10.1

Note 1 : The supply voltage is measured and specified at the interface connector of LCM.The current draw and power consumption specified is for VDD=3.3V,Test Pattern of power supply current.

Note 2 : The duration of rush current is about 2ms and rising time of Power Input is 1ms(min).

Note 3 :Calculated value for reference (Input pins*VPIN × IPIN) excluding inverter loss.

Backlight Electrical Specifications:

Parameter Min. Typ. Max. Unit Remarks
LED Driver Power Supply Voltage HVDD 10.8 12 12.6 V
LED Driver Power Supply Current IHVDD 550 600 700 mA

EN Control Level

 Backlight on

VENH

 3 3.3 3.6 V

EN logic high

voltage
Backlight off

VENL

 0 0 0.6 V

EN logic low

voltage

PWM

Control

Level

 PWM High Level

VPML

 3 3.3 3.6 V
PWM Low Level

VPML

 0 0 0.6 V
PWM Control Frequency F PWM 0.12

-

 20 KHz Refer to customer comments
Duty Ratio - 5 - 100 %
LED Life-Time N/A 50,000 - - Hour
LED Light Bar Input Voltage Per Input Pin VPIN 32.4 36 39.6 V
LED Light Bar Input Current Per Input Pin IPIN

-

 55

-

 mA
LED Power Consumption PBL - 7.92 8.71 W

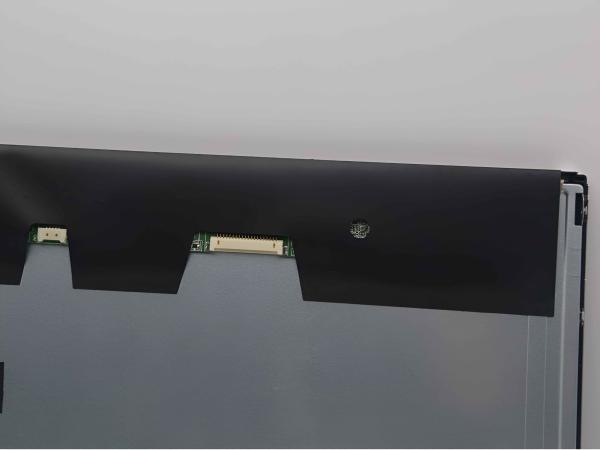

Interface Connection:

Pin No Symbol Description Pin No Symbol Description
1 VDD Power Supply, 3.3V(typ.) 11 RIN2- -LVDS differential data input 2
2 VDD Power Supply,3.3V(typ.) 12 RIN2+ +LVDS differential data input 2
3 VSS Ground 13 VSS Ground
4 NC No Connection 14 CLKIN- -LVDS differential clock input CLK
5 RIN0- -LVDS differential data input 0 15 CLKIN+ +LVDS differential clock input CLK
6 RIN0+ +LVDS differential data input 0 16 VSS Ground
7 VSS Ground 17 RIN3- -LVDS differential data input 3
8 RIN1- -LVDS differential data input 1 18 RIN3+ +LVDS differential data input 3
9 RIN1+ +LVDS differential data input 1 19 VSS Ground
10 VSS Ground 20 NC No Connection

Optical Specification:

Parameter Symbol Condition Min Typ Max Unit Remark

Viewing

Angle

 Horizontal Θ3

CR > 10

 85 89 Deg.

Note 1
Θ9 85 89 Deg.
Vertical Θ12 85 89 Deg.
Θ6 85 89 Deg.
Brightness Lv

Θ = 0.

ILED=55m

A

 315 350 nit
Uniformity 9 Points ΔY9 75% 80%
Contrast ratio CR

Θ = 0.

 700:1 1000:1 -

Reproduction of color

White

 Wx

Θ = 0.

(Center)

Normal

Viewing

Angle

TYP.

- 0.03

 0.313

TYP. + 0.03

Wy 0.329
Red Rx 0.649
Ry 0.338
Green Gx 0.323
Gy 0.627
Blue Bx 0.155
By 0.056
Color Gamut 67 72 - %
Response Time Tr+Tf - 30 35 ms
Gamma Scale 2.0 2.2 2.4

Note :

1. Viewing angle is the angle at which the contrast ratio is greater than 10. The viewing are determined for the horizontal or 3, 9 o‟clock direction and the vertical or 6, 12 o‟clock direction with respect to the optical axis which is normal to the LCD surface.

Operating Precautions:

1.Design the length of cable to connect between the connector for back-light and the converter as shorter as possible and the shorter cable shall be connected directly , The long cable between back-light and Converter may cause the Luminance of LED to lower and need a higher startup voltage.

2.The cables should be as short as possible between System Board and PCB interface.
