Specifications
Brand Name :
BOE
Model Number :
NV156FHM-N69
Certification :
ROHS
Place of Origin :
China
MOQ :
10pcs
Price :
USD60
Payment Terms :
T/T
Supply Ability :
5000pcs
Delivery Time :
1work days
Packaging Details :
35pcs/box original package

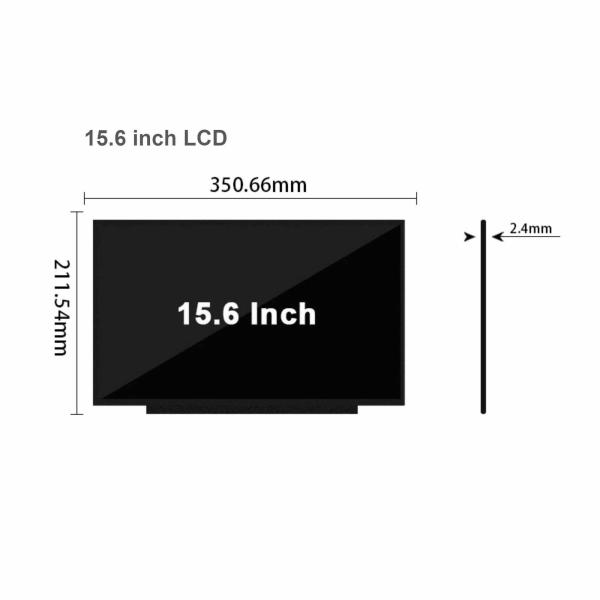

Outline Dimension :
350.66(H)×211.54(V) x 2.6(D)mm
Active Area :
344.16(H)×193.59(V)mm
Number of pixels :
1920(H) x 1080(V)
Interface Connection :
30 pins EDP
Display colors :
16.2M
Color gamut :
sRGB 100%
Description

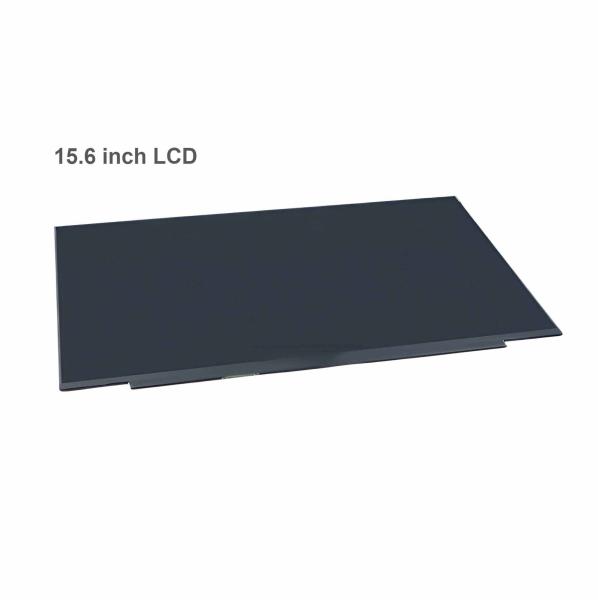

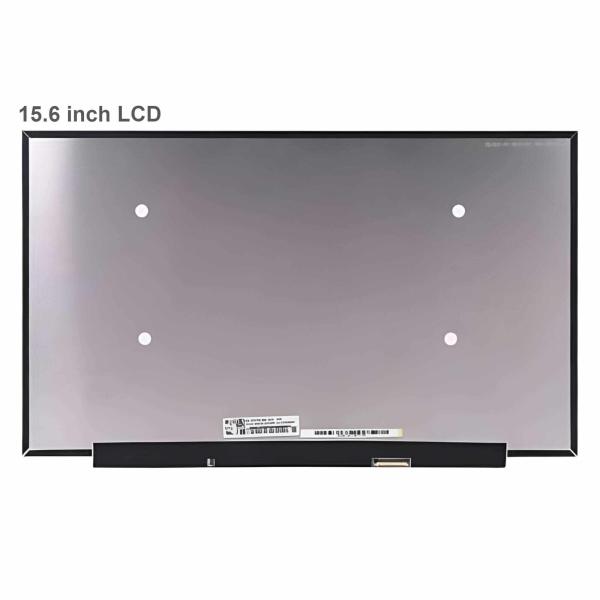

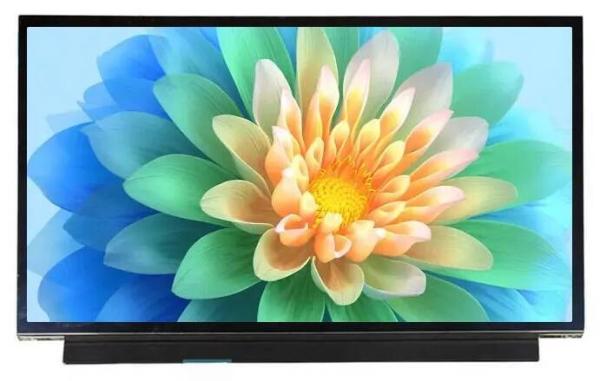

15.6 Inch Lcd Screen 1920x1080 All Viewing Angle Edp Interface 30 Pins

General Description:

Typical features of NV156FHM-N69 are: sRGB, white LED backlight, LED driver included, terminal flip-flop, matte surface, AMD FreeSync; display area size is 344.16×193.59 (W×H) mm, exterior dimensions are 350.66(W)×211.54(H)×2.6(D) mm, net weight 280g (Max.), thin screen (PCBA flat, thickness ≤ 3.2mm).

Features:

1.2 lane eDP interface with 2.7Gbps link rates

2.Thin and light weight

3.16.2M(6bits+FRC) color depth, color gamut sRGB 100%

4.Single LED lighting bar (Bottom side/Horizontal Direction)

5.Data enable signal mode

6.Side mounting frame

7.Green product (RoHS & Halogen free product)

8.On board LED driving circuit

9.Low driving voltage and low power consumption

10.On board EDID chip

11.Adjust backlight brightness with DC mode

Specifications:

Parameter Specification Unit
Active area 344.16(H) × 193.59(V) mm
Number of pixels 1920 (H) × 1080 (V) pixels
Pixel pitch 179.25(H) × 179.25(V) um
Pixel arrangement RGB Vertical stripe
Display colors 16.2M(6bits+FRC)
Color gamut sRGB 100%
Display mode Normally Black

Dimensional outline

 350.66± 0.3 (H)*204.04± 0.3(V)(W/O PCB)*2.6 (Max) 350.66±0.3(H)*211.54±0.5(V) (W/PCB)*2.6 (Max) mm
Weight 280(max) g
Surface treatment Anti-Glare
Surface hardness 3H
Back-light Bottom edge side, 1-LED lighting bar type

Power consumption

 PD : 0.75(Max.) W
PBL : 3.3(Max.) W
PTotal : 4.05(Max.) W

Absolute Maximum Ratings:

Parameter Symbol Min. Max. Unit
Power Supply Voltage

VDD

 -0.3 4.0 V
eDP input Voltage VeDP 0 2.0 V
Logic Supply Voltage

VIN

 VSS-0.3 VDD+0.3 V
Operating Temperature

TOP

 0 +50 °C
Storage Temperature

TST

 -20 +60 °C

Electrical Specifications:

Parameter Min. Typ. Max. Unit
Power Supply Voltage VDD 3.0 3.3 3.6 V
Permissible Input Ripple Voltage

VRF

-10%

VDD

-

+10%

VDD

V

BIST Control Level

High Level

 1.44

-

 3.3 V

Low

Level

 0

-

 0.27 V
Power Supply Inrush Current Inrush - - 2 A
Power Supply Current Mosaic

DD

 - - 228 mA
RGB - - 334 mA

Power Consumption

 Mosaic PM - - 0.75 W
RGB PRGB - - 1.1 W
BLU PBL - - 3.3 W
Total PTotal - - 4.05 W

Optical Specification:

Parameter Symbol Condition Min. Typ. Max. Unit

Viewing AngleRange

 Horizontal

Θ3

CR > 10

 - 85 - Deg.

Θ9

 - 85 - Deg.
Vertical

Θ12

 - 85 - Deg.

Θ6

 - 85 - Deg.
Luminance Contrast Ratio CR Θ = 0. 1000 1200 -
Luminance of White 5 Points

Yw

Θ = 0. ILED = 16.7mA

 255 300 375 cd/m2
White Luminance Uniformity 5 Points ΔY5 80 - - %
13 Points ΔY13 60 - - %
White Chromaticity

Wx

 Θ = 0. 0.283 0.313 0.343

Wy

 0.299 0.329 0.359

Reproduction of Color

 Red

Rx

Θ = 0.

Typ.-0.03

 0.646

Typ.+0.03
R 0.335
Green

Gx

 0.311

Gy

 0.624
Blue

Bx

 0.154

By

 0.059

Color Gamut(sRGB

Match@1931)

 95 100 - %
Response Time (Rising + Falling) TRT

Ta= 25C

Θ = 0.

-

 20 25 ms
Cross Talk CT Θ = 0. - - 2.0 %

Interface Connection:

Terminal Symbol Functions
Pin No. Symbol Description
1 NC No Connection
2 H_GND Ground
3 LANE1_N eDP RX Channel 1 Negative
4 LANE1_P eDP RX Channel 1 Positive
5 H_GND Ground
6 LANE0_N eDP RX Channel 0 Negative
7 LANE0_P eDP RX Channel 0 Positive
8 H_GND Ground
9 AUX_CH_P eDP AUX CH Positive
10 AUX_CH_N eDP AUX CH Negative
11 H_GND Ground
12 LCD_VCC Power Supply, 3.3V (typ.)
13 LCD_VCC Power Supply, 3.3V (typ.)
14 BIST Panel Self Test Enable
15 H_GND Ground
16 H_GND Ground
17 HPD Hot Plug Detect Output
18 BL_GND LED Ground
19 BL_GND LED Ground
20 BL_GND LED Ground
21 BL_GND LED Ground
22 BL_ENABLE LED Enable Pin(+3.3V Input)
23 BL_PWM System PWM Signal Input
24 NC No Connection
25 NC No Connection
26 BL_POWER LED Power Supply 5V-21V
27 BL_POWER LED Power Supply 5V-21V
28 BL_POWER LED Power Supply 5V-21V
29 BL_POWER LED Power Supply 5V-21V
30 NC No Connection

Handling Precautions:

1.Note that polarizers are very fragile and could be easily damaged. Do not press or scratch the surface harder than 1 HB pencil lead.

2.If the surface of the polarizer is dirty, clean it using some absorbent cotton or soft cloth.
