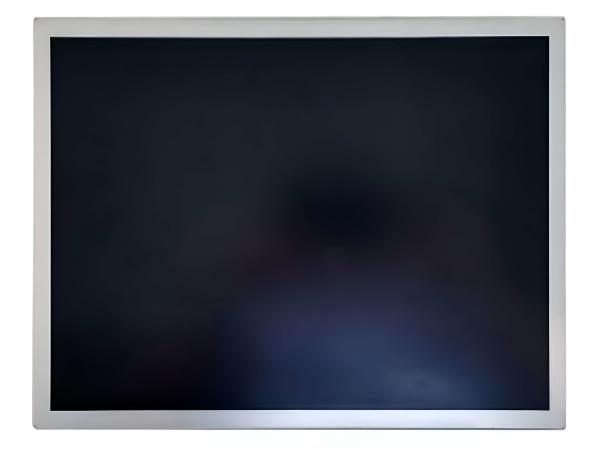

15 Inch Tft Lcd Display 1024x768 Full Viewing Angle Lvds Interface 20 Pins

General Description:

DV150X0M-N10 voltage supply 3.3V (Typ.), frame rate 60Hz, interface type 20 pins LVDS (1 ch, 8-bit), operating temperature: -20 ~ 70 °C; storage temperature: -20 ~ 70 °C.

Features:

• LVDS interface with 1 pixel / clock
• High-speed response
• Low color shift image quality
• 6-bit +FRC color depth, display 16.7M colors
• Wide viewing angle
• DE (Data Enable) only mode
• ADS technology is applied for high display quality
• RoHS compliant

Specifications:

Absolute Maximum Ratings:

The followings are maximum values which, if exceed, may cause faulty operation or damage to the unit. The operational and non-operational maximum voltage and current values are listed in Table.

Note 1 : Wet bulb temperature should be 39℃ max. and no condensation of water.

Electrical Specifications:

Note 1 : The supply voltage is measured and specified at the interface connector of LCM.The current draw and power consumption specified is for VDD=3.3V,Test Pattern of power supply current.

Note 2 : The duration of rush current is about 2ms and rising time of Power Input is 1ms(min).

Note 3 :Calculated value for reference (Input pins*VPIN × IPIN) excluding inverter loss.

Backlight Electrical Specifications:

Interface Connection:

Optical Specification:

Note :

1. Viewing angle is the angle at which the contrast ratio is greater than 10. The viewing are determined for the horizontal or 3, 9 o‟clock direction and the vertical or 6, 12 o‟clock direction with respect to the optical axis which is normal to the LCD surface.

Operating Precautions:

1.Do not apply mechanical stress or static pressure on module; Abnormal display cause by pressing some parts of module during assembly process , do not belong to product failure, the press should be agreed by two sides.

2.Do not apply mechanical stress or static pressure on module , and avoid impact, vibration and falling.

3.Acetic acid type and chlorine type materials for the cover case are not desirable because the former generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break by electro-chemical reaction.
