Transmissive HDMI TFT LCD Display 800x480 7 Inch Capacitive Touchscreen
Transmissive HDMI TFT LCD Display 800x480 7 Inch Capacitive Touchscreen
Transmissive HDMI TFT LCD Display 800x480 7 Inch Capacitive Touchscreen
Transmissive HDMI TFT LCD Display 800x480 7 Inch Capacitive Touchscreen
Transmissive HDMI TFT LCD Display 800x480 7 Inch Capacitive Touchscreen
Transmissive HDMI TFT LCD Display 800x480 7 Inch Capacitive Touchscreen
Transmissive HDMI TFT LCD Display 800x480 7 Inch Capacitive Touchscreen
Transmissive HDMI TFT LCD Display 800x480 7 Inch Capacitive Touchscreen
Transmissive HDMI TFT LCD Display 800x480 7 Inch Capacitive Touchscreen
Transmissive HDMI TFT LCD Display 800x480 7 Inch Capacitive Touchscreen
Specifications
Brand Name :
INNOLUX
Model Number :
H070VG50-C1
Certification :
ROHS
Place of Origin :
China
MOQ :
10pcs
Price :
USD43
Payment Terms :
T/T
Supply Ability :
3000pcs
Delivery Time :
5-8 work days
Packaging Details :
10pcs/box
Outline Dimension :
165.30×121.00×7.75mm
Active Area :
154.08×85.92mm
Number of Pixels :
800RGB×480
Luminance :
250cd/㎡
Interface Type :
HDMI(Display) USB(touch)
Pixel pitch :
0.1926×0.179mm
Description

7 Inch For 800x480 HDMI Signal Tft Lcd Display With Capacitive Touch Screen

General Description:

1.Resolution:800X480, 7 inches LCD Backlight Color TFT LCD monitor with touch function.
2.Works perfectly for Raspberry Pi 3 2 Model B B win 7/8/10 systems.
3.Package includes: 7 inch Touch LCD Display x1, HDMI cable x1, USB cable x1.

Specifications:

Item of general informationContentsUnit
LCD Display Size(Diagonal)7inch
LCD Display TypeTFT/TRANSMISSIVE

-

LCD Display ModeNormally White

-

Recommended Viewing Direction12o’clock
Gray inversion Direction6o’clock
Module size (W×H×T)165.30×121.00×7.75mm
Active area (W×H)154.08×85.92mm
Number of pixels(Resolution)800RGB×480pixel
Pixel pitch (W×H)0. 1926×0. 179mm
Color Pixel ArrangementRGB Stripe

-

LCD Driver ICTBD

-

Module Interface TypeHDMI(Display)&USB(touch)

-

System SupportAndroid/Win7/Win8/Win10
Module Input voltage5.0VV
Module Power consumptionTBDmW
Color Numbers16.7M

-

Backlight TypeWhite LED

-


Ctp Characteristics:

Item of CTP characteristics

Specification

Unit

Panel TypeGlass Cover + Glass Sensor

-

Resolution800 × 480pixel
Surface Hardness≥6H

-

Transparency＞82%

-

Driver ICTBD

-

Interface TypeUSB

-

Support Points5

-

Sampling Rate20~100Hz
Supply voltage3.3


Optical Specification:

Item of electro-optical characteristics

Symbol

Condition

Min.

Typ.

Max.

Unit

Response timeTr+Tf

θ=0

∅=0
Ta=25℃

-2540ms
Contrast RatioCR-320--
Luminance uniformityWHITE-80-%
Surface LuminanceLv-250-cd/m2





CIE (x, y) chromaticity

WhiteWhite x



θ=0

∅=0
Ta=25℃

-0.302-



-

White y-0.338-
RedRed x-0.606-
Red y-0.325-
GreenGreen x-0.303-
Green y-0.567-
BlueBlue x-0. 147-
Blue y-0. 161-


Viewing angle range

∅=90(12 o’clock)

CR ≥ 10

-60-deg
∅=270(6 o’clock)-70-deg
∅=0(3 o’clock)-60-deg
∅=180(9 o’clock)-60-deg
NTSC ratio---50-%

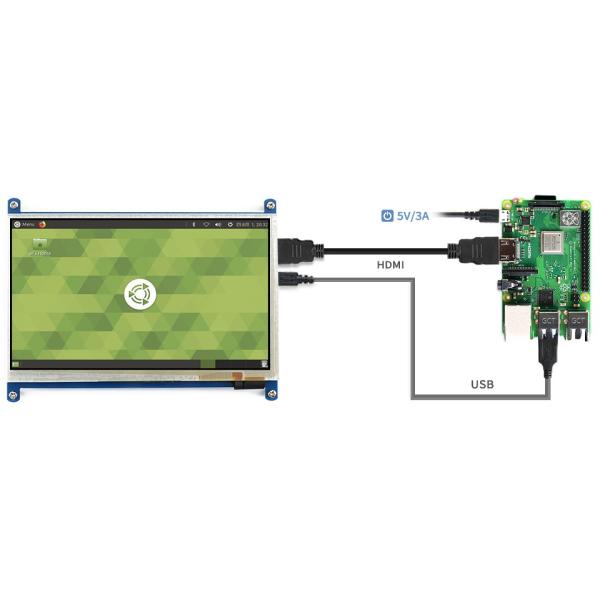

Connection Examples:

Working With Raspberry Pi 4
Transmissive HDMI TFT LCD Display 800x480 7 Inch Capacitive Touchscreen

Working With Raspberry Pi 3B+
Transmissive HDMI TFT LCD Display 800x480 7 Inch Capacitive Touchscreen

Working With Raspberry Pi Zero W
Transmissive HDMI TFT LCD Display 800x480 7 Inch Capacitive Touchscreen

Working With Mini PC
Transmissive HDMI TFT LCD Display 800x480 7 Inch Capacitive Touchscreen

Handling Precautions:

1.Do not leave the module operation or storage in Strong light . Strong light exposure causes degradation of polarizer and color filter.
2.Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that treatment persons are connected to ground through wrist band etc.
