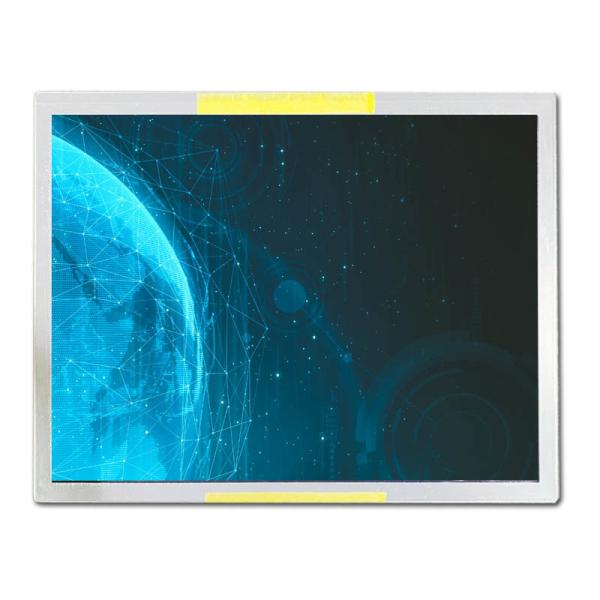

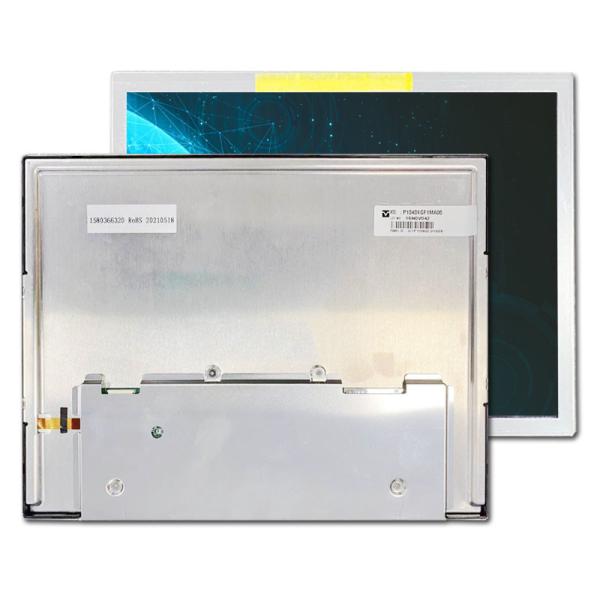

Outdoor TIANMA Panel P1040XGF1MA00 10.4 Inch LCD Panel 1300 Nits
Outdoor TIANMA Panel P1040XGF1MA00 10.4 Inch LCD Panel 1300 Nits
Outdoor TIANMA Panel P1040XGF1MA00 10.4 Inch LCD Panel 1300 Nits
Outdoor TIANMA Panel P1040XGF1MA00 10.4 Inch LCD Panel 1300 Nits
Specifications
Brand Name :
TIANMA
Model Number :
P1040XGF1MA00
Place of Origin :
Shenzhen, China
Certification :
ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
MOQ :
1 piece
Price :
Please contact us for latest price
Packaging Details :
Customized
Delivery Time :
1~7 working days
Payment Terms :
T/T, L/C, Credit card, PayPal
Supply Ability :
500,0 pieces per day
Size (inch) :
10.4
Resolution :
1024*768
Luminance(nits) :
1300
Active Area (W*H) :
210.432×157.824
Outline Dimension (W*H*T) :
230.00x180.20x9.50
Operating Temperature :
-30℃～80℃
Storage Temperature :
-30℃～85℃
Viewing Direction :
IPS
Viewing angle(RLUD) :
88/88/88/88
Interface :
LVDS 20
LED Lifetime (hrs) :
100K
Contrast Ratio :
1000
Description

10.4 inch High Brightness 1300 nits P1040XGF1MA00 TIANMA Display Panel for Outdoor Applications

Product Information:

BrandTIANMA
Model P/NP1040XGF1MA00
Diagonal Size10.4"
Panel Typea-Si TFT-LCD, LCM
Resolution1024(RGB)×768, XGA 123PPI
Pixel FormatRGB Vertical Stripe
Active Area210.432(W)×157.824(H) mm
Bezel Opening213.432(W)×160.82(H) mm
Outline Size230(W)×180.2(H) ×9.8(D) mm
SurfaceAntiglare
Brightness1300 cd/m² (Typ.)
Contrast Ratio1000:1 (Typ.) (TM)
Viewing Angle88/88/88/88 (Typ.)(CR≥10)
Display ModeSFT, Normally Black, Transmissive
Best View onSymmetry
Response Time35 (Typ.)(Tr+Td)
Display Colors262K/16.7M 50% NTSC
Lamp Type6S4P WLED , 100K hours , Without Driver
Frequency60Hz
Touch ScreenWithout
Panel Weight430g (Typ.)
Applicationoutdoor applications, construction or agriculture market
Signal InterfaceLVDS (1 ch, 6/8-bit) , 20 pins Connector
Input Voltage3.3V (Typ.)
EnvironmentOperating Temp.: -30 ~ 80 °C ; Storage Temp.: -40 ~ 85 °C ; Vibration Level: 6.8G (66.64 m/s²)

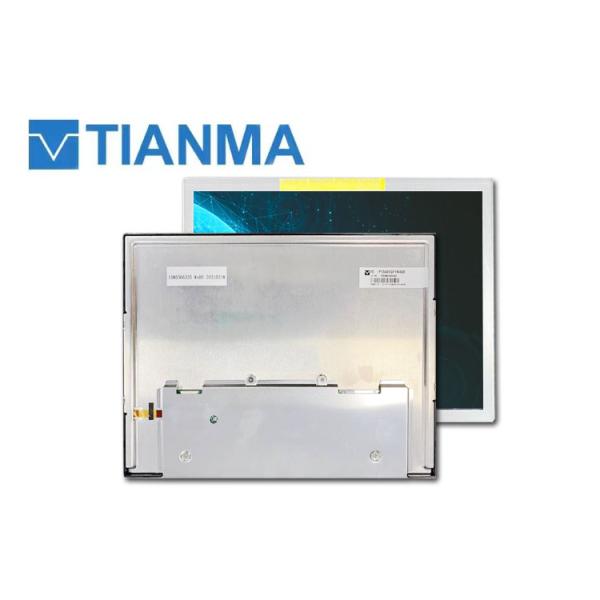

Outdoor TIANMA Panel P1040XGF1MA00 10.4 Inch LCD Panel 1300 Nits

Features:

One of the best features of the TIANMA display panel is its in-plane switching (IPS) technology, which allows for a superior viewing direction that provides clear and accurate visuals from any angle. This makes it ideal for use in various applications where multiple people need to view the screen at once, such as in public displays, automotive applications, and more.

With a contrast ratio of 1000, the TIANMA display panel delivers sharp and vivid images with bright colors and deep blacks. Whether you're using it for gaming, watching videos, or displaying graphics, you can be sure that the colors will pop and the images will look crisp and clear.

The TIANMA display panel is also designed to withstand extreme temperatures, making it perfect for use in automotive applications or outdoor displays. With an operating temperature range of -30℃～80℃, you can be sure that this display will function reliably in even the harshest environments.

Overall, the TIANMA display panel is a high-quality and reliable option for those looking for a high-brightness LCD that delivers stunning visuals and reliable performance. Whether you're using it in a vehicle LCD display or a public display, you can be sure that the TIANMA display panel will meet all your needs and exceed your expectations.

Applications:

Product Application Occasions

Our P1040XGF1MA00 display panel is a versatile product that can be used in a variety of settings. Here are just a few examples of product application occasions:

  • Medical devices
  • Industrial equipment
  • Gaming machines
  • Automotive displays
  • Ruggedized laptops
Product Application Scenarios

Our P1040XGF1MA00 display panel is also suitable for a variety of product application scenarios. Here are some examples:

  • Outdoor use: With an operating temperature range of -30℃～80℃, our display panel can be used in a variety of outdoor settings.
  • Medical settings: Our display panel is certified to meet ANSI/AAMI ES60601-1-2 standards, making it suitable for use in medical devices.
  • Industrial settings: Our display panel is certified to meet IEC 60068 standards, making it suitable for use in industrial equipment.
  • Gaming machines: With a high luminance of 1300 nits, our display panel is perfect for use in gaming machines where high brightness is essential.
Outdoor TIANMA Panel P1040XGF1MA00 10.4 Inch LCD Panel 1300 Nits
Outdoor TIANMA Panel P1040XGF1MA00 10.4 Inch LCD Panel 1300 Nits

Packing and Shipping:

Product Packaging:

  • Each TIANMA Display Panel will be packaged in a protective anti-static bag.
  • The anti-static bag will be placed in a sturdy cardboard box.
  • The cardboard box will be sealed with adhesive tape to ensure secure shipment.

Shipping:

  • Shipping will be handled by a reputable carrier, such as DHL, FedEx or UPS.
  • The TIANMA Display Panel will be shipped from our warehouse within 24 hours of receiving the order.
  • A tracking number will be provided to the customer to track the shipment.
