G150XJE-E03 INNOLUX Display 1024*768 15inch Industrial TFT Display 70k LED Lifespan
G150XJE-E03 INNOLUX Display 1024*768 15inch Industrial TFT Display 70k LED Lifespan
G150XJE-E03 INNOLUX Display 1024*768 15inch Industrial TFT Display 70k LED Lifespan
G150XJE-E03 INNOLUX Display 1024*768 15inch Industrial TFT Display 70k LED Lifespan
G150XJE-E03 INNOLUX Display 1024*768 15inch Industrial TFT Display 70k LED Lifespan
G150XJE-E03 INNOLUX Display 1024*768 15inch Industrial TFT Display 70k LED Lifespan
G150XJE-E03 INNOLUX Display 1024*768 15inch Industrial TFT Display 70k LED Lifespan
G150XJE-E03 INNOLUX Display 1024*768 15inch Industrial TFT Display 70k LED Lifespan
Specifications
Brand Name :
INNOLUX
Model Number :
G150XJE-E03
Place of Origin :
Shenzhen, China
Certification :
ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
MOQ :
1 piece
Price :
Please contact us for latest price
Packaging Details :
Customized
Delivery Time :
1~7 working days
Payment Terms :
T/T, L/C, Credit card, PayPal
Supply Ability :
500,0 pieces per day
Size (inch) :
15
Resolution :
1024*768
Brightness (cd/m²) :
450
Active Area (W*H) :
304.1*228.1
Outline Dimension (W*H*T) :
326.5*253.5*9.6
Viewing angle(RLUD) :
88/88/88/88
Viewing Direction :
IPS
Operating Temperature :
-20℃～70℃
Storage Temperature :
-30℃～70℃
Contrast Ratio :
2500
Interface :
EDP 30
LED Lifetime (hrs) :
70k
Description

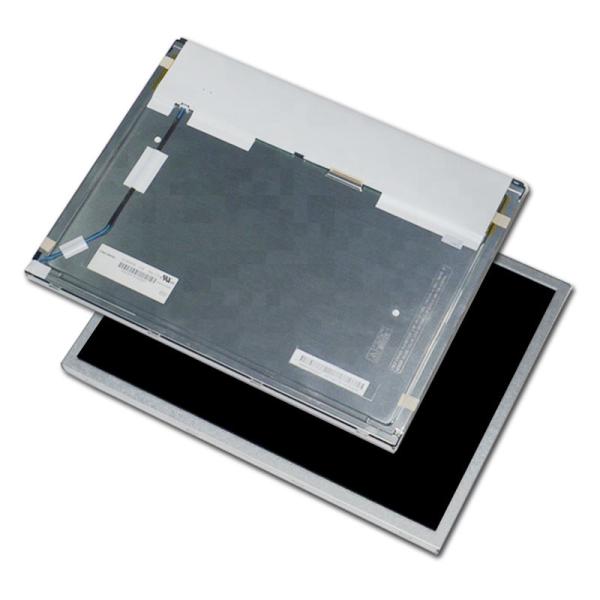

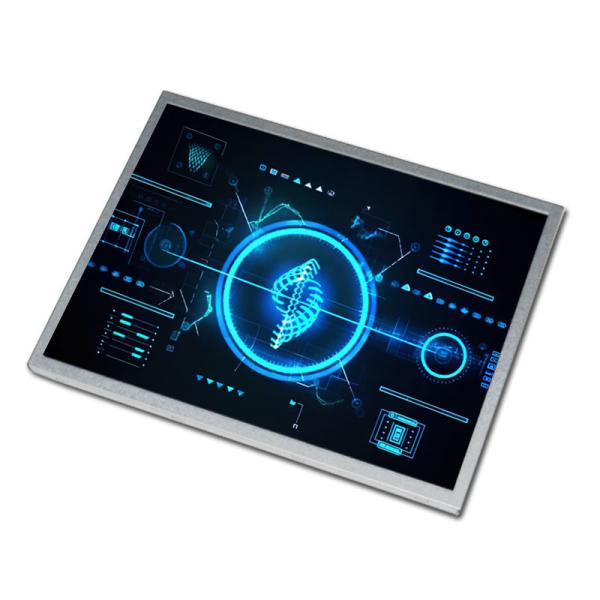

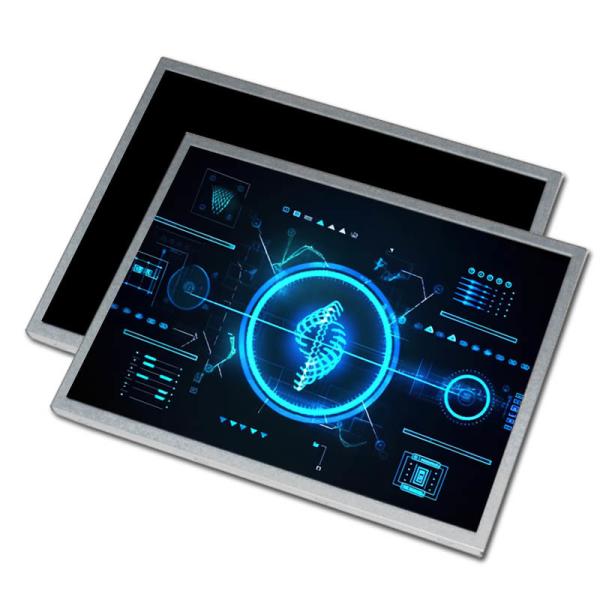

15inch G150XJE-E03 INNOLUX 1024*768 LCD Display Panel 70k LED Lifespan Industrial TFT Display

Product Description:

Innolux G150XJE-E03 Application Details
Basic Info : Panel Brand INNOLUX Panel Model G150XJE-E03
Diagonal Size 15.0" Application Industrial,Gaming
Panel Type a-Si TFT-LCD , LCM
Reliability : Operating Temp. -20 ~ 70 °C Storage Temp. -30 ~ 70 °C
RoHS State RoHS Vibration Rating 1.5G (14.7 m/s²)
Specific Features : WLED Backlight,Life≥70K hours,With LED Driver, 6/8bit ,Matte
Innolux G150XJE-E03 Mechanical Details
Pixel Features : Pixel Format 1024(RGB)×768, XGA Dot Pitch (W×H) 0.099×0.297 mm
Configuration RGB Vertical Stripe Pixel Pitch (W×H) 0.297×0.297 mm [85PPI]
Mechanical Size : Active Viewing 304.128(W)×228.096(H) mm Bezel Area 307.4×231.3 mm (H×V)
Outline Dim. 326.5×253.5 mm (H×V) Outline Depth 9.1/9.6 (Typ./Max.) mm
Outline Features : Form Factor Flat Rectangle Orientation Landscape type
Aspect Ratio 4:3 (H:V) Shape Style
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Other Detail : Weight 942/980g (Typ./Max.) Surface Antiglare, Hard coating (3H)
Innolux G150XJE-E03 Optical Details
Basic Information : Brightness 450 cd/m² (Typ.) Contrast Ratio 2500 : 1 (Typ.) (Transmissive)
Viewing Angle 88/88/88/88(Typ.)(CR≥10) Optical Mode NPVA, Normally Black, Transmissive
Viewing Direction Symmetry Response Time 16/7 (Typ.)(Tr/Td) (ms)
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Color Numbers 262K/16.7M (6-bit / 8-bit)
Color Temperature 6485K Uniformity 1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamut : NTSC Ratio 72% sRGB 92% coverage
Adobe RGB 71% coverage DCI-P3 74% coverage
Rec.2020 54% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

G150XJE-E03 INNOLUX Display 1024*768 15inch Industrial TFT Display 70k LED Lifespan

Features:

  • Product Name: INNOLUX LCD Display
  • Long LED Lifetime (hrs): 70K
  • Interface: EDP 30
  • IPS tft lcd
  • Luminance(nits): 450

This ips tft lcd display from INNOLUX is a military lcd with a long LED lifetime of 70K hours. It has an EDP 30 interface and an IPS viewing direction. The display panel factory recommends a storage temperature of -20℃ to 70℃. It also has a luminance of 450 nits.

The INNOLUX LCD Display also has a wide viewing angle of 88 degrees in all directions (RLUD) providing a clear and vivid display from any angle. With its high contrast ratio of 2500, this display produces sharper and more detailed images with deeper blacks and brighter whites.

The active area of the INNOLUX LCD Display measures 304.1*228.1, providing ample space for displaying images, videos, and other types of content. This makes it suitable for various industrial and military applications where high-quality display performance is critical.

This high brightness LCD display is designed to meet the rigorous demands of military and industrial applications that require reliable and long-lasting performance. With its advanced features and robust design, the INNOLUX LCD Display is an ideal choice for use in harsh environments.

Overall, the INNOLUX LCD Display is a top-of-the-line product that offers exceptional image quality and reliability. Its wide viewing angle, high contrast ratio, and IPS viewing direction make it an excellent choice for professionals in the industrial and military sectors.

Applications:

The G150XJE-E03 is an excellent choice for a variety of scenarios. Its luminance of 450 nits and contrast ratio of 2500 make it suitable for use in bright or dimly lit environments. Its IPS viewing direction and viewing angle of 88/88/88/88 ensure that the display is clear and easy to read from any angle. The active area of 304.1*228.1 makes it a perfect choice for displaying detailed information or images.

This innolux lcd module is also designed with an EDP display interface, making it compatible with a wide range of devices. Its industrial touch screen monitor application makes it perfect for use in manufacturing, automation, and other industrial settings where a durable and reliable display is essential. Whether you need to display data, graphics, or videos, the G150XJE-E03 is the perfect solution for your needs.


G150XJE-E03 INNOLUX Display 1024*768 15inch Industrial TFT Display 70k LED Lifespan

G150XJE-E03 INNOLUX Display 1024*768 15inch Industrial TFT Display 70k LED Lifespan

Support and Services:

INNOLUX provides technical support for their LCD Display products to ensure that customers have a smooth and seamless experience. Their technical support team is made up of highly trained professionals who are dedicated to providing timely and effective solutions to any issues that may arise.

In addition to technical support, INNOLUX also offers a range of services to help customers get the most out of their LCD Display products. These services include:

  • Customization services
  • Testing and verification services
  • Repair and maintenance services
  • Product training and education
  • Supply chain services

By providing these services, INNOLUX is able to ensure that their LCD Display products meet the unique needs of each customer and perform optimally throughout their lifecycle.

Packing and Shipping:

Product Packaging:

  • INNOLUX LCD Display
  • Protective foam inserts
  • User manual

Shipping:

  • Shipped via FedEx, UPS, DHL
  • Tracking number provided upon shipment
  • Estimated delivery time: 3-5 business days
