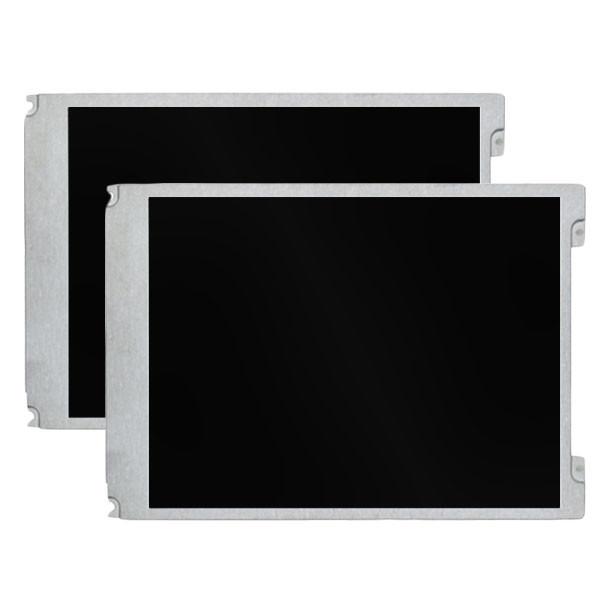

M084GNS1 R1 8.4 Inch IVO LCD Original Industrial TFT Module
M084GNS1 R1 8.4 Inch IVO LCD Original Industrial TFT Module
M084GNS1 R1 8.4 Inch IVO LCD Original Industrial TFT Module
M084GNS1 R1 8.4 Inch IVO LCD Original Industrial TFT Module
M084GNS1 R1 8.4 Inch IVO LCD Original Industrial TFT Module
M084GNS1 R1 8.4 Inch IVO LCD Original Industrial TFT Module
M084GNS1 R1 8.4 Inch IVO LCD Original Industrial TFT Module
M084GNS1 R1 8.4 Inch IVO LCD Original Industrial TFT Module
Specifications
Brand Name :
IVO
Model Number :
M084GNS1 R1
Place of Origin :
Shenzhen, China
Certification :
ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
MOQ :
1 piece
Price :
Please contact us for latest price
Packaging Details :
Customized
Delivery Time :
1~7 working days
Payment Terms :
T/T, L/C, Credit card, PayPal
Supply Ability :
500,0 pieces per day
Size (inch) :
8.4
Resolution :
800*600 Pixels
Brightness :
350 cd/m²
Active Area (W*H) :
170.4 *127.8
Outline Dimension (W*H*T) :
203 *142.5*5.7
Viewing Angle :
80/80/80/80
Viewing Direction :
IPS
Interface :
LVDS
Operating Temp :
-20 ~ 70 °C
Storage Temperature :
-30 ~ 80 °C
LED Lifetime :
50k
Contrast Ratio :
600
Description

M084GNS1 R1 8.4 inch IVO Industrial TFT LCD Original Diplay TFT Module

Product Description:

IVO M084GNS1 R1 Application Details
Basic Detail : Panel Brand IVO Model Name M084GNS1 R1
Panel Type a-Si TFT-LCD , LCM Another Name
Panel Size 8.4” Designed For Industrial
Maximum Ratings : OP Temperature -20 ~ 70 °C ST Temperature -30 ~ 80 °C
RoHS RoHS Vibration Level
Features : WLED Backlight,Life>=50K hours,With LED Driver,U/D,L/R Reverse,6/8 bit,Matte
IVO M084GNS1 R1 Optical Details
Basic Information : Luminance 350 cd/m²(Min.) Contrast Ratio 600:1 (Typ.) (Transmissive)
Good View at 12 o'clock Response Speed 16 (Typ.)(Tr+Td)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
Color Performance : Chromaticity Wx:0.310; Wy:0.330 Display Colors 262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Temperature 6638K White Variation 1.33/1.43 (Typ./Max.)(9 points)
1931 Color Gamlt : NTSC Ratio 49% sRGB 69% coverage
Adobe RGB 52% coverage DCI-P3 51% coverage
Rec.2020 37% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
IVO M084GNS1 R1 Mechanical Details
Pixel Features : Number of Pixel 800(RGB)*600, SVGA Arrangement RGB Vertical Stripe
Dot Pitch (mm) 0.071*0.213 (H*V) Pixel Pitch (mm 0.213*0.213 (H*V) [119PPI]
Physical Size : Active Viewing(mm) 170.4(H) *127.8(V) Bezel Area (mm) 173.4(H) *131.2(V)
Outline Dim. (mm) 203(H) *142.5(V) Outline Depth 5.7±0.5
Outline Features : Form Style Flat Rectangle Outline Shape
Aspect Ratio 4:3 (H:V) Orientation Landscape type
Holes & Brackets : Face mounting holes (4 pcs) on left, right bezel
Other Features : Weight 200/220g (Typ./Max.) Surface Antiglare

Features:

The viewing direction of this industrial TFT is IPS, providing clear and vivid images from any angle. The viewing angle of this industrial TFT is 80 degrees in all directions (RLUD), ensuring that it can be viewed from any position without distortion. With a resolution of 800 by 600 pixels, this industrial TFT provides a clear and detailed image that is perfect for any industry.

The IVO industrial TFT LCD, model number M084GNS1 R1, is the perfect display solution for a variety of industrial applications. Whether you need a display for a manufacturing plant, medical device, or transportation system, this industrial TFT is up to the task. With its slim design, clear image quality, and wide viewing angles, this industrial TFT is sure to meet your needs.

Investing in an industrial TFT is a smart choice for any company that needs a reliable and durable display solution. The IVO industrial TFT LCD, model number M084GNS1 R1, is the perfect choice for those looking for an industrial TFT that can withstand harsh environments and provide clear and consistent images. With its IPS viewing direction, wide viewing angles, and high resolution, this industrial TFT is sure to meet your needs.

Overall, the IVO industrial TFT LCD, model number M084GNS1 R1, is an excellent choice for anyone looking for an industrial TFT display solution. Its slim design, clear image quality, and wide viewing angles make it the perfect choice for a variety of industrial applications. Invest in an industrial TFT today and experience the benefits of a reliable and durable display solution.

Applications:

This industrial TFT display is suitable for a wide range of applications, including industrial control systems, medical equipment, and vehicle LCD displays. It can be used as an industrial LCD monitor in manufacturing plants, warehouses, and other industrial settings where a durable and reliable display is required.

The IVO M084GNS1 R1 is also ideal for use in vehicles, such as construction equipment, agricultural machinery, and commercial vehicles. This vehicle LCD display is designed to withstand the harsh conditions often found in these environments, including temperature extremes, vibration, and dust.

With its rugged design, high-quality construction, and versatile functionality, the IVO M084GNS1 R1 is an excellent choice for anyone in need of an industrial TFT display, vehicle LCD display, or industrial LCD monitor. Contact us today to learn more about this exceptional product.

Support and Services:

Our Product Technical Support and Services for IVO include:

- Technical assistance in case of product malfunction or issues

- Remote troubleshooting and problem resolution

- Software updates and maintenance

- Product training and education

- Warranty and repair services

- On-site technical support and consultation (available upon request)
