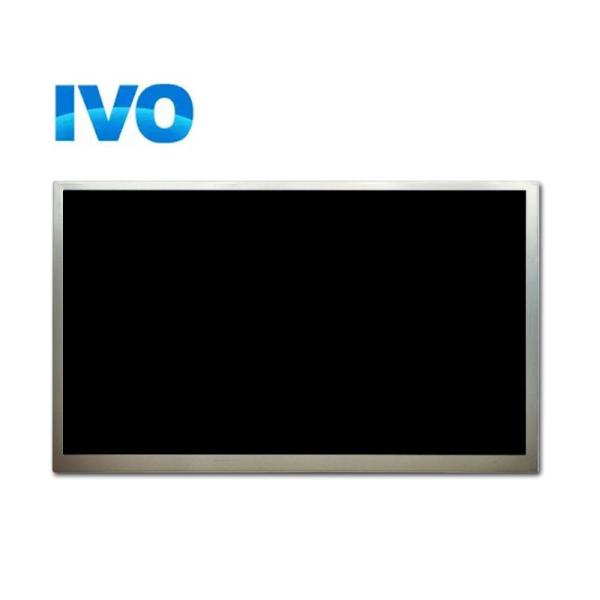

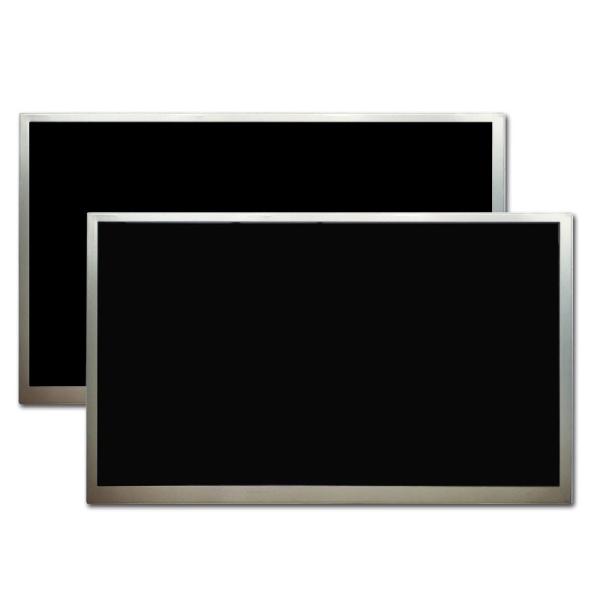

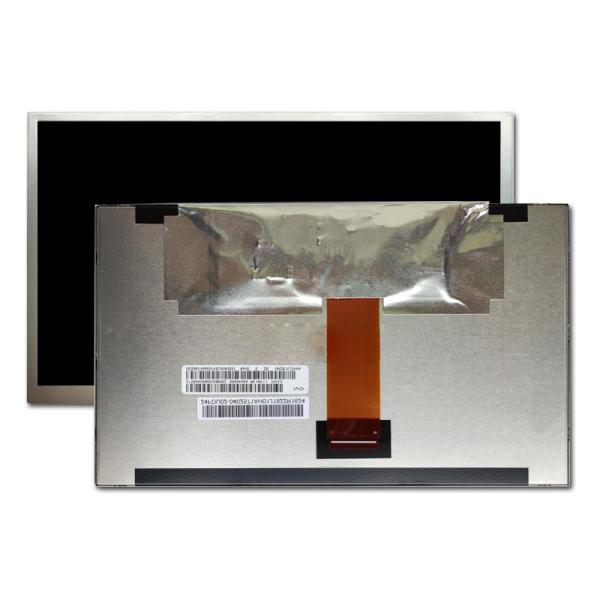

M090AWA6 R0 IVO LCD Panel High Brightness LCD Display 9 Inch 1280×720
M090AWA6 R0 IVO LCD Panel High Brightness LCD Display 9 Inch 1280×720
M090AWA6 R0 IVO LCD Panel High Brightness LCD Display 9 Inch 1280×720
M090AWA6 R0 IVO LCD Panel High Brightness LCD Display 9 Inch 1280×720
M090AWA6 R0 IVO LCD Panel High Brightness LCD Display 9 Inch 1280×720
M090AWA6 R0 IVO LCD Panel High Brightness LCD Display 9 Inch 1280×720
M090AWA6 R0 IVO LCD Panel High Brightness LCD Display 9 Inch 1280×720
M090AWA6 R0 IVO LCD Panel High Brightness LCD Display 9 Inch 1280×720
Specifications
Brand Name :
IVO
Model Number :
M090AWA6 R0
Place of Origin :
Shenzhen, China
Certification :
ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
MOQ :
1 piece
Price :
Please contact us for latest price
Packaging Details :
Customized
Delivery Time :
1~7 working days
Payment Terms :
T/T, L/C, Credit card, PayPal
Supply Ability :
500,0 pieces per day
Size (inch) :
9
Resolution :
1280*720
Luminance(nits) :
1000
Active Area (W*H) :
198.72×111.78
Outline Dimension (W*H*T) :
212.2×127.5×11
Operating Temperature :
-30 ~85 °C
Storage Temperature :
-40 ~ 90 °C
Viewing angle(RLUD) :
80/80/80/80
Viewing Direction :
IPS
Interface :
LVDS 40
LED Lifetime (hrs) :
30k
Contrast Ratio :
1000
Description

9 inch M090AWA6 R0 IVO Outdoor High Brightness LCD Display for Industrial Screen with 1280×720 Resolution

Product Information:

Brand IVO
Model P/N M090AWA6 R0
Diagonal Size 9.0"
Panel Type a-Si TFT-LCD, LCM
Resolution 1280(RGB)×720, WXGA 163PPI
Pixel Format RGB Vertical Stripe
Active Area 198.72(W)×111.78(H) mm
Bezel Opening 202.02(W)×115.78(H) mm
Outline(mm) 212.2 × 127.5 × 11 (H×V×D)
Treatment Hard coating (3H)
Luminance 1000 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10)
Response 30 (Typ.)(Tr+Td) ms
Good View at Symmetry
Work Mode IPS, Normally Black, Transmissive
Color Depth 16.7M 70% NTSC
Backlight 9S3P WLED , 30K hours , No Driver
Mass 328g (Max.)
Used for Outdoor high brightness; Automotive display
Refresh Rate 60Hz
Touchscreen Without
Signal Type LVDS (1 ch, 8-bit) , 40 pins FPC
Voltage Supply 3.3V (Typ.)
Max. Ratings Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²)

M090AWA6 R0 IVO LCD Panel High Brightness LCD Display 9 Inch 1280×720

Features:

The IVO LCD Display boasts an LVDS 40 interface, which enables fast and reliable data transfer between devices, making it ideal for industrial applications. Its durable construction ensures that it can withstand even the harshest of conditions, with a storage temperature range of -40 ~ 90 °C.

With a contrast ratio of 1000, this industrial LCD monitor delivers crisp and clear images, allowing for easy viewing of important data and visual content. Its 1280*720 resolution ensures high-quality images, making it perfect for use in various industries, including manufacturing, transportation, and military applications.

The IVO LCD Display is designed to meet the needs of various industrial applications, with a robust and reliable design that ensures it can withstand even the toughest environments. Its exceptional performance, combined with its high-quality construction, ensures that it is a reliable and cost-effective solution for industrial display needs.


M090AWA6 R0 IVO LCD Panel High Brightness LCD Display 9 Inch 1280×720

M090AWA6 R0 IVO LCD Panel High Brightness LCD Display 9 Inch 1280×720

Support and Services:

Our IVO LCD Display product comes with a comprehensive technical support and service package to ensure that our customers have a smooth and hassle-free experience. This includes:

  • 24/7 technical support
  • On-site installation and training
  • Repair and maintenance services
  • Remote diagnostics and troubleshooting
  • Software updates and upgrades
  • Customization and integration services

Our team of experienced technicians and engineers are dedicated to providing prompt and efficient support to our customers, helping them to maximize the performance and reliability of our LCD display product.

Packing and Shipping:

Product Packaging:

  • IVO LCD Display
  • Power cable
  • HDMI cable
  • Quick start guide
