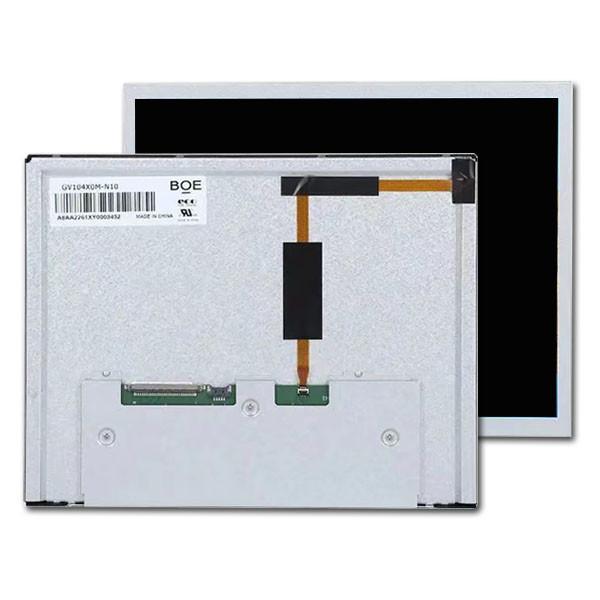

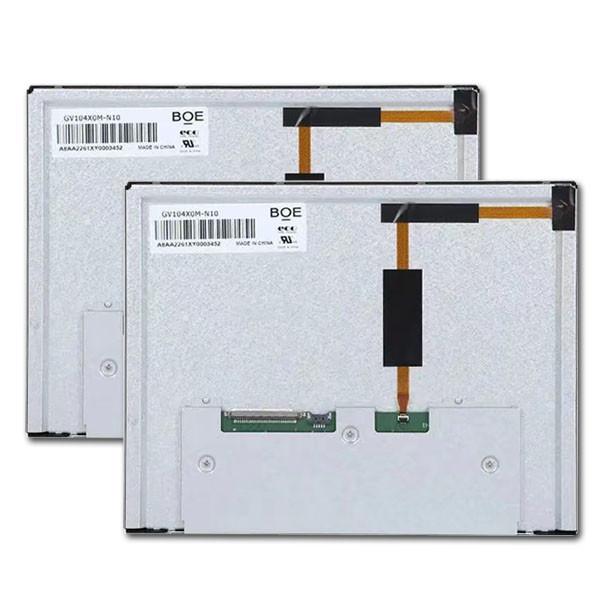

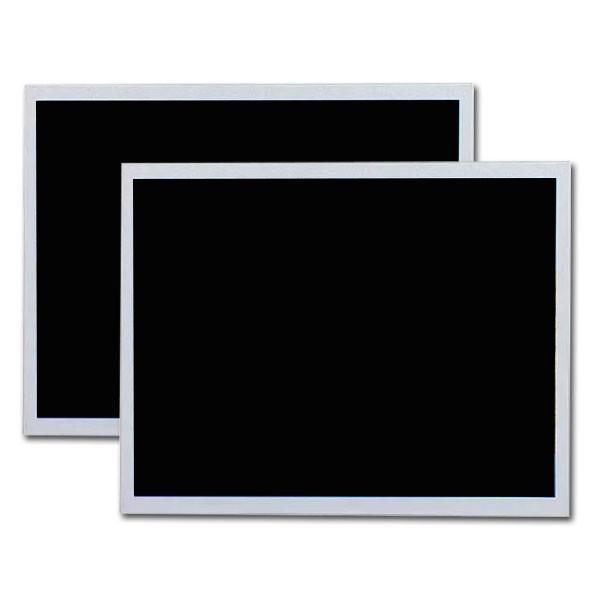

10.4 Inch GV104X0M-N10 BOE LCD Panels with Brightness 450nit Resolution 1024×768 Display
10.4 Inch GV104X0M-N10 BOE LCD Panels with Brightness 450nit Resolution 1024×768 Display
10.4 Inch GV104X0M-N10 BOE LCD Panels with Brightness 450nit Resolution 1024×768 Display
10.4 Inch GV104X0M-N10 BOE LCD Panels with Brightness 450nit Resolution 1024×768 Display
10.4 Inch GV104X0M-N10 BOE LCD Panels with Brightness 450nit Resolution 1024×768 Display
10.4 Inch GV104X0M-N10 BOE LCD Panels with Brightness 450nit Resolution 1024×768 Display
10.4 Inch GV104X0M-N10 BOE LCD Panels with Brightness 450nit Resolution 1024×768 Display
10.4 Inch GV104X0M-N10 BOE LCD Panels with Brightness 450nit Resolution 1024×768 Display
Specifications
Brand Name :
BOE
Model Number :
GV104X0M-N10
Certification :
ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Please contact us for latest price
Payment Terms :
T/T, L/C, Credit card, PayPal
Supply Ability :
500,0 pieces per day
Delivery Time :
1~7 working days
Packaging Details :
Customized
Size (inch) :
10.4
Brightness (cd/m²) :
450
Resolution :
1024×768
Active Area (W*H) :
210.432 × 157.824
Outline Dimension (W*H*T) :
230×180.2×10.5
Operating Temperature :
-30 ~ 80 °C
Storage Temperature :
-30 ~ 80 °C
Viewing angle(RLUD) :
85/85/85/85
Viewing Direction :
IPS
Contrast Ratio :
1100
LED Lifetime (hrs) :
50K
Interface :
LVDS
Description

10.4 Inch GV104X0M-N10 BOE LCD Panels with Brightness 450nit Resolution 1024×768 Display

BOE GV104X0M-N10 Application Details
Basic Info : Panel Brand BOE Panel Model GV104X0M-N10
Diagonal Size 10.4” Application Industrial
Panel Type a-Si TFT-LCD , LCM Model Alias -
Reliability : Operating Temp. -30 ~ 80 °C Storage Temp. -30 ~ 80 °C
RoHS State RoHS Vibration Level
Specific Features : WLED Backlight
BOE GV104X0M-N10 Mechanical Details
Pixel Features : Pixel Format 1024(RGB)×768, XGA Dot Pitch 0.0685×0.2055 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.2055×0.2055 mm (H×V) [123PPI]
Mechanical Size : Display Area (mm) 210.432×157.824 mm (H×V) Bezel Opening -
Outline Features : Form Factor Flat Rectangle Orientation Landscape type
Aspect Ratio 4:3 (H:V) Shape Style
BOE GV104X0M-N10 Optical Details
Basic Information : Brightness - Contrast Ratio 1100:1 (Typ.) (Transmissive)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Optical Mode ADS, Normally Black, Transmissive
Viewing Direction Symmetry Response Time 30 (Typ.)(Tr+Td) ms
Color Performance : Chromaticity - Color Numbers 16.7M (8-bit)
1931 Color Gamut : NTSC Ratio 69% sRGB 89% coverage
Adobe RGB 71% coverage DCI-P3 71% coverage
Rec.2020 52% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
