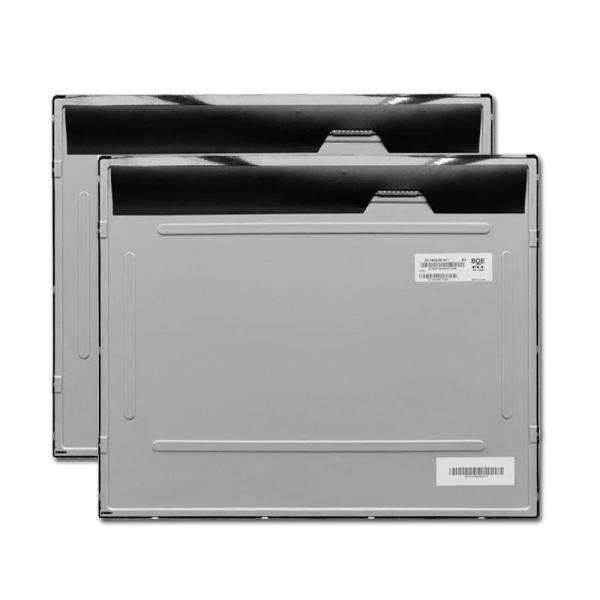

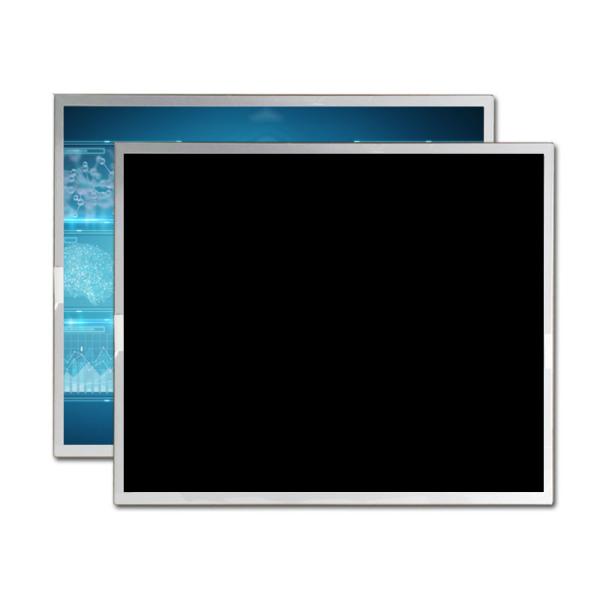

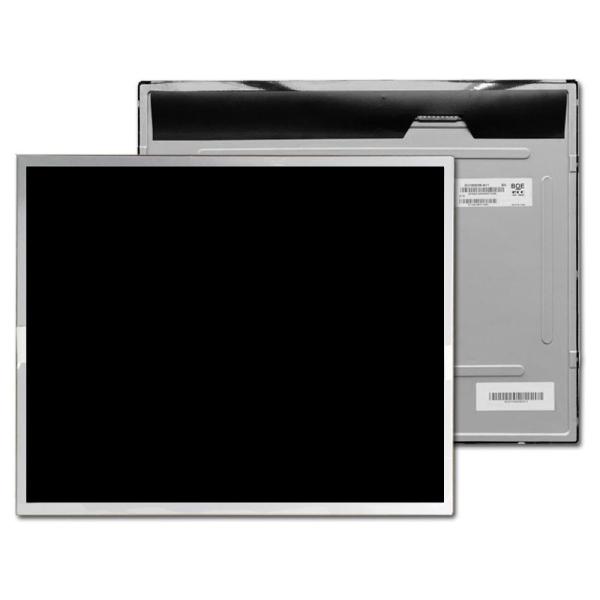

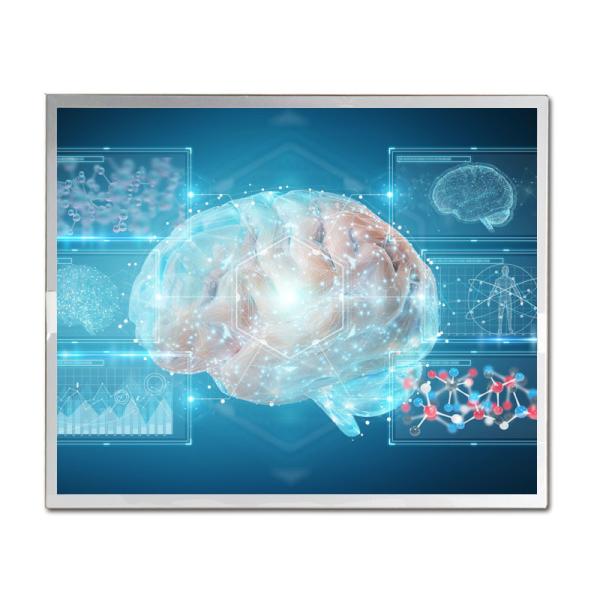

BOE DV190E0M-N11 IPS LCD Screen 250 Nits 19 Inch TFT LCD Display
BOE DV190E0M-N11 IPS LCD Screen 250 Nits 19 Inch TFT LCD Display
BOE DV190E0M-N11 IPS LCD Screen 250 Nits 19 Inch TFT LCD Display
BOE DV190E0M-N11 IPS LCD Screen 250 Nits 19 Inch TFT LCD Display
BOE DV190E0M-N11 IPS LCD Screen 250 Nits 19 Inch TFT LCD Display
BOE DV190E0M-N11 IPS LCD Screen 250 Nits 19 Inch TFT LCD Display
BOE DV190E0M-N11 IPS LCD Screen 250 Nits 19 Inch TFT LCD Display
BOE DV190E0M-N11 IPS LCD Screen 250 Nits 19 Inch TFT LCD Display
Specifications
Brand Name :
BOE
Model Number :
DV190E0M-N11
Certification :
ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Please contact us for latest price
Payment Terms :
T/T, L/C, Credit card, PayPal
Supply Ability :
500,0 pieces per day
Delivery Time :
1~7 working days
Packaging Details :
Customized
Size (inch) :
19
Brightness (cd/m²) :
250
Resolution :
1280×1024
Active Area (W*H) :
374.784×299.827
Outline Dimension (W*H*T) :
396×324×10.4
Operating Temperature :
0 ~ 50 °C
Storage Temperature :
-20 ~ 60 °C
Viewing angle(RLUD) :
89/89/89/89
Viewing Direction :
IPS
Contrast Ratio :
1000
LED Lifetime (hrs) :
30K
Interface :
LVDS 30
Description

19 inch BOE DV190E0M-N11 IPS LCD Screen with 1280×1024 Pixels Resolution 250nit TFT LCD Display

Brand BOE
Model P/N DV190E0M-N11
Diagonal Size 19.0"
Panel Type a-Si TFT-LCD, LCM
Resolution 1280(RGB)×1024, SXGA 86PPI
Pixel Format RGB Vertical Stripe
Active Area 374.784(W)×299.827(H) mm
Bezel Opening 376.78(W)×303.0(H) mm
Outline Dim. 396(H)×324(V) ×10.4(D) mm
Treatment Antiglare (Haze 25%), Hard coating (3H)
Luminance 250 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
View Direction Symmetry
Response Time 14 (Typ.)(G to G)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Operating Mode HADS, Normally Black, Transmissive
Support Color 16.7M 72% NTSC
Light Source WLED [24S2P] , 30K hours , W/O Driver
Weight 1.52Kgs (Typ.)
Designed For Indusrial; Digital signage
Frame Rate 60Hz
Touch Panel Without
Interface Type LVDS (2 ch, 8-bit) , 30 pins Connector
Power Supply 5.0V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
